Leave to dry for 1 or 2 days or even longer in case of low ambient temperatures.

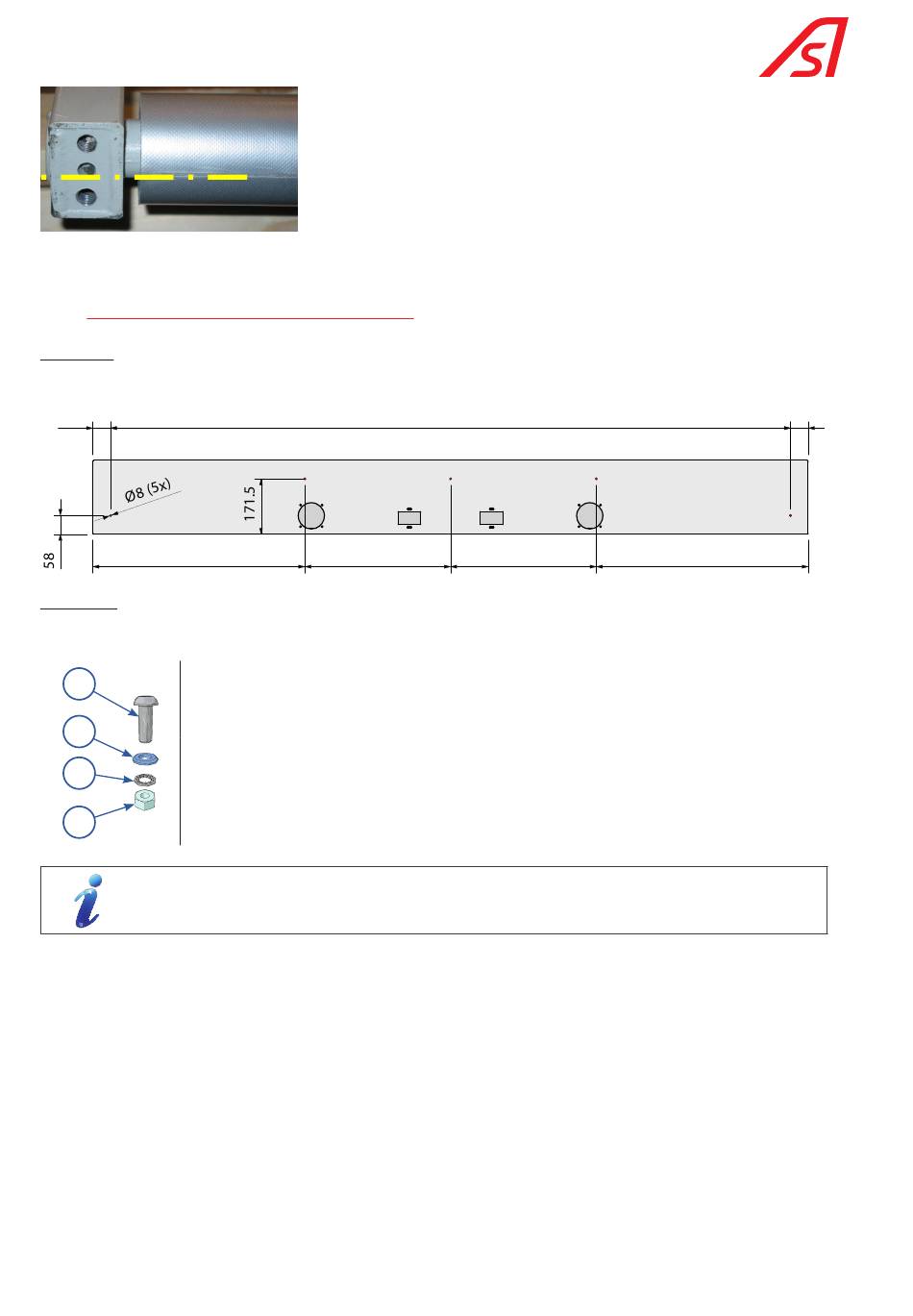

5.4. FIXING THE CANOPIES (OPTION)
1st phase:
Drill 5 holes of 8 mm dia. on both sides of the housing..
55
655
2nd phase:
Fix the canopy to the bodywork.
D
B
C
A
The screws above must be used to fix two canopies.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
450
A A4 stainless steel nut DIN934 M6
B Flat stainless steel washer DIN125 M6
C Serrated stainless steel washer DIN6798 JZ
D Hollow curved hexagon socket stainless steel
head screw M6x16
2100
450
10
10
10
10
55
655
