Automatic Systems TRS373 Technical Manual page 20

p. 20/48
I/O
MEMORY
OPERATION
OPTION
TEST
DATE & TIME
SERIAL PORT

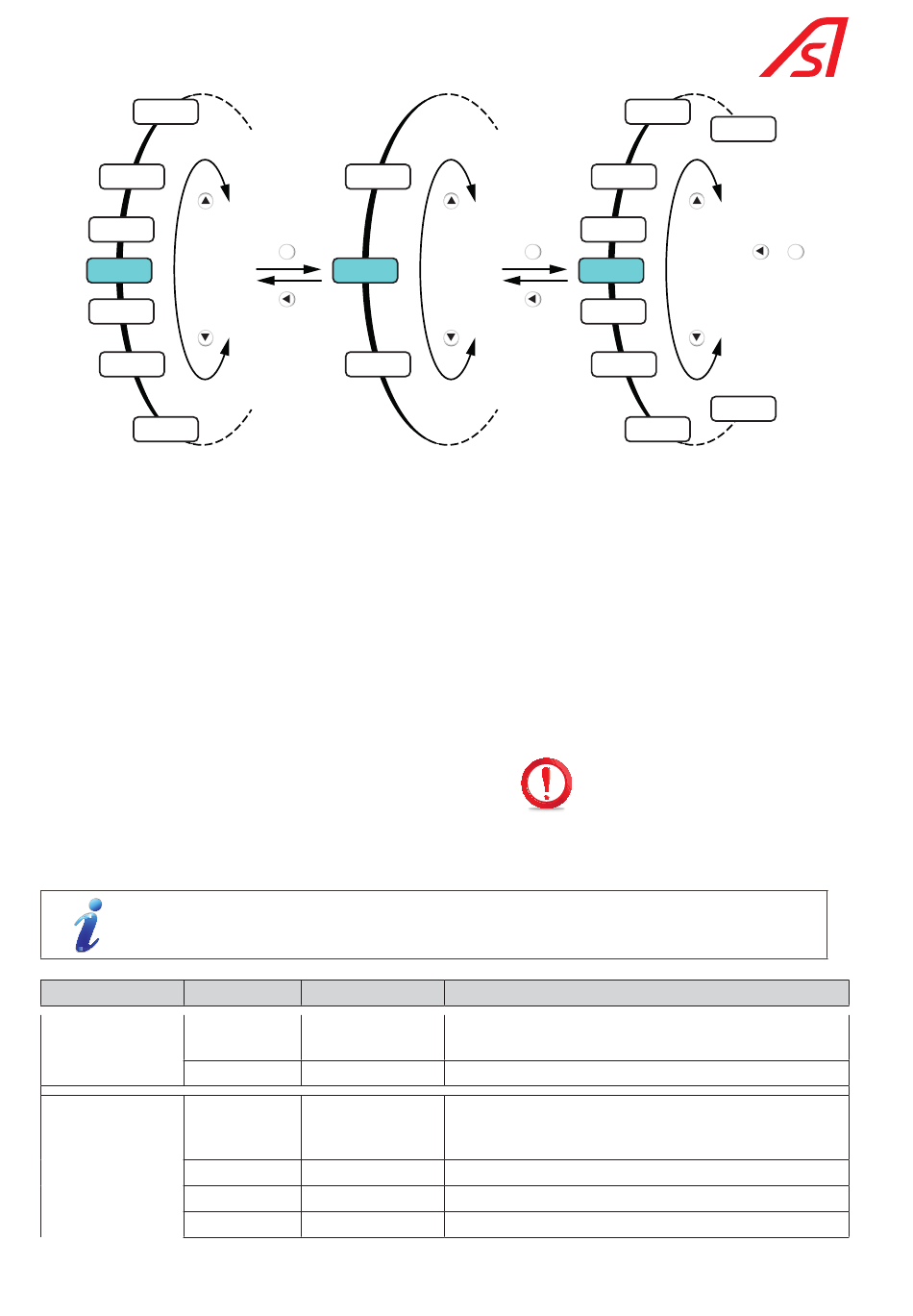

The Menus are displayed on the first
line, in upper case starting from the
first character of the LCD.
Press and hold  or  for a few
seconds to leave the PRDSTD screen
and access the other menus.
The control parameters have been factory set according to the ordered configuration.
The most commonly used functions are given in bold.
GROUP
PRDSTD - TRS360
OPERATION
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
READER NO

NO PASS LIMIT
The parameters are displayed in lower
case with the first letter of each word
on the first line in upper case and
with a one-character indent. The
parameter unit is displayed at the
end of the top line if there is one.
Parameter Value
S o f t w a r e 0E 00 04 00 00
Version
OK key
Status
No Diag
Power Up
Power Down

CODE
Fig. 12
Description
Version number of the program implemented in the
control board.
Badge reader simulation (direction A then B).
Display of the last 100 events, with the date and time of
their occurrence (access previous events with  and
keys).
No diagnostic.
Power ON
Power OFF
? NO PASS LIMIT
33
? NO PASS LIMIT
? NO PASS LIMIT
32
? NO PASS LIMIT
31
RETURN
? NO PASS LIMIT
VALIDATION
30
? NO PASS LIMIT
29
? NO PASS LIMIT
28
? NO PASS LIMIT
? NO PASS LIMIT
27
A question mark (?) preceding the
parameter indicates that it is ready
to be modified.
The current parameter value appears
on the second line.
An asterisk (*) below a parameter
indicates the value shown is the
default value (factory set).
Press the OK key to validate a
modification.
Store modifications to avoid losing
them in the event of a power outage
(MEMORY  Save  MEM1 or MEM2)
1000

OR
OK
0
p. 20/48
