3.9.3. Conversion from operating mode 5 to mode 4
Unless specified otherwise, the turnstile is factory configured in operating mode 5 (unlocked in case of power
failure, cf. Ch.3.2.
The procedure for switching to operating mode 4 (locked in case of power failure) has been shown below:
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
).

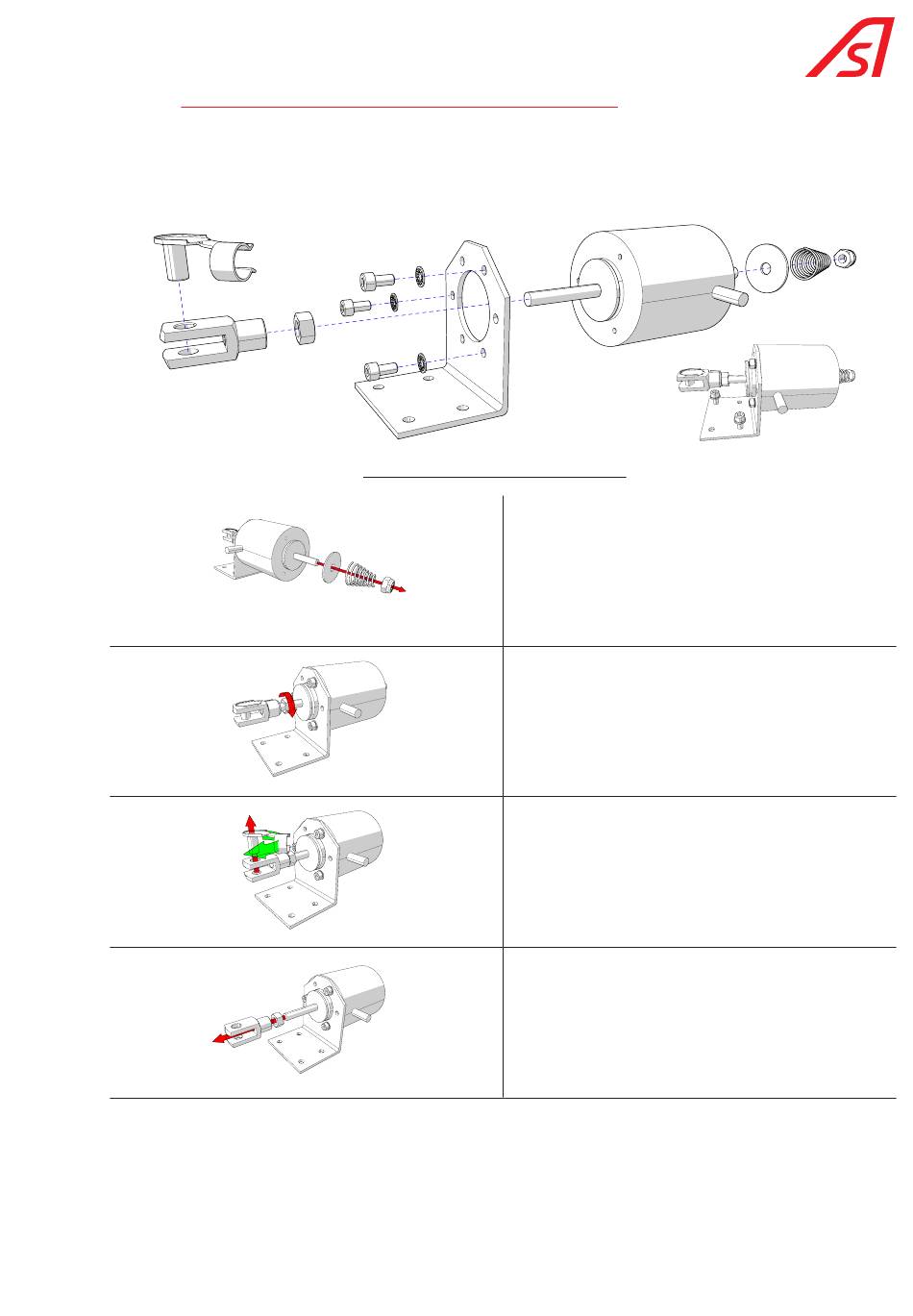

Fig. 9 Electromagnet assembly for operating mode 5.
Remove:
• The lock nut
• The conical spring (mode 5 spring)
• The large washer
Unscrew the hex connector nut.
Remove the connector connector clip.
Remove the connector and the hex nut.
