4.4.4. Fixed comb assembly

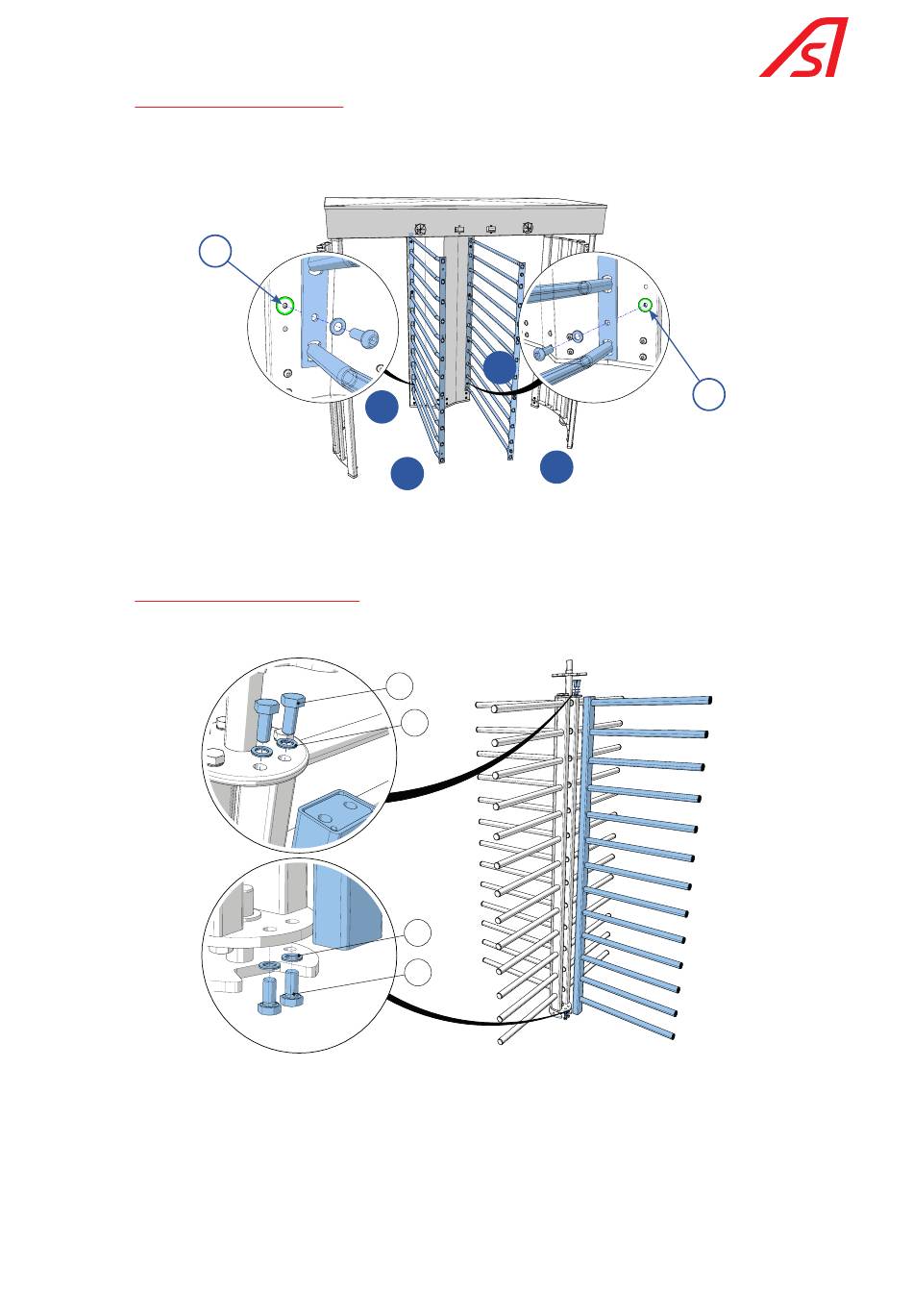

Fixed combs are connected to the central uprights. They must be installed offset against each other. This means
the fixed comb on the AB side is fixed at the bottom (I), and that on the CD side is fixed at the top (S).
Once the fixed combs have been assembled, the central uprights can be fixed correctly to the ground.
4.4.5. Mobile comb assembly
Mobile combs are fixed to the rotor via the upper flange and centred via the lower flange on the lower axis.
Like the fixed combs, mobile combs must be installed offset against each other and in the same way as fixed
combs.
Since the latter must be able to rotate freely in the passageway, the mobile comb should be mounted (in relation to
the fixed comb) so the bars of the mobile comb pass through holes between the bars of the fixed comb.
