3.6. MOBILE ARMS
For each direction of passage, the rotating obstacle consists of 2 x 4 mobile arms positioned at 90° to one another.
Tubes that are closest to the ground may be equipped with heel guards (optional) to prevent feet from being caught
between the lowest tube and the ground.
3.7. FIXED ARMS
For each of the 2 passageways, the fixed arm limits access to one half of the turnstile.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01

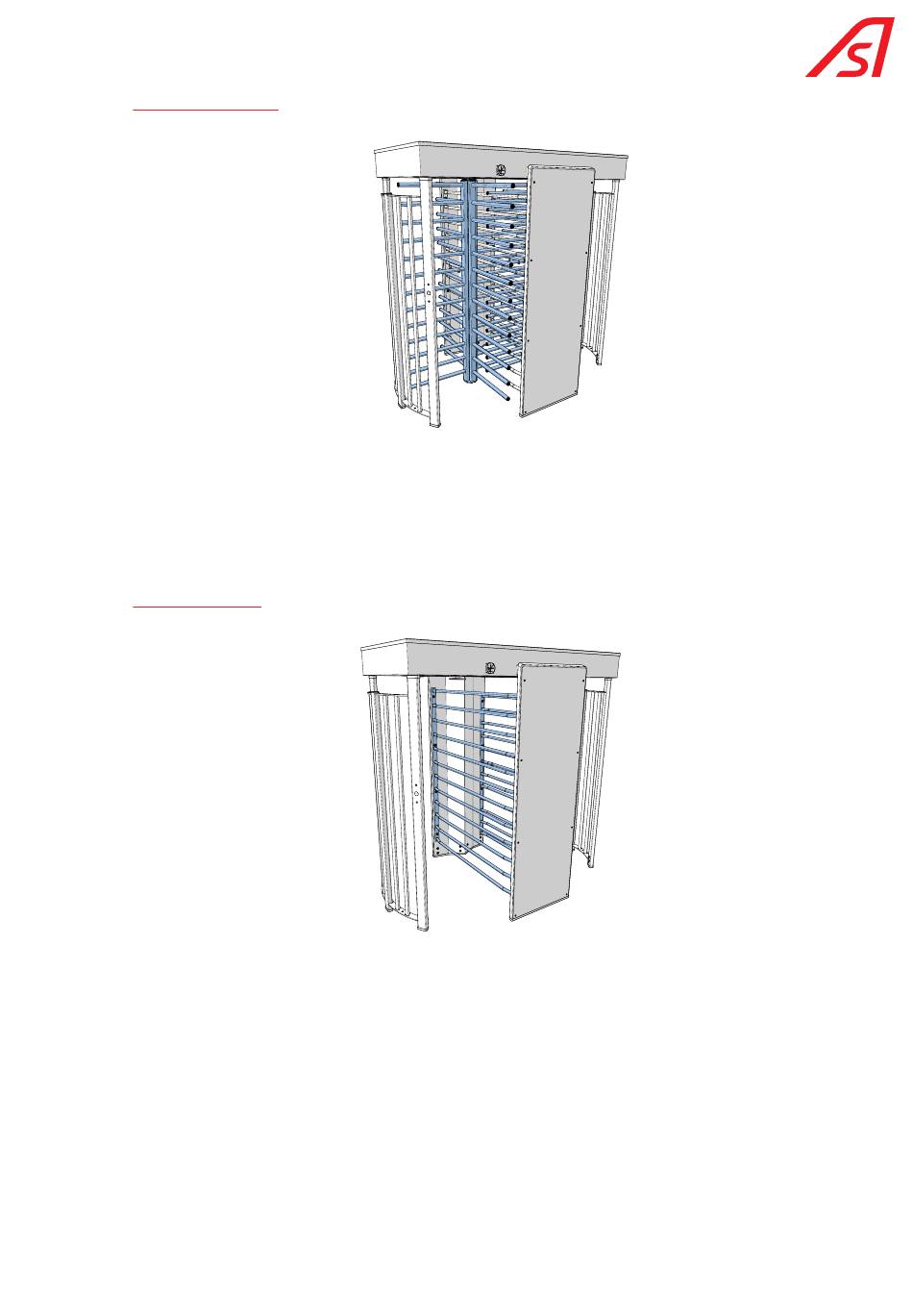

Fig. 5
