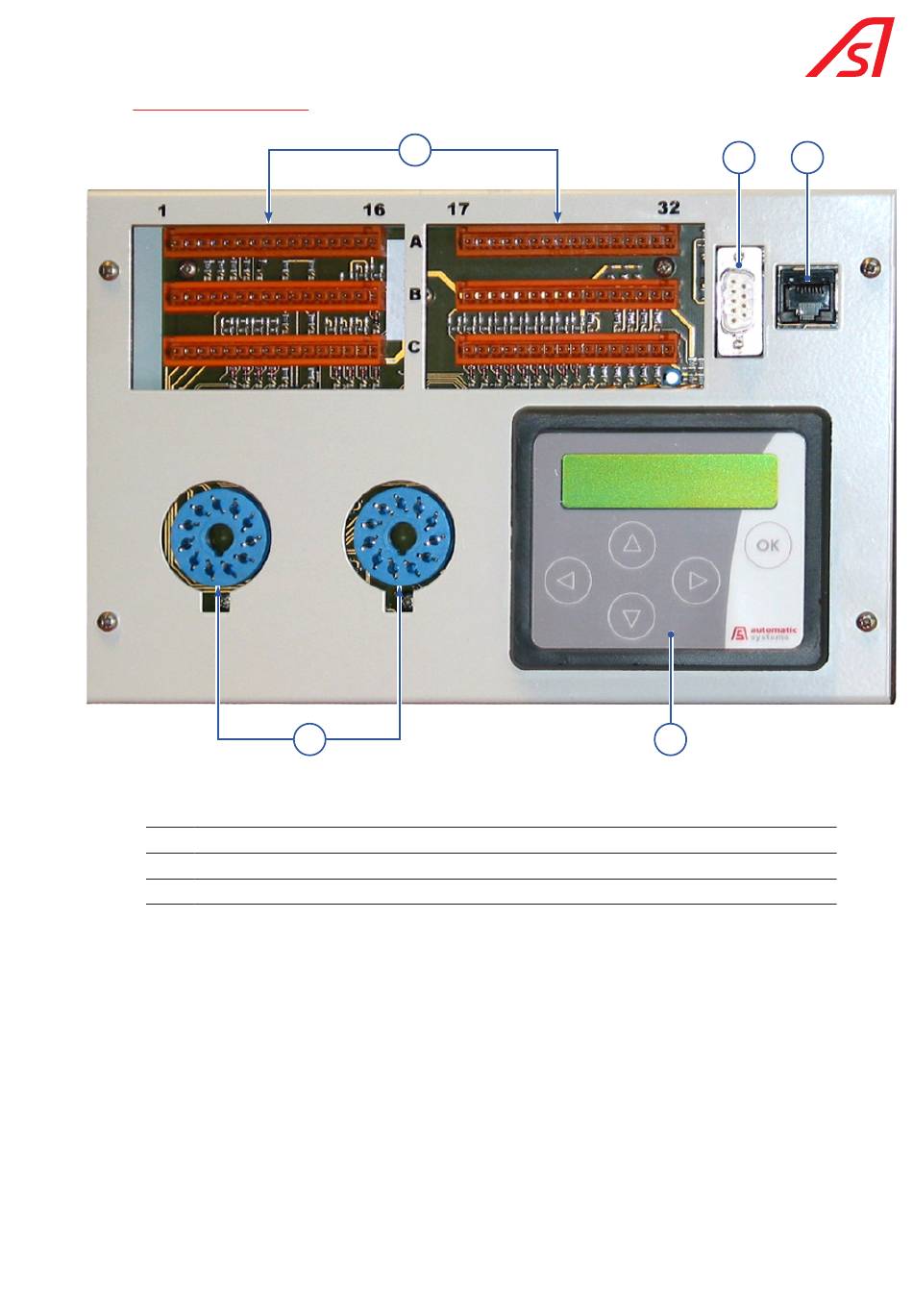

3.11. CONTROL BOARD
1 Input/Output terminal block (see terminal assignments, ch. Electrical diagrams)
2 DB9 (CAN BUS) connector
3 RJ45 (RS232) connector
4 Presence sensor connectors (not used for the TRS)
5 Display
The control board serves as the interface between users and the turnstile. It manages all operations performed by the
turnstile, including the optional ones.
Navigation in the menus of the display is based on an architecture with pull-down menus with 3 levels: GROUPS 
PARAMETERS  VALUES.
The  keys can be used to navigate from one level to another (press and hold a few seconds to go from the default
screen to another menu); navigation within menus is possible using the  keys, and parameter changes can be
validated by pressing the OK key.
Note: A simplified version of the menus has been shown below. For a detailed description of all functions, their
parameters, etc. please refer to the control board manual (available on request).
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
1
4
Fig. 11
2 3
5
