Automatic Systems

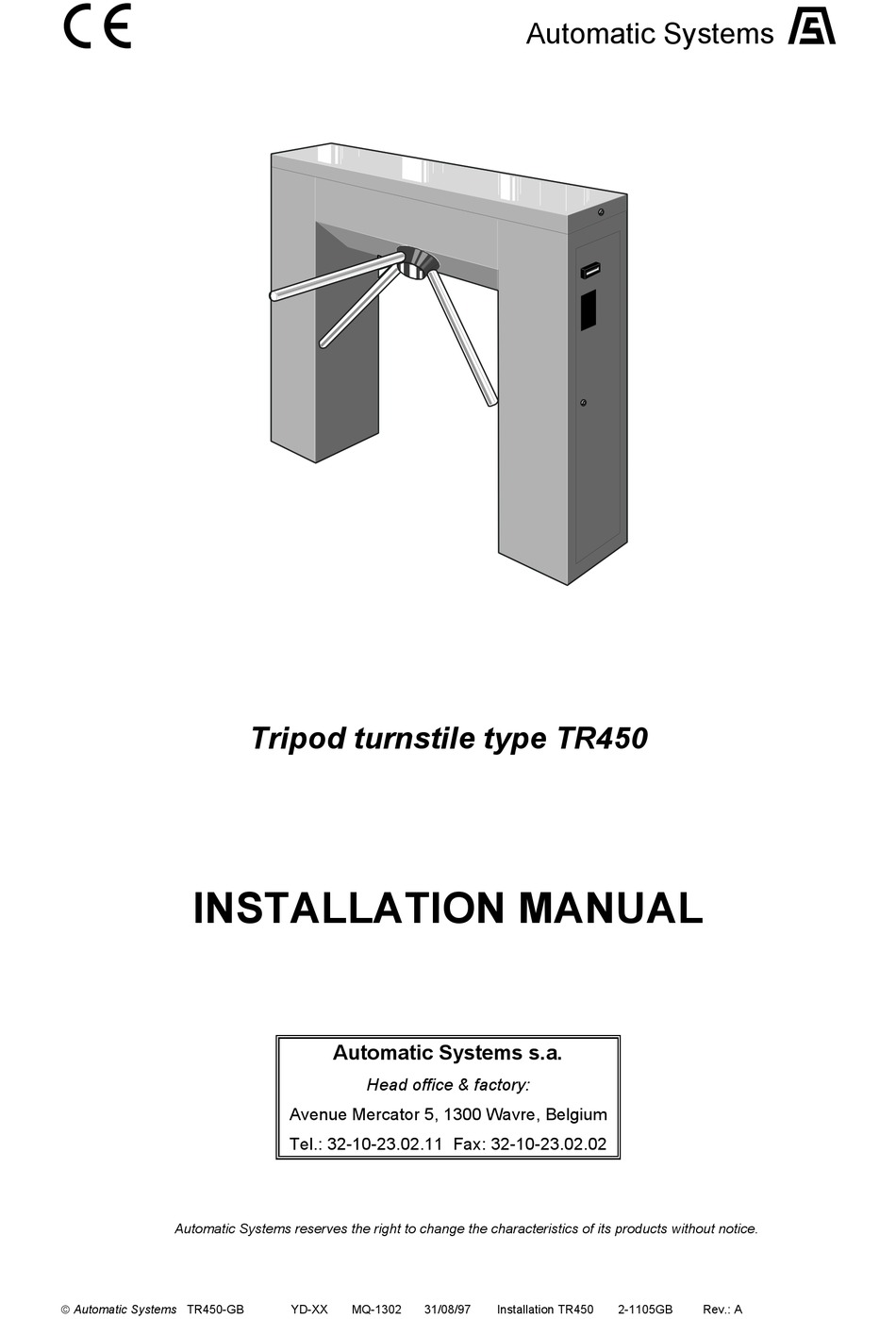

Tripod turnstile type TR450
INSTALLATION MANUAL
Automatic Systems s.a.
Head office & factory:
Avenue Mercator 5, 1300 Wavre, Belgium
Tel.: 32-10-23.02.11 Fax: 32-10-23.02.02
Automatic Systems reserves the right to change the characteristics of its products without notice.
Automatic Systems TR450-GB
YD-XX
MQ-1302
31/08/97
Installation TR450
2-1105GB
Rev.: A
Advertisement
Table of Contents
Related Manuals for Automatic Systems TR450
Summary of Contents for Automatic Systems TR450
- Page 1 INSTALLATION MANUAL Automatic Systems s.a. Head office & factory: Avenue Mercator 5, 1300 Wavre, Belgium Tel.: 32-10-23.02.11 Fax: 32-10-23.02.02 Automatic Systems reserves the right to change the characteristics of its products without notice. Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97...
-
Page 2: Table Of Contents
11 3.7.2. Dismounting the tripod arms ................p. 11 3.7.3. Removing the unit ................... p. 12 3.8. Scrapping the equipment....................p. 12 ANNEX: ELECTRICAL DIAGRAM p. 2/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A... -
Page 3: Introduction
Automatic Systems INTRODUCTION We thank you for having chosen the electrical tripod turnstile type TR450 designed and manufactured by Automatic Systems. We are confident that your purchase will fully meet your requirements. However, in order to obtain maximum satisfaction from this equipment for a maximum period of time, we strongly advise you to read this manual carefully before installing the equipment. -
Page 4: General
Conventionally and as a general rule, the user will be considered in direction "A" when the turnstile is at his right-hand side, in direction "B" when the turnstile is at his left-hand side. p. 4/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97... -
Page 5: Switching Off The Equipment
In case of power failure • Depending on which control mode the tripod is set up for, the tripod turnstile type TR450 can release the walkway in either direction or in both, when the electrical power supply is interrupted. This unlocking principle in an emergency situation is called the "anti-panic" device. Refer to paragraph [3.2. -
Page 6: Overall Dimensions And Installation Plan
Power supply: 230V single-phase + earth (3G x 2.5) Control wiring according to specifications FIXING BRACKET -/0445/011 ° 15 EXPANSION BOLT B15/30 -/3413/000 (model recommended) Min. 55mm Fig. 3 p. 6/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A... -
Page 7: Installation
• Unlock and open the front doors (4:1) and (4:2). Keys are supplied as accessories in a separate bag. • Open and remove the hood (4:3). p. 7/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A... - Page 8 Check the state of the material. Though it has been carefully packed, damage may have occurred during transport. Any transportation damage should be repaired, or components replaced. p. 8/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A...
-
Page 9: Preliminary Work On Site
• When the turnstiles are fitted in banks (rows), of more than 1 unit, attention should be given to the linear, vertical and horizontal alignment. Packing shims can be used. p. 9/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A... -
Page 10: Mounting The Tripod Arms
• Apply a drop of Loctite 243 (blue) on the thread of the flat-end screw (5:4) and tighten this firmly to lock the conic-end screw (5:3). p. 10/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97 Installation TR450 2-1105GB Rev.: A... -
Page 11: Electrical Connections And Initial Power-Up
After the power supply from the remote isolator has been energised, test for correct polarity, supply voltage and earthing, power up the equipment by putting the main switch (6:6) to the ON position. p. 11/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97... -
Page 12: Check-List
Dismounting the tripod arms (if required) Remove the flat-end screw (5:4) and the conic-end screw (5:3) from the arms (5:2). With the help of a strap tube-wrench, turn the arms counter-clockwise to unscrew them. p. 12/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97... -
Page 13: Removing The Unit
(metals, electrical components, plastics, etc.) are handled, recycled, or disposed of in the appropriate method, to comply with regulations and codes of practice in the country where the unit is to be scrapped. p. 13/12 Automatic Systems TR450-GB YD-XX MQ-1302 31/08/97...
