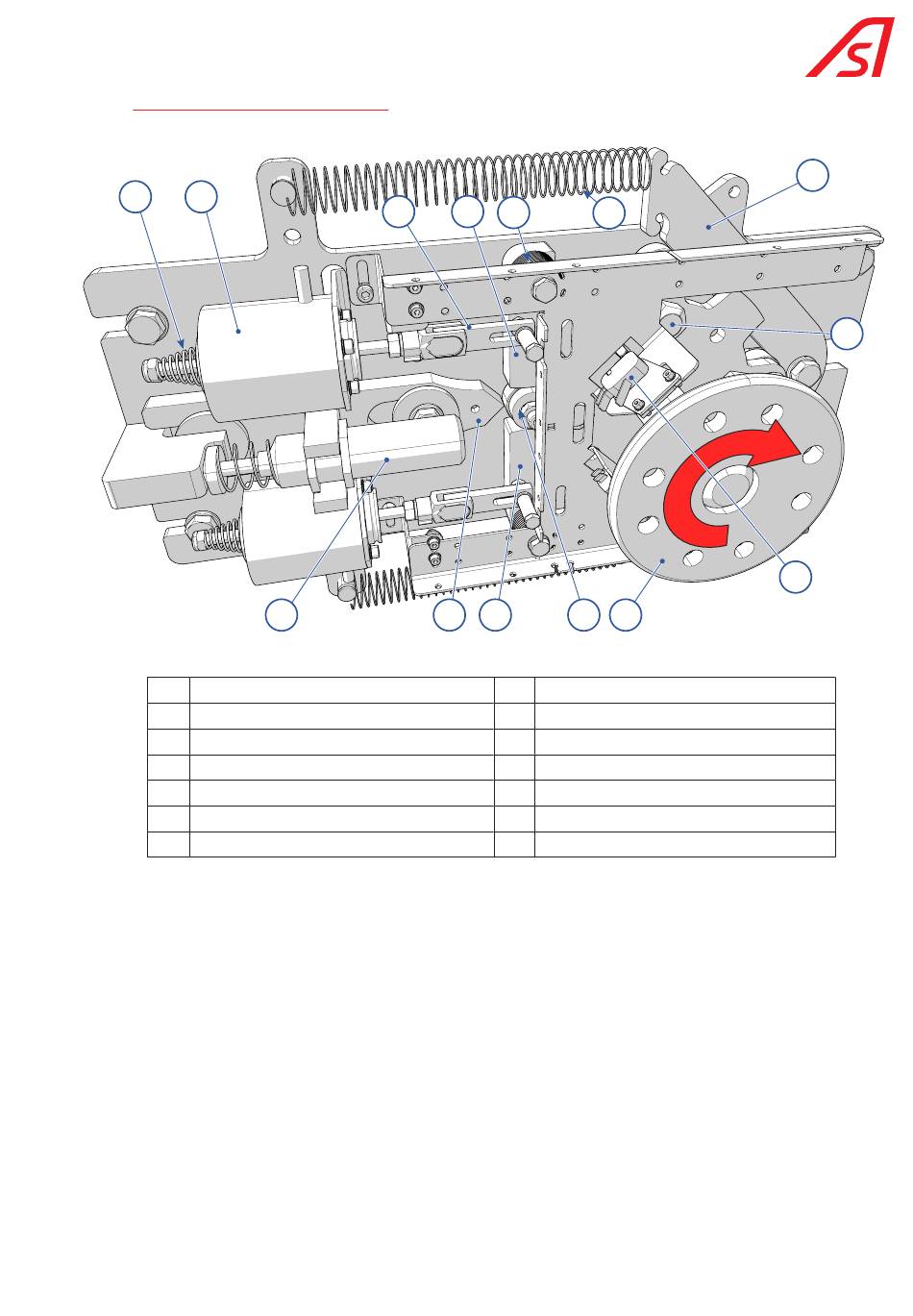

3.9. MECHANICAL ASSEMBLY
C A
A Electromagnet
B Connecting rod
C Connecting rod release spring
D Mobile comb bolt
E Rotor
F Rollers
G Compensating arm
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
B
N M
D
K H
L F E
Fig. 8
H Compensating arm release spring
J Limit switch
K Bolt release spring
L: Mobile comb bolt
M Shock absorber cam
N Hydraulic shock absorber
P Limit switch cam
G
P
J
