4.4.2. Central part assembly
4.4.2.1.

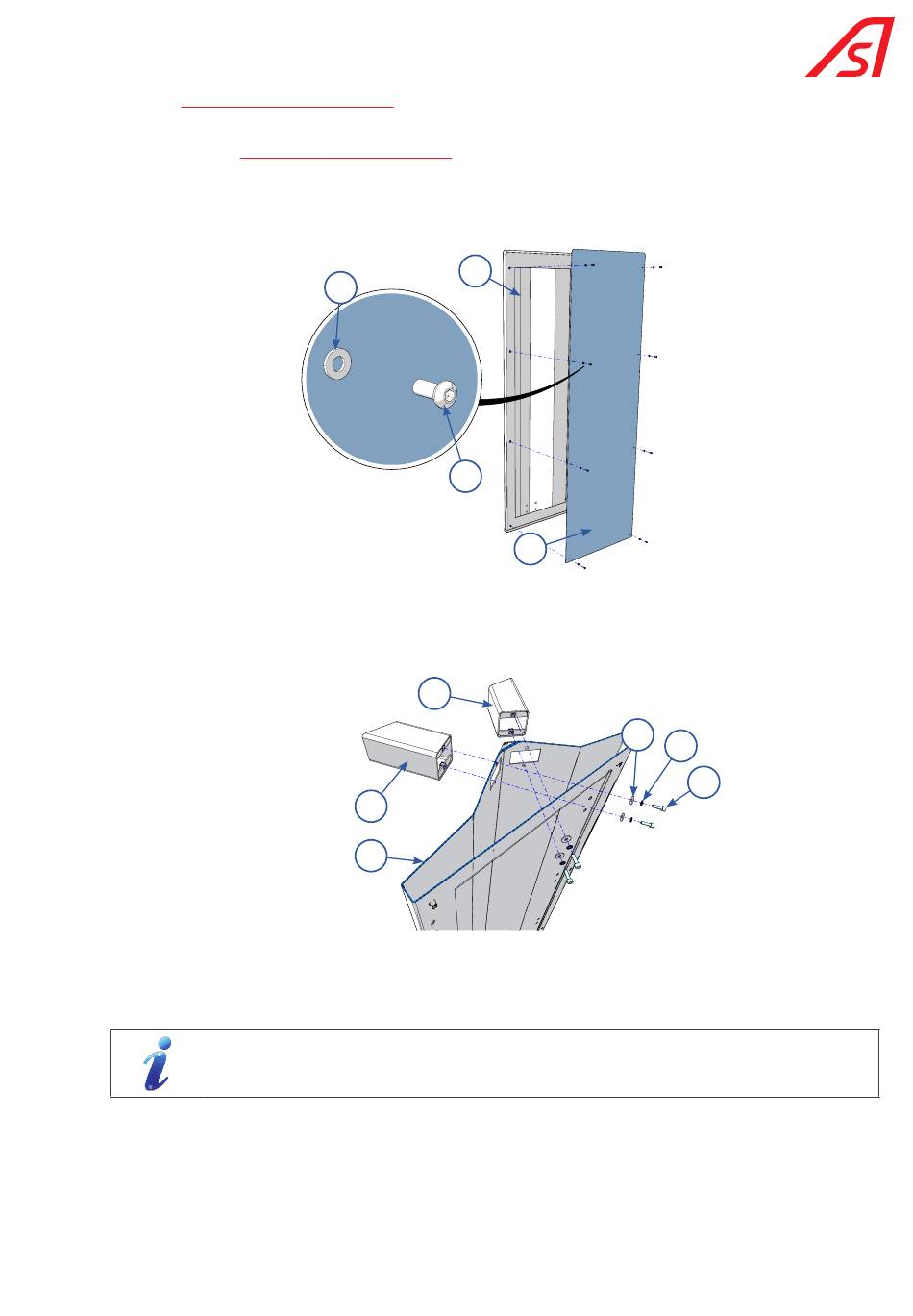

Remove the front (B) of the central section (A) by removing the 8 nylon fixing screws (C) and washers (D) [
Fig. 18];
If not already done, assemble the two upper arms (A1 & A2) of the central section (A) using screws (E) and
washers (F & G). [ Fig. 19]
Then remove the central section (A) from the corresponding fixing rails (B) and hold it in place, without tightening,
using mounting brackets (C), screws (E) and washers (D). [ Fig. 20]
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
P
(
reParation
for each central part
D
A2
A
A third person will be needed to hold the second fixed panel in place.
)
A
C
B
Fig. 18
A1
Fig. 19
G
F
E
p. 31/48
