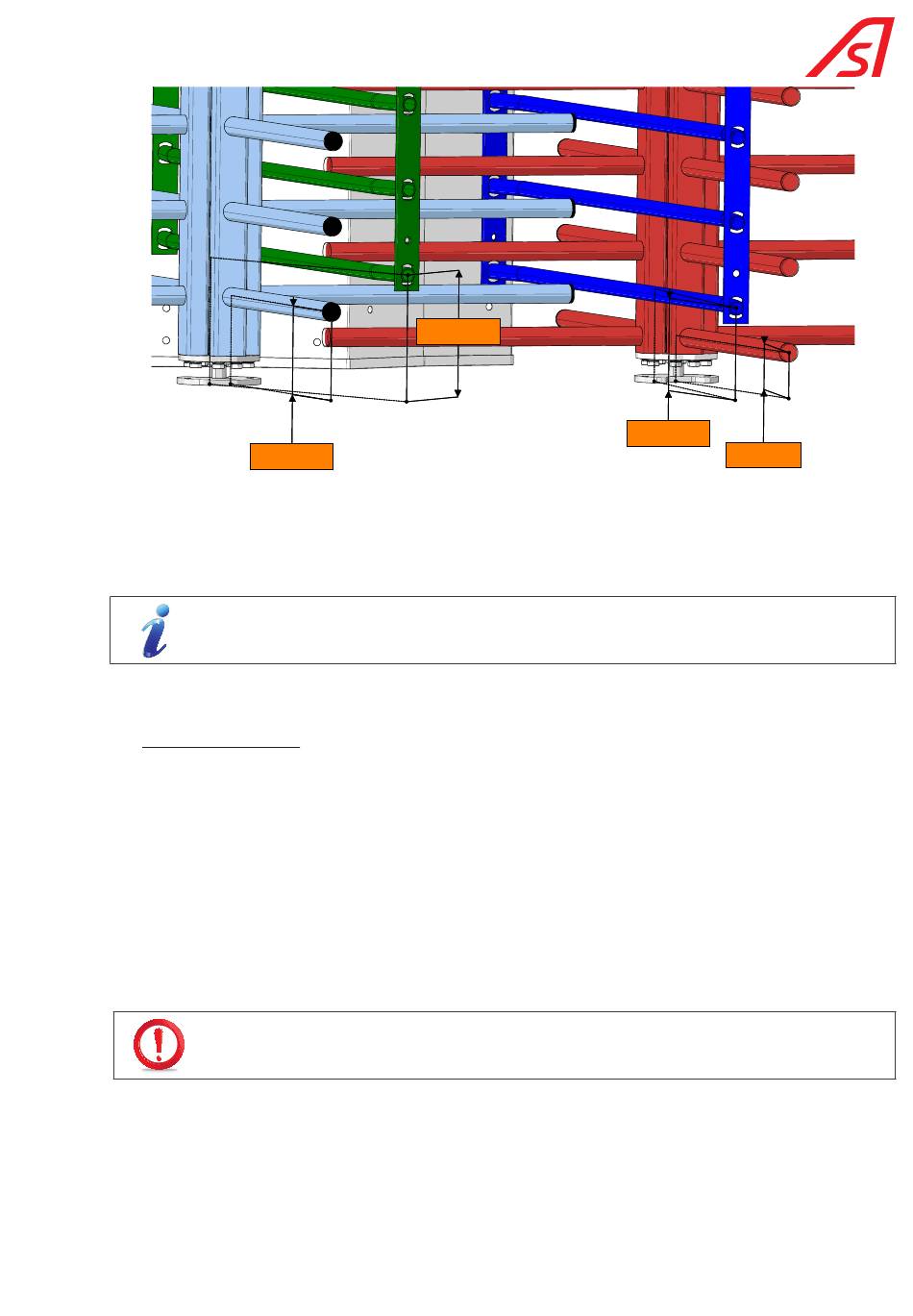

A view of the theoretical dimensions of the distances between the ground and the first bars of the fixed and mobile
combs has been provided below.
The dimensions given below are from a 3D model and may therefore differ from those in the final
solution. However, they do indicate the relative positioning of the various elements.
• Clean the fixing holes of the mobile combs using cleaning spray HHS CLEAN 500 ML WURTH or MEWA Eco Force
spray, 500 ml.
• For each mobile comb:
• Position the mobile comb between the upper flange and the lower plate. (Fig. 25)
• Position the hexagonal flange
be used as a pair, without separating them, on the upper fixing holes of the mobile comb (and tighten them
just to make contact).
• Position the hexagonal flange
be used as a pair, without separating them, on the lower fixing holes of the mobile comb (and tighten them
just to make contact).
• Repeat the operation for each mobile comb.
• Tighten all fixing screws on the mobile combs: tightening torque = 68 Nm.
ONCE TIGHTENED, A PRE-COATED SCREW CAN NO LONGER BE ADJUSTED.
IF ADJUSTMENT IS NECESSARY, THE SCREW MUST BE REPLACED.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
226,99 mm 226,99 mm
158,50 mm 158,50 mm
bolts (1) (DIN 6921)
bolts (3) (DIN 6921)
165,50 mm 165,50 mm
Fig. 26
M12x30 pre-coated and Nord-Lock M12 washers (2), to
M12x25 pre-coated and Nord-Lock M12 washers (2), to
82,00 mm 82,00 mm
