Prepare effectively when installing conduits for cables and remote control devices, at the locations shown in the
installation drawing.
Note that the cable ends will extend 3 metres above ground level; electrical connections are made in the upper housing.
Make sure the surface on which the turnstile is to be installed is perfectly flat (without any irregularities) and made of
concrete or other non-flammable material.
In accordance with instructions on the installation drawing, use the drilling template to mark the locations of the
various drilling holes.
When using the anchoring bolts provided by
Although the anchoring bolts provided by
the complete fixing process must be adapted to the environment and nature of the ground on which
the equipment is to be installed, and all civil work must be validated by a qualified engineer.
Automatic
anchored installation.
Install the anchoring bolts (21).
Provisionally tighten the nuts to trap the expansible plug in the ground.
Remove the nut to subsequently install fixing rails for the uprights.
The stability of the fixed panel must be reinforced using spacers (
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
TRS373-MT-EN-01
Automatic
THE EQUIPMENT MUST BE CORRECTLY FIXED TO THE GROUND PRIOR TO BEING USED!
Systems cannot be held responsible for accidents or damage resulting from an improperly
Systems, drill holes of 15 mm dia. to a depth of 85 mm.
Automatic Systems are compatible with most configurations,
ch.2.5.6. ).

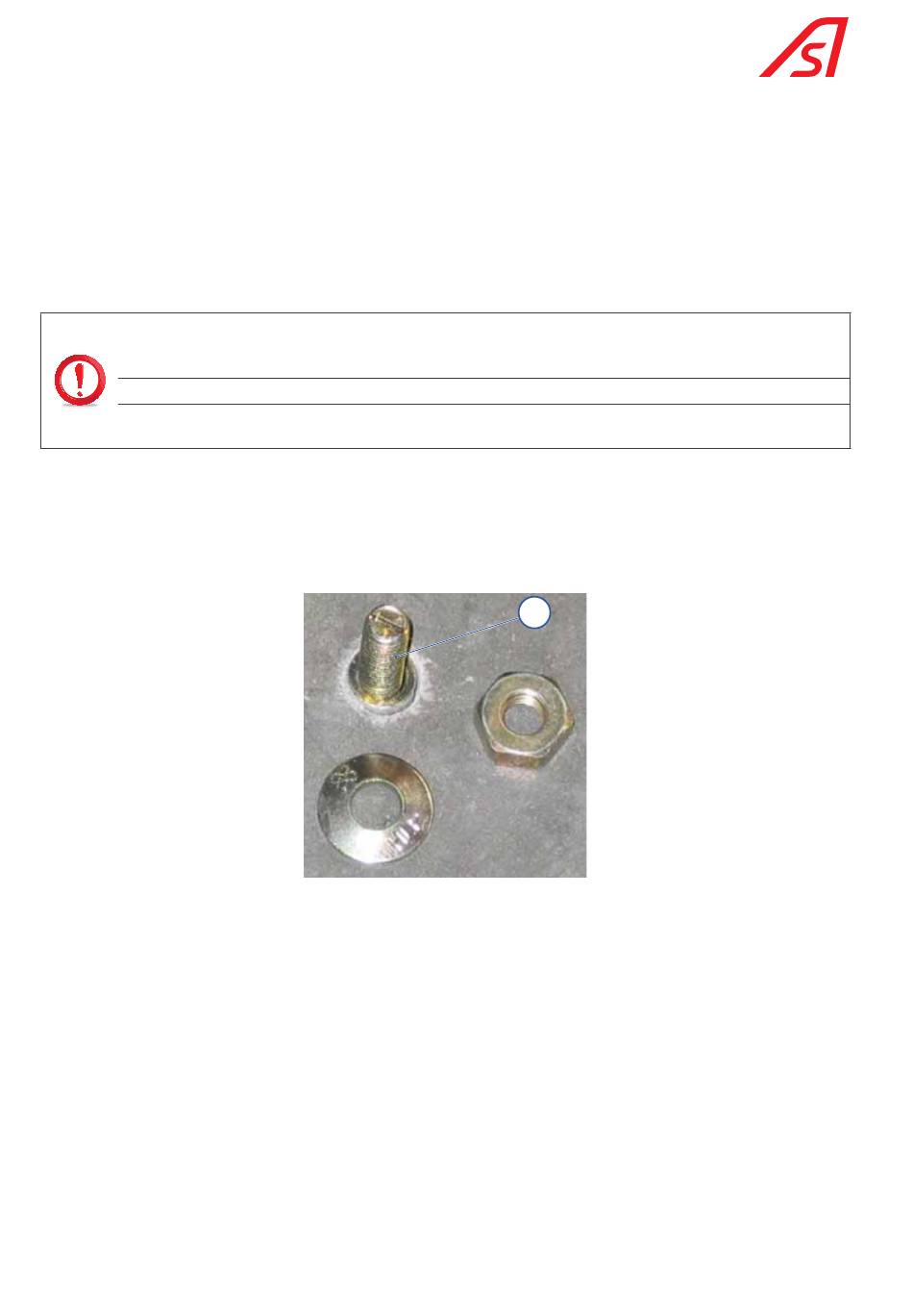

21
Fig. 14
