2 Introduction

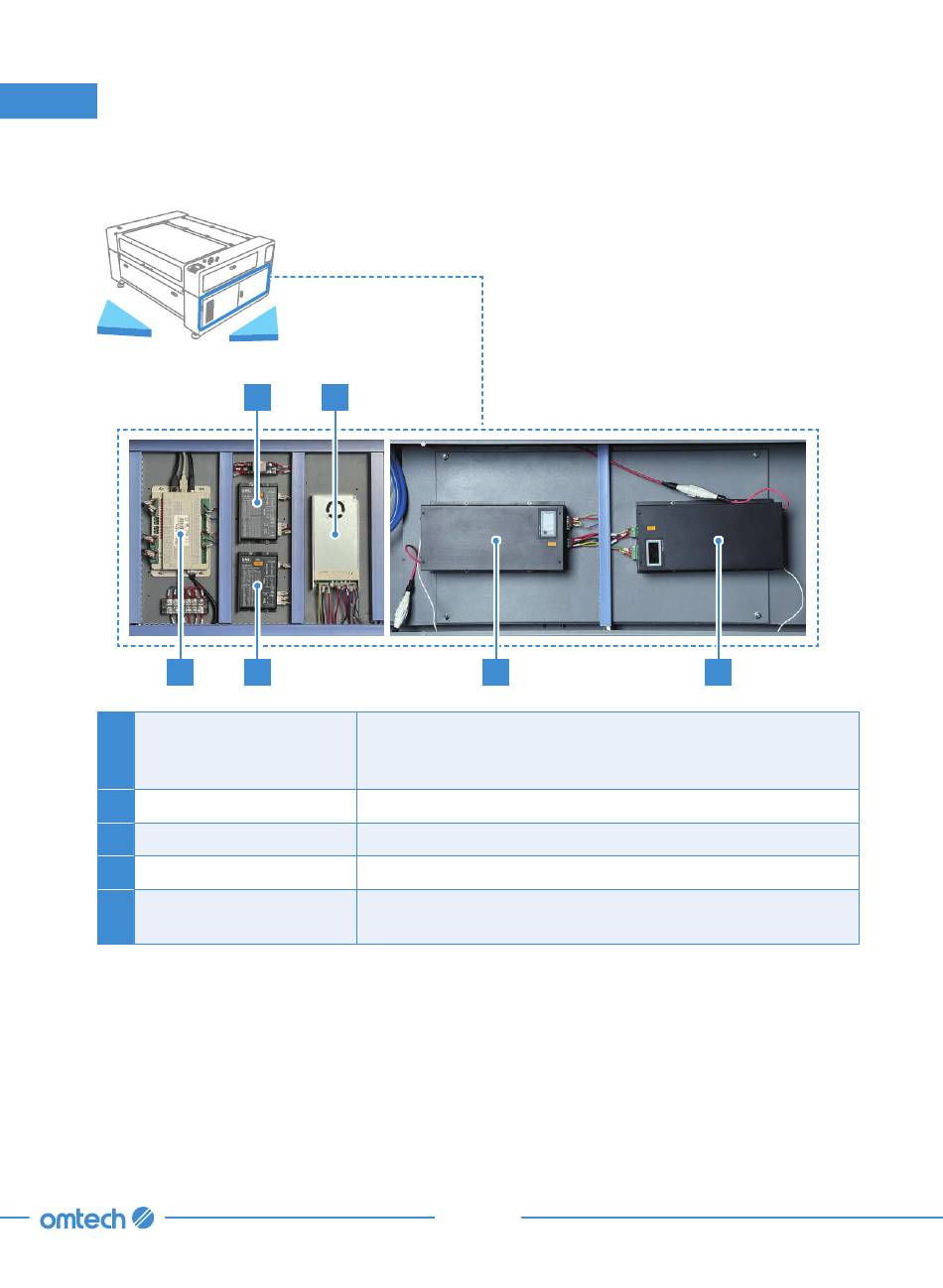

3.7 Electronics Bay
Front
Right
B
A
C
A
Mainboard
B
X-Axis Driver
Y-Axis Driver
C
D
Control Power Supply
E
Laser Power Supplies
D
E
This circuit board controls the engraving process, responding
to commands from your engraving software or the machine's
control panel.
This device moves the laser head along the X rail.
This device moves the X rail along the Y rail.
This device powers the machine's control panel.
These devices transform standard electricity into the extremely
high voltage charge necessary for the laser tubes.
