5.8.25 Laser Power Information

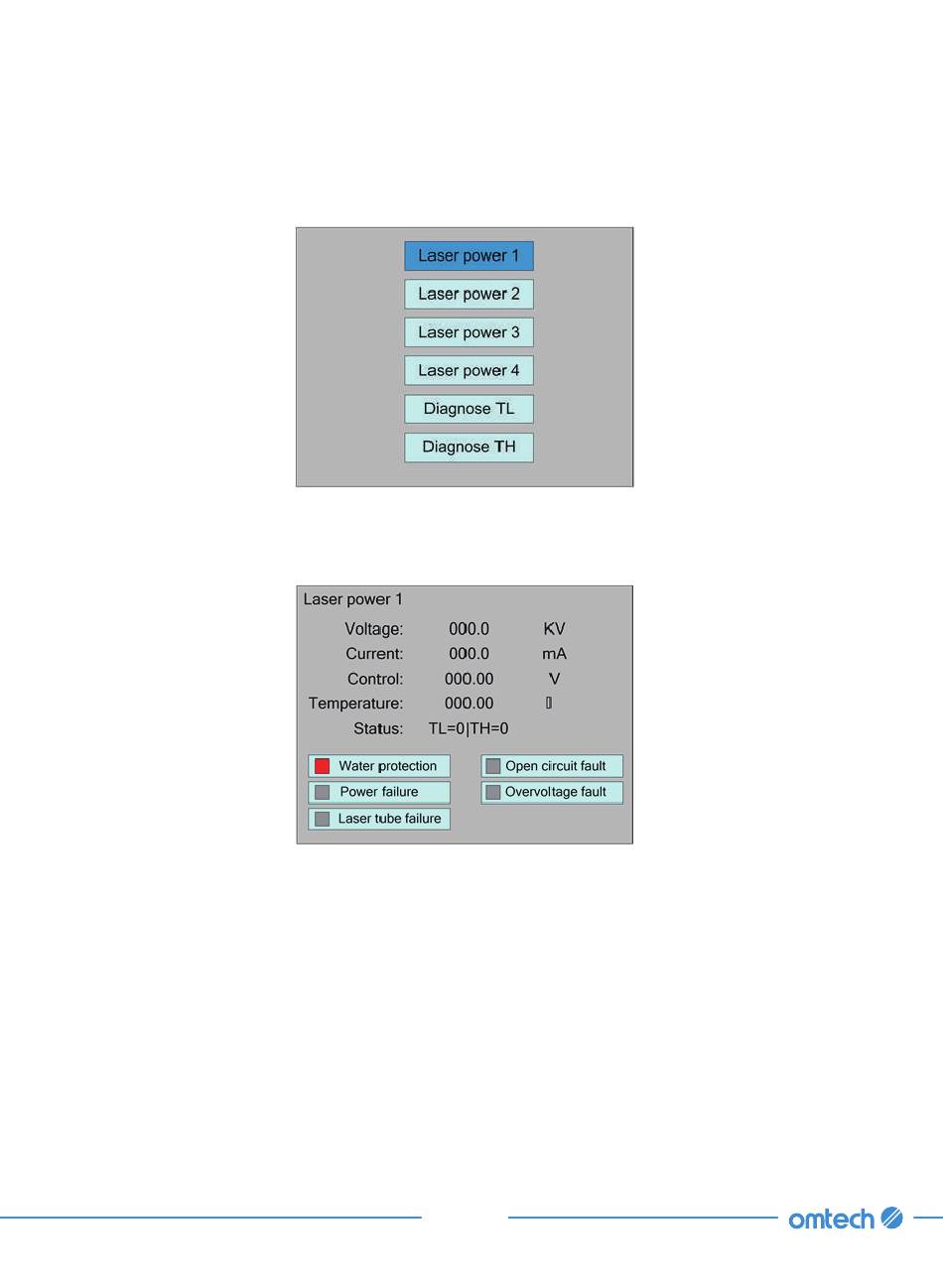

Select Laser Power Info in the functions interface and press Enter. The display will show:
When items 1, 2, 3, and 4 of the laser power supply are selected, press Enter to view the information of
each power supply. Note that this machine only includes 2 laser power supplies. The interface will show:
When Diagnostic TL and Diagnostic TH are selected, press Enter to check whether the IO of the laser
power supply is abnormal. If so, an alarm will be generated.
Press Esc to return to the previous menu.
