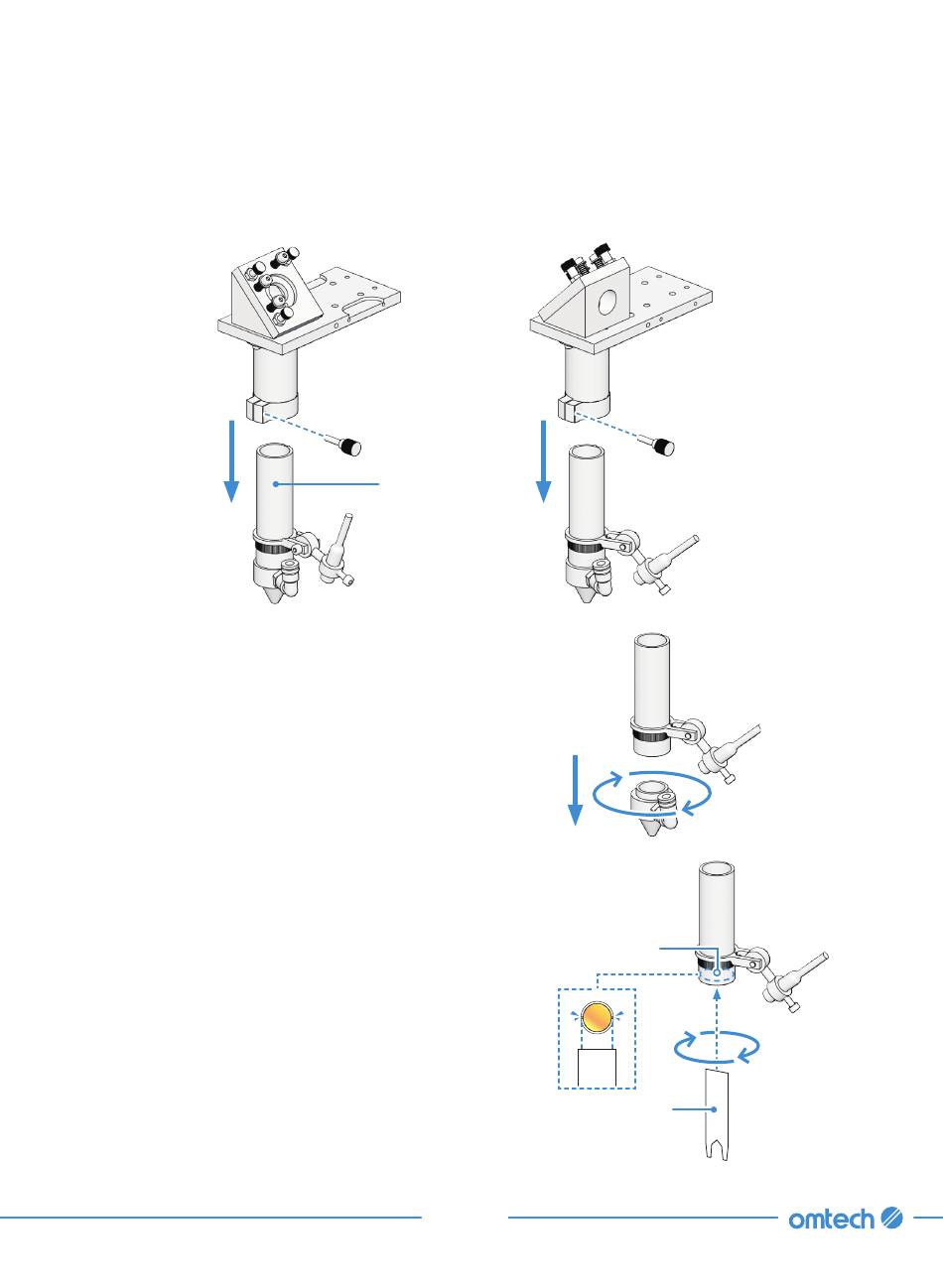

4. Remove the red laser by detaching its bolt.
5. Remove the laser guide connection by rotating it toward you and loosen it. The lens holder
should be detached.
6. Remove the nozzle by rotating it toward you.
7. R e m ove t h e l e n s f ro m t h e l e n s h o l d e r
b y t u r n i n g t h e l e n s h o l d e r l o c k r i n g
counterclockwise with the lens removal tool
and letting the lens and its O-ring drop onto
the cleaning cloth.
Lens Holder
Focus Lens Repair Tool
80
Focus Lens
