Omtech SH-G1390 User Manual page 66

5 Operation
5.8.5 Main Menu

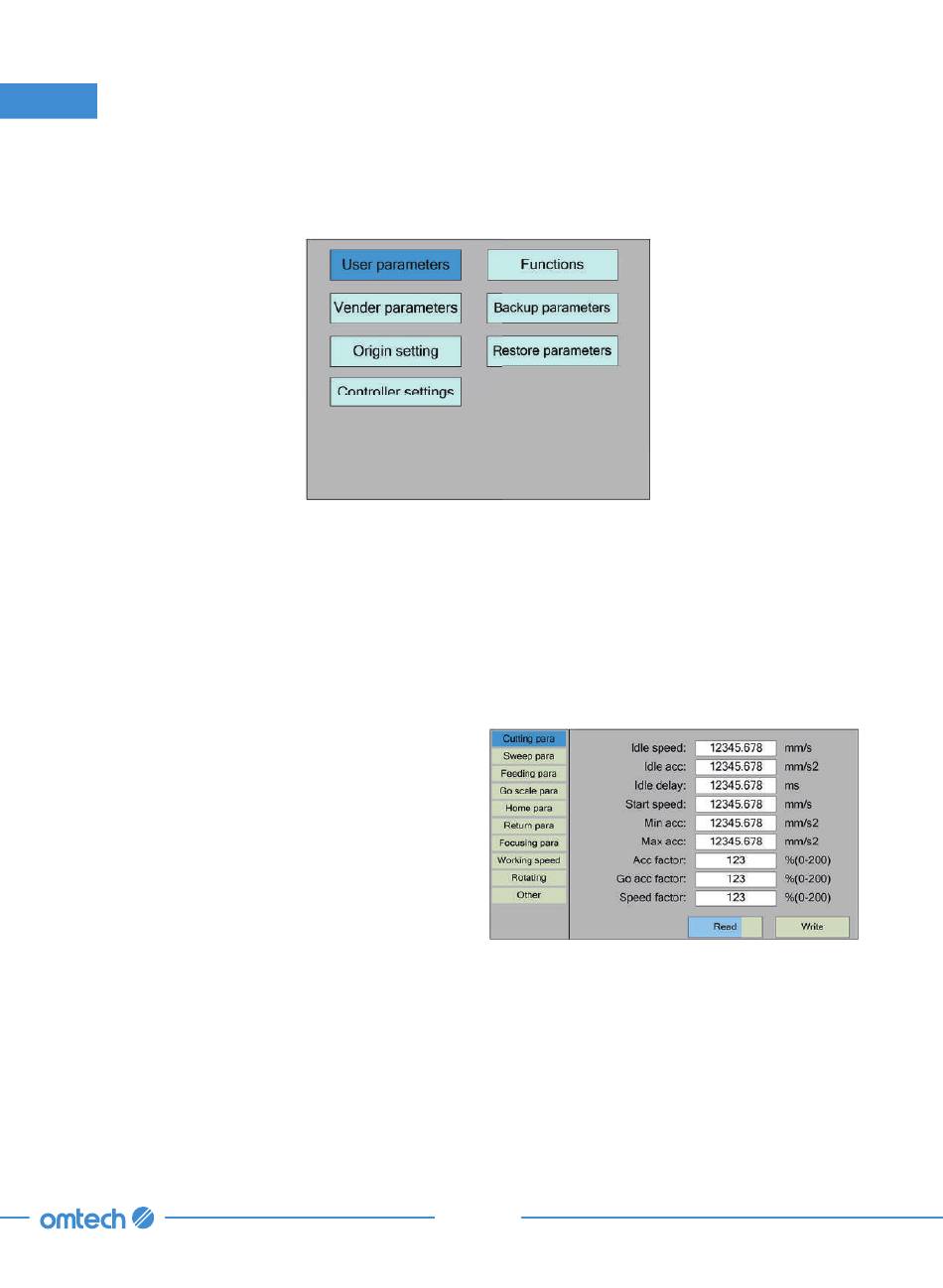

Push Menu when the screen is on the main interface. The display will show:
Select one and press Enter or Esc to return to the previous menu.
5.8.6 User Parameters
In the menu interface, select User Parameters and press Enter. The display will show:
At this point, the panel automatically reads
the motherboard parameters and displays
them, while displaying the progress of the read
parameters in Read Parameters. When all the
parameters are read out, you can press ▲ or ▼
to select a parameter category such as Cutting,
Feeding, etc. The right parameter area displays
the corresponding parameters. If you do not
need to modify the parameters, press Esc to
return to the menu interface without saving
changes.
59
