4 Installation
4.5 Installing the Exhaust System

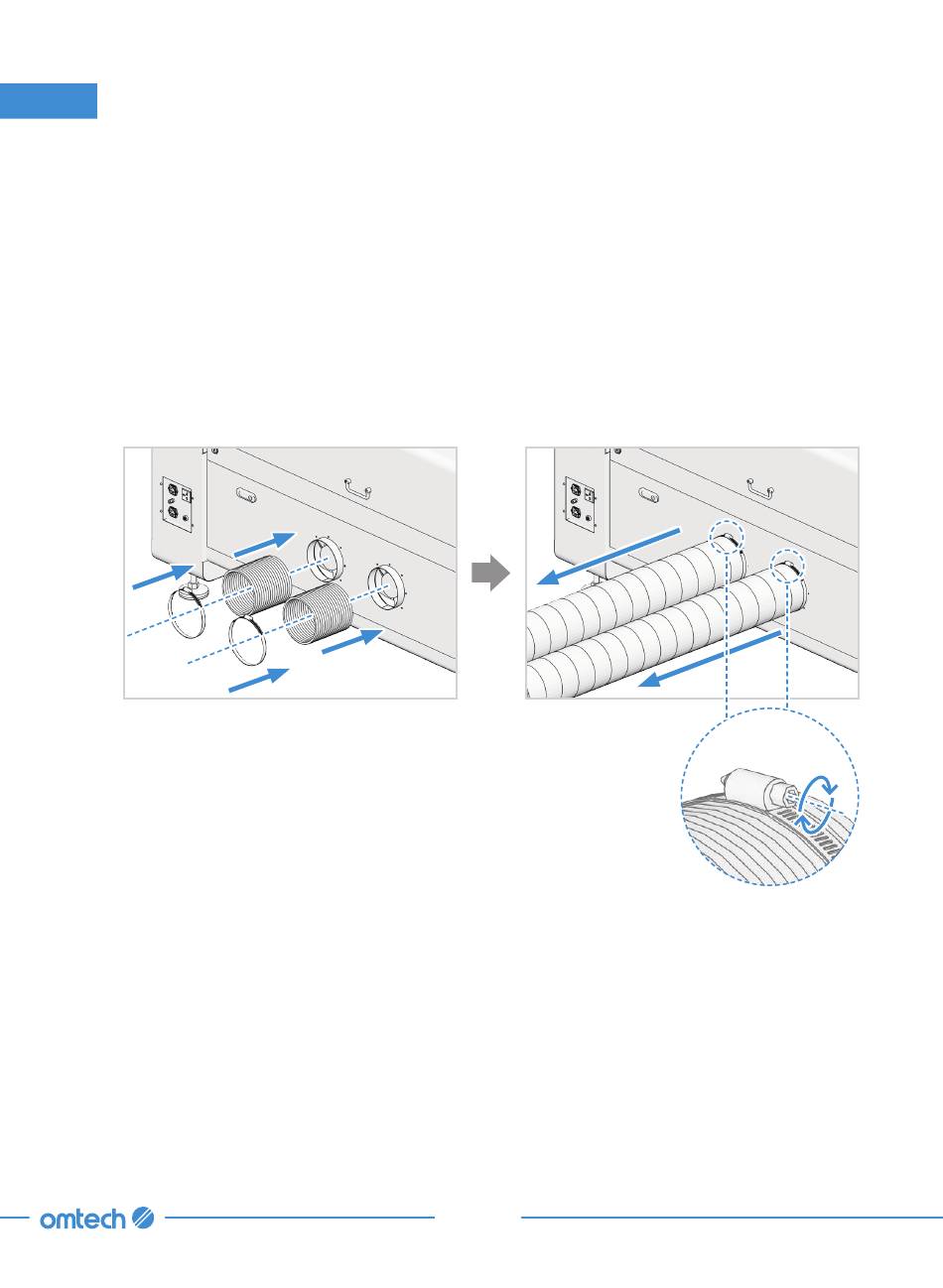

This machine is equipped with two duct fans inside, you need to install the provided exhaust pipes
directly onto the exhaust fans to use the machine.
1.
Firmly connect one of the engraver's exhaust ports to the provided exhaust pipe by using one
pipe clamp.
2. Place the other end of the pipe out of a door, window, and so on, or—if there will be any harmful
byproducts produced as you engrave— connect the pipe to a dedicated fume extractor.
3. Seal all seams and connections tightly.
4. Repeat the same for the other port.
33
