2. Fully clean the workbed and check if the lens or any mirrors require cleaning. Use the bottom
access door to remove, empty, clean, and replace the debris tray. Store everything neatly away.
3. For best results, lock the bottom access door and disconnect your laser engraver from its power
supply between uses.
5.6 Rotary Operation (Optional)
5.6.1
Installing a Rotary Axis
1.
Place your rotary axis in the workbed.
2. Check the height of the workbed is appropriate. If necessary, lower the workbed to provide
room for the laser head to pass over your axis and material.
3. Connect the rotary axis cord to the rotary port at the back of the main bay.
5.6.2 Engraving with a Rotary Axis
1.
Turn on the switch of the rotary axis on the machine and turn on the machine by following the
§ 4.2 Turning on the Machine
instructions in
controlled by the engraver's Y-axis settings.
2. Enable and configure rotary settings in the software according to your software requirements.
3. Prepare the engraving pattern and adjust necessary parameters for the best result, for example,
the speed and power.
4. Place your object gently on the rotary axis.

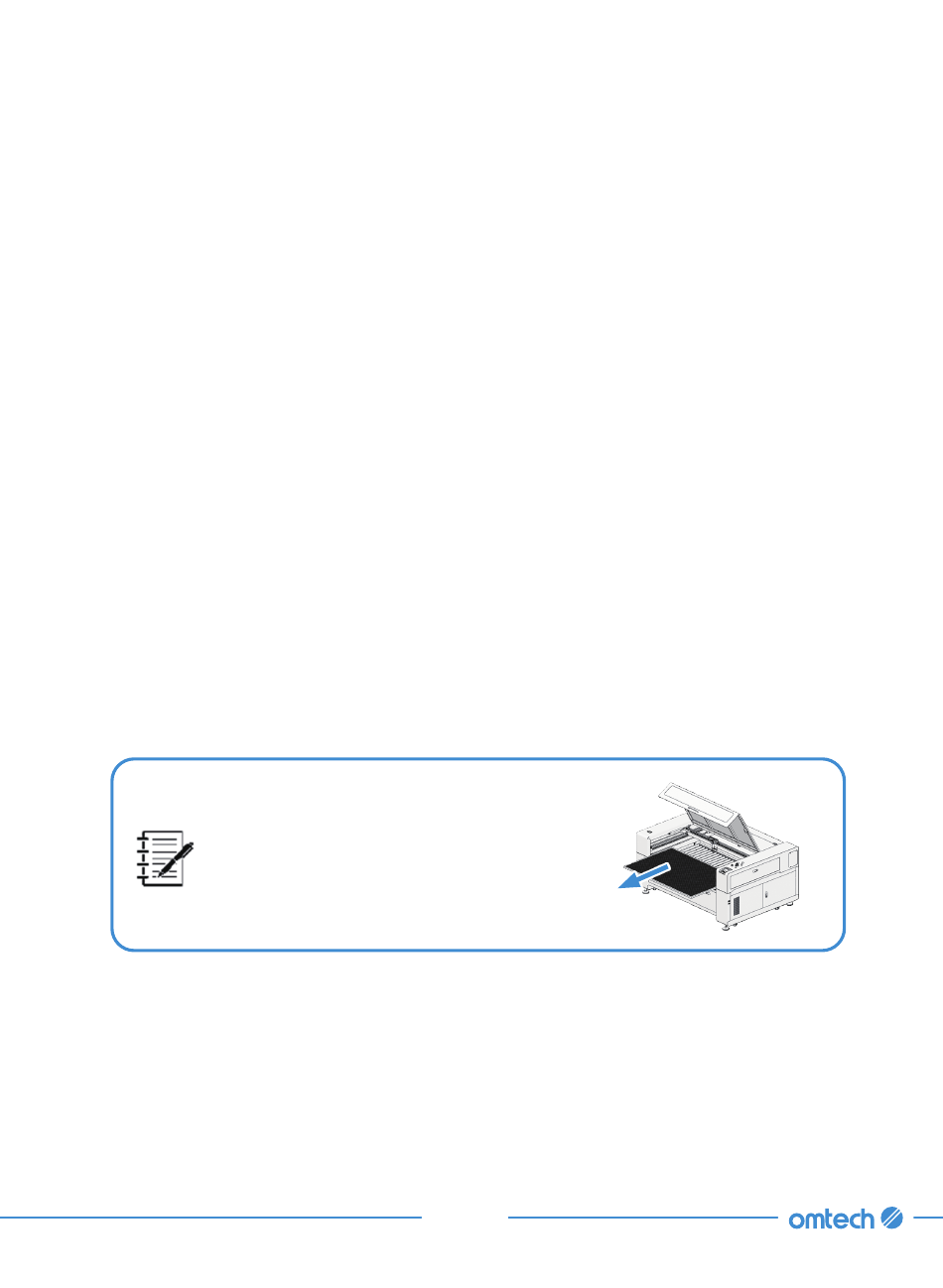

If the engraved object is too big, remove the
honeycomb or remove the honeycomb and the
aluminum knife bed for space.
5. Focus and engrave by following the instructions in
§ 5.4 Engraving
on Page
6. When finishing work, wrap up by following instructions in
§ 5.5 Wrapping-up
on Page 50.
If you will not use the rotary axis next time, disable the rotary function and change the
necessary settings according to your software requirements.
on Page 50. The rotation of the rotary axis will be
50
.
50
§ 5. 3 Focusi ng
on Page
§ 5.4 Engraving
on Page
50
and
50
and
