Omtech SH-G1390 User Manual page 32

3 Components
3.6 Connection Inputs
Back
Right
A
B
C

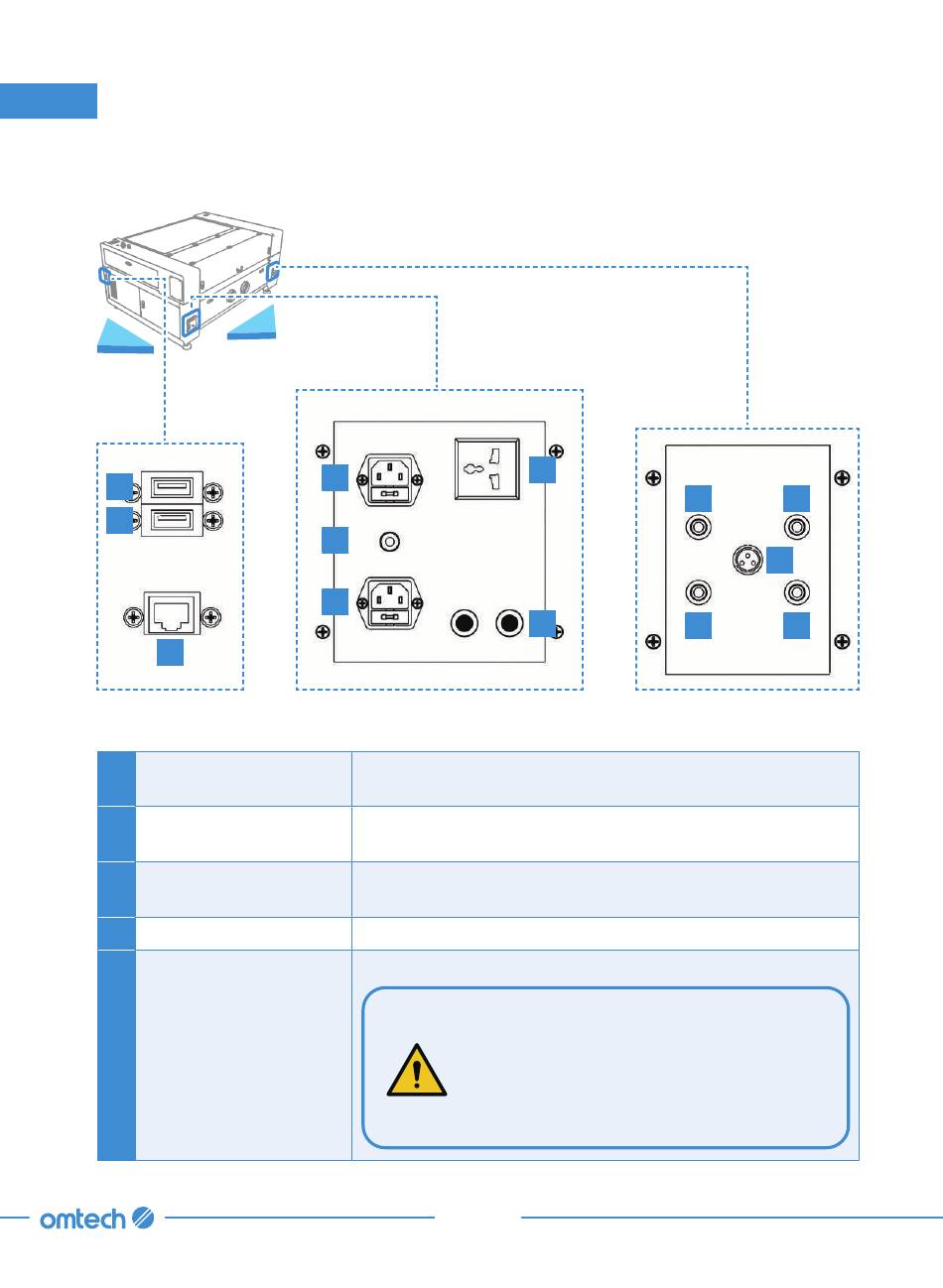

A USB Port
B USB Cable Port
C Ethernet Port
1st Main Power Port
D
E Water Pump
D
F
G
This port allows you to load and save designs and parameters
directly onto the engraver.
This port connects to your control computer and its engraving
software using any of its USB ports.
This port connects to your control computer and its software
either directly or via the internet.
This port connects to the 3-prong main power cable.
This port connects to the water pump power cable.
ONLY use this port for your water pump. DO
NOT plug your water chiller into it. It is highly
recommended, however, to use an industrial
water chiller considering the high power of
the laser.
