5.2 Display
I-Wave2
The handle
It is possible to set the automatic display rotation or a fixed direction by the driver of the
electronic unit or with the R2G application.

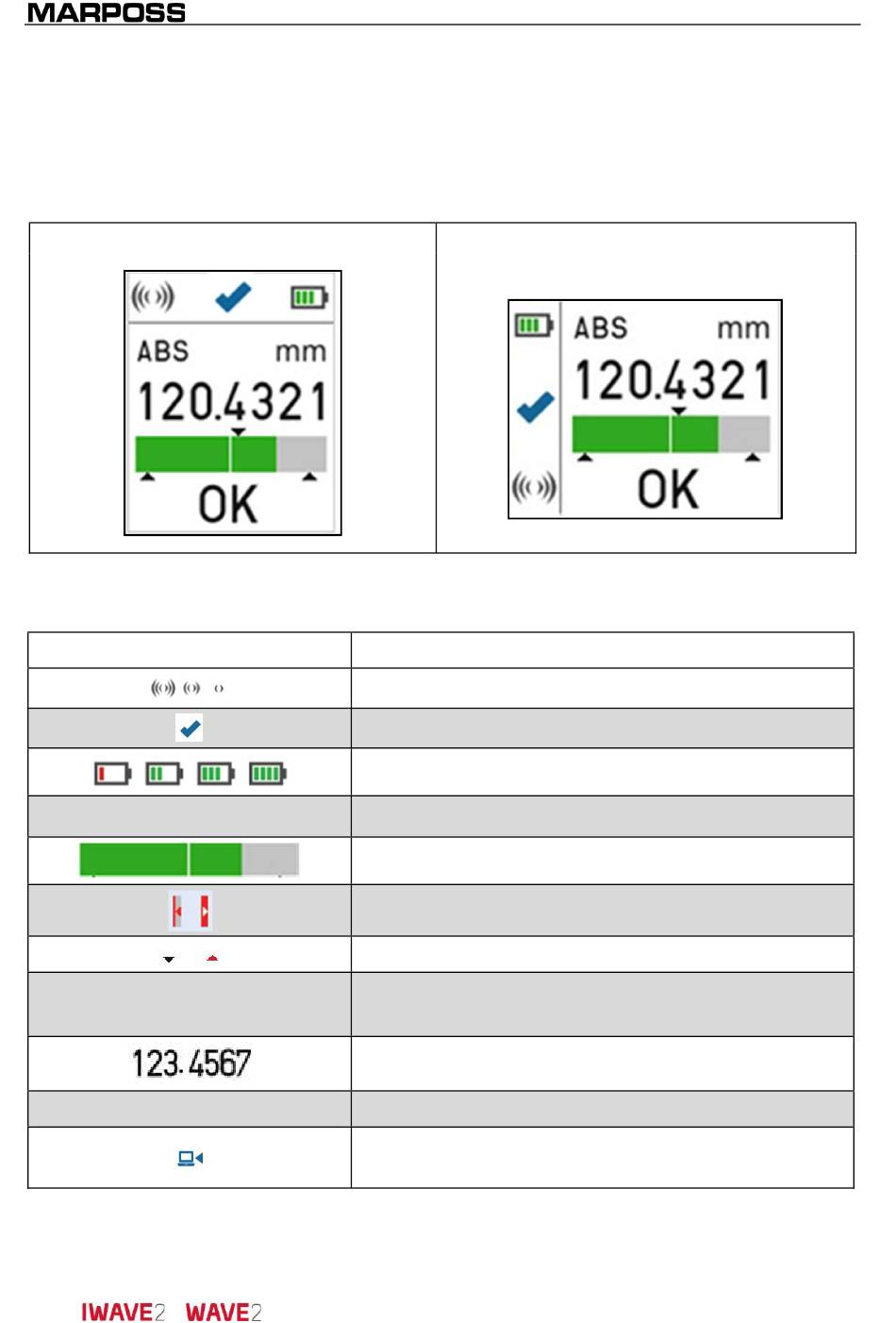

Portrait
5.2.1 Symbols meaning
Symbol
µm mm in
OK/NG
ABS REL
44
/
displays the measurement on a bright screen TFT 1.8".
Wireless power level
Confirmation of measure transmission
Battery level
Measuring unit
Bargraph display
Out of scale indicators
Indicators of tolerance limits
Good/Scrap indication
Measurement value
Absolute/Relative measurement mode
Measure on hold (when connected to an
electronic unit)
- Instruction Manual
Landscape
Description
