2.2.1 I-Wave2 handle description
I-Wave2

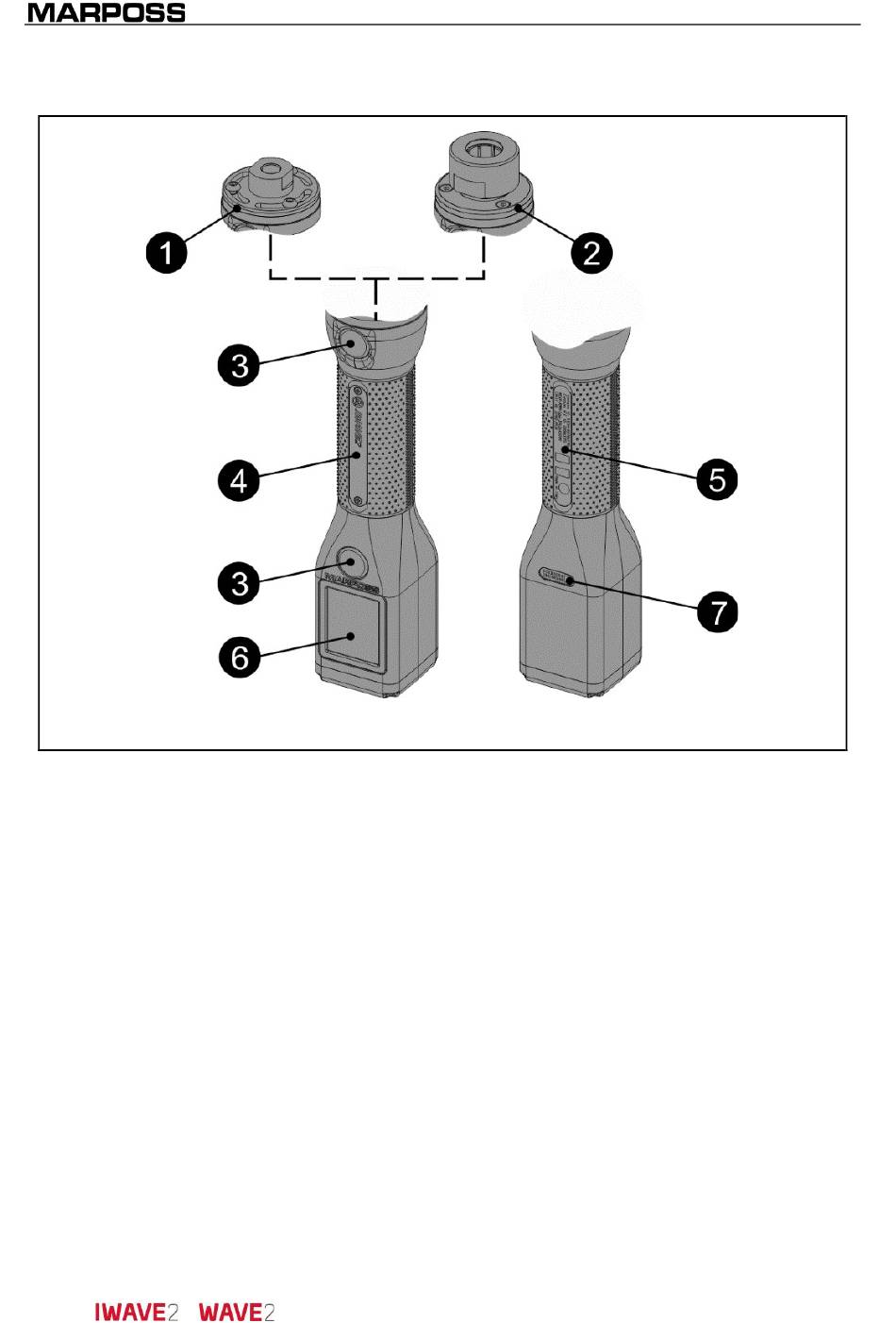

Figure 2-2.
1)
Direct Lock system.
2)
Star Lock fixing system.
3) Buttons: the handle is provided with twin buttons; whose use is described in
the chapters 5.
4) Removable metal plate: with product logo, which can be customized with
codes and references.
5) Non-removable adhesive plate: it shows the power supply features and
information on trade marks and approvals.
6) Display: the colour display has an automatic orientation option (see chapter
5 "INSTRUCTIONS FOR
managed comfortably in every direction.
7) Non-removable metal plate: shows the serial number.
16
/
FRONT
handle description.
USE"),
- Instruction Manual
REAR
which allows the
I-Wave2
handle to be
