2.2.2 Wave2 handle description
Wave2

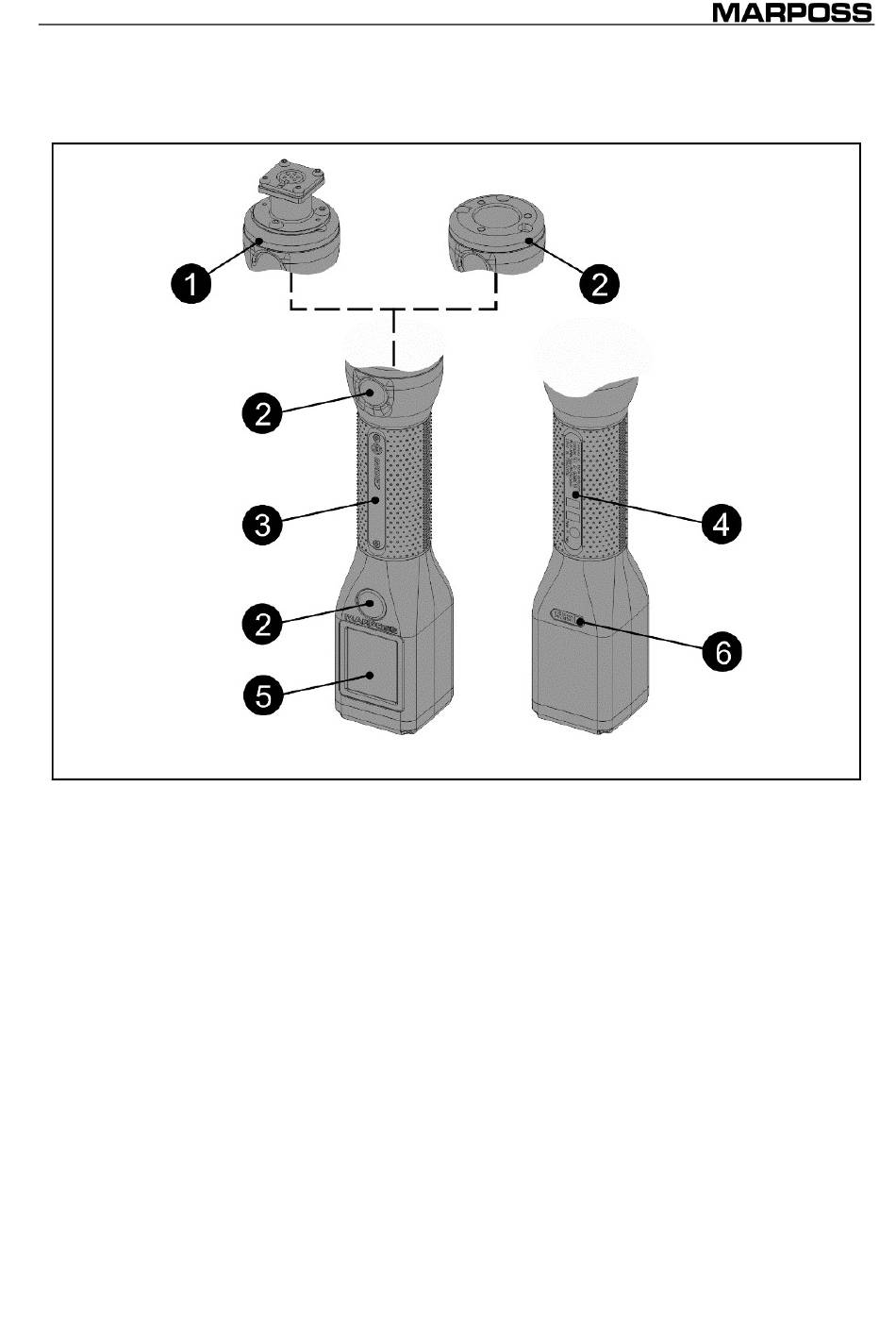

Figure 2-3.
1) Connector interface: the interface has a connector for EBG capsules. Using
suitable accessories (see chapter 8 "ACCESSORIES"), it is also possible to
connect Marposs RedCrown2 pencil heads or other sensors.
2) Buttons: the handle is provided with twin buttons; whose use is described in
the chapters 5
3) Removable metal plate: with product logo, which can be customized with
codes and references.
4) Non-removable adhesive plate: it shows the power supply features and
information on trade marks and approvals.
5) Display: the colour display has an automatic orientation option (see chapter
5 "INSTRUCTIONS FOR
managed comfortably in every direction.
6) Non-removable metal plate: shows the serial number.
FRONT
handle description.
"INSTRUCTIONS FOR
USE"),
REAR
USE".
which allows the
Capitolo 2  INTRODUCTION
I-Wave2
handle to be
