2. INTRODUCTION
2.1 General description

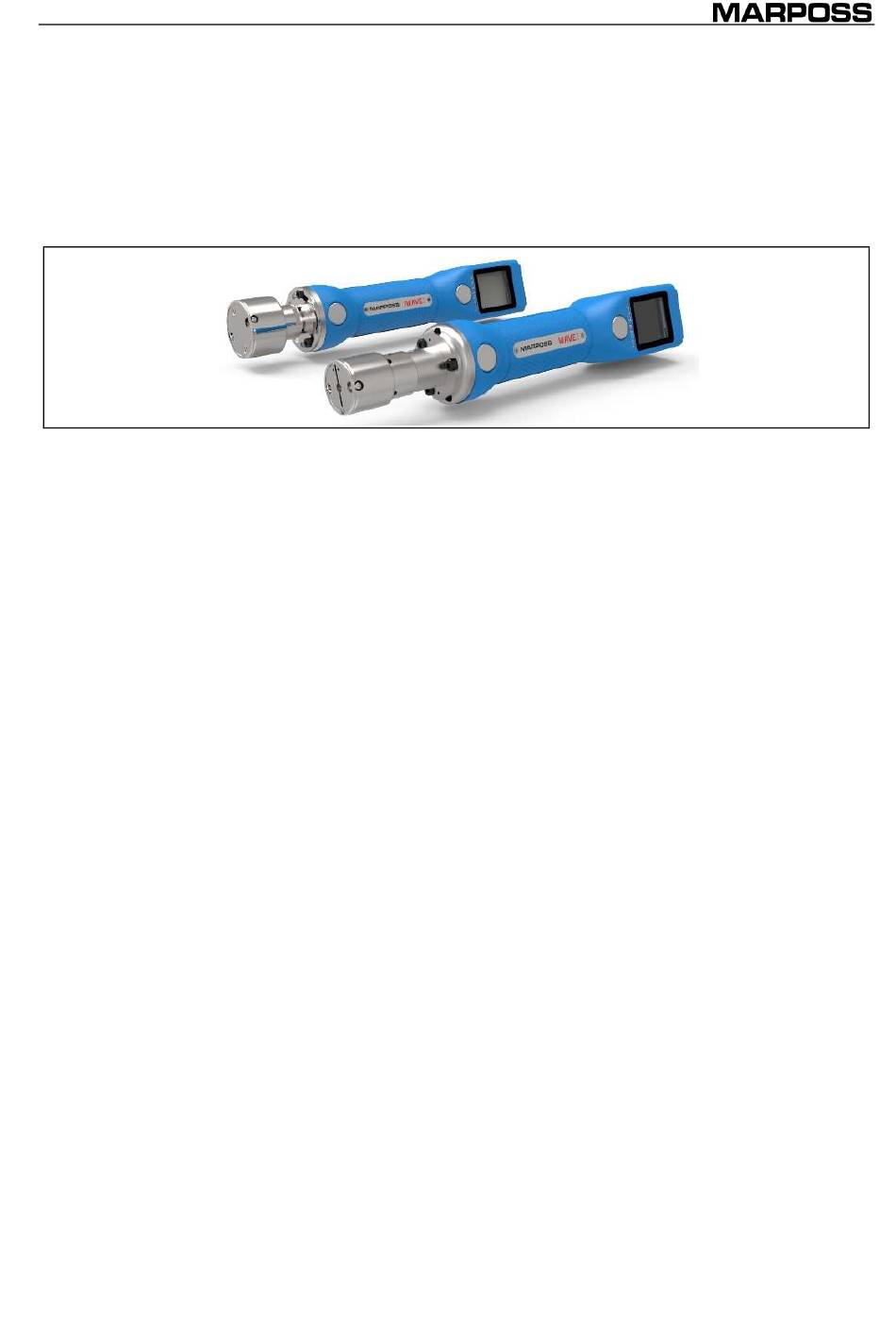

I-Wave2/Wave2 is a rechargeable handle for bench manual dimensional measurement
systems, equipped with a Wireless Bluetooth
visualization of the measure.
The main features of the product are:

1.8 "TFT display with automatic orientation;

Microprocessor inside the handle for direct measurement processing;

Awakening from standby and rotation display via accelerometer;

Universal system able to accommodate:
I-Wave2
Wave2

Instant re-tooling for the measure of internal, external or depth features;

Double magnetic acquisition buttons to guarantee maximum ergonomics;

Wireless connection with the PC via Bluetooth

Simultaneous display of the measurement on the display or on a PC screen;

Pressing a button the measurement is stored on the PC for statistical purposes;

Seamless synchronization with the gauge computer ;

Ready2Gauge Application (R2G) available for Windows, Android and iOS
operating systems, which allows to program, save and export data.

Possibility to operate in Stand-Alone mode , and without the need to have a PC
connected;

Degree of protection:

Equipped with a fast-charging Li-lon battery with wireless power technology;

Quick charge base designed to work 24/7;

Possibility to connect to any commercial PC, disengaging itself then by Marposs
devices as Merlin and E9066;

The technology employed in the buttons ensures IP67 rating.
mechanical gauge head M10, M6 M3.5 or with rapid
replacement via Direct Lock or Star Lock.
EBG electronic gauge head, pencil probes or other sensors.
IP67 (I-Wave2), IP65 (Wave2);
®
antenna and integrated display for the
®
technology;
