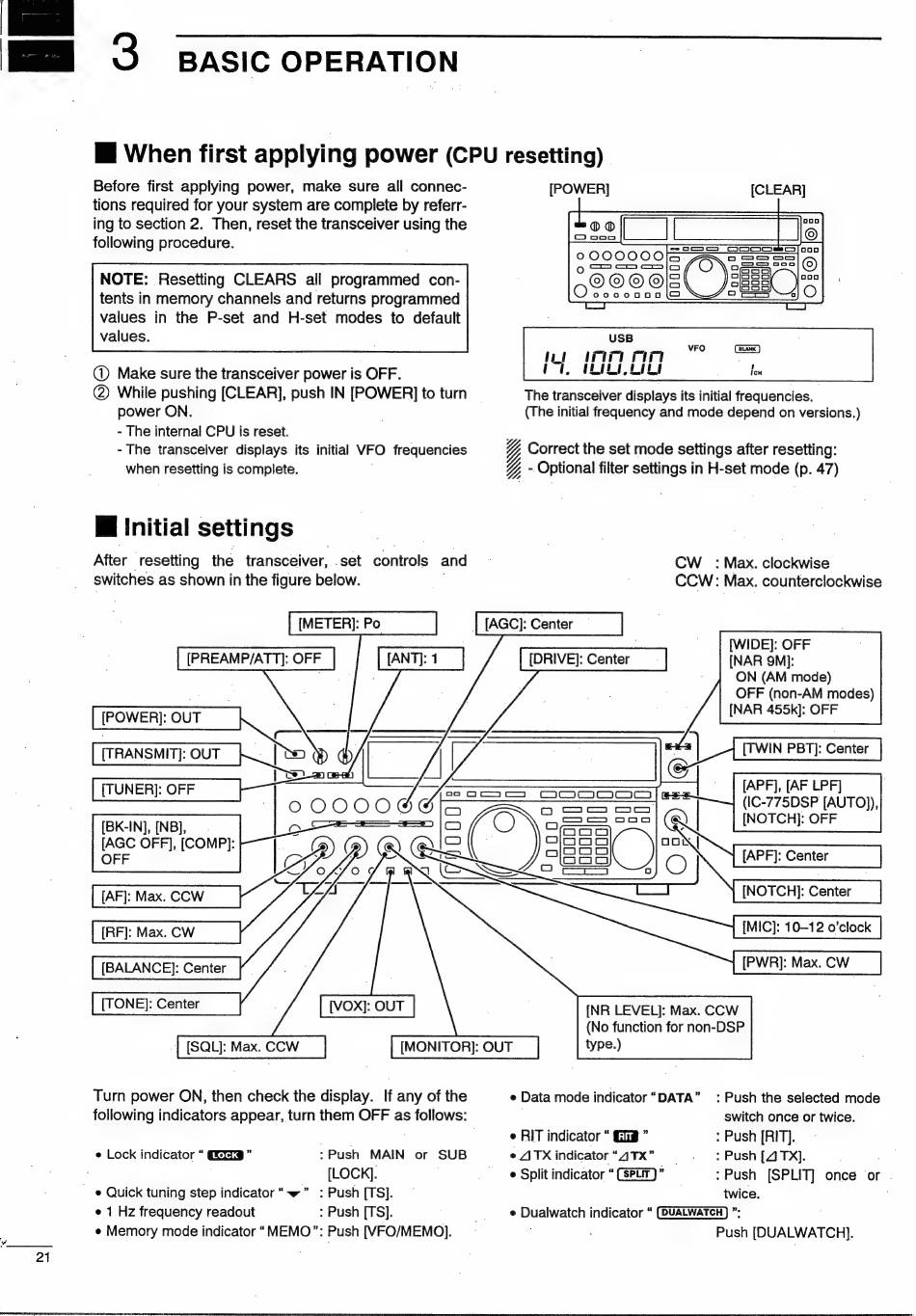

BASIC OPERATION
Before first applying power, make sure all connec-
tions required for your system are complete by referr-
ing to section 2. Then, reset the transceiver using the
following procedure.
NOTE: Resetting CLEARS all programmed con-
tents in memory channels and returns programmed
values in the P-set and H-set modes to default
values.
@ Make sure the transceiver power is OFF.
@ While pushing [CLEAR], push IN [POWER] to turn `
power ON.
- The internal CPU is reset.
- The transceiver displays its initial VFO frequencies
when resetting is complete. l
W Initial settings
After resetting the transceiver, set controls and
switches as shown in the figure below. .
[METER]: Po
| Ce us) Cee
[TUNER]: OFF
e SE
[BK-IN], [NB],
[AGC OFF], [COMP]:
OFF
-| [SQL]: Max. CCW
Turn power ON, then check the display. If any of the
following indicators. appear, turn them OFF as follows:
e Lock indicator " a: : Push MAIN or SUB
. [LOCK].
e Quick tuning step indicator "w" ` Push [TS].
e 1 Hz frequency readout : Push [TS].
e Memory mode indicator "MEMO": Push [VFO/MEMO].
21
| [AGC]: Center —
[POWER]: OUT |
; l ËCH
[TRANSMIT}: OUT K | do
eo OCICS HEH |S
[MONITOR]: OUT
W When first applying power (CPU resetting)
[POWER] [CLEAR]
The transceiver displays its initial frequencies. |
(The initial frequency and mode depend on versions.)
E Correct the set mode settings after resetting:
%, - Optional filter settings in H-set mode (p: 47)
SS
N
CW "Max clockwise
CCW: Max. counterclockwise
[WIDE]: OFF
[NAR 9M]:
ON (AM mode)
OFF (non-AM modes)
[NAR 455k]: OFF
[APF], [AF LPF]
(IC-775DSP [AUTO]),
PF]: Center
[NOTCH]: Center
[MIC]: 10-12 o'clock
[PWR]: Max. CW
{NR LEVEL]: Max. CCW
(No function for non-DSP
type.)
: Push the selected mode |
switch once or twice.
e Data mode indicator "DATA"
e RIT indicator " Gia" ` Push [RIT].
e ATX indicator "ATX" : Push LAT). | |
e Split indicator " (SPET) " : Push [SPLIT] once or |
twice.
e Dualwatch indicator " 2 !
l , Push [DUALWATCH].
