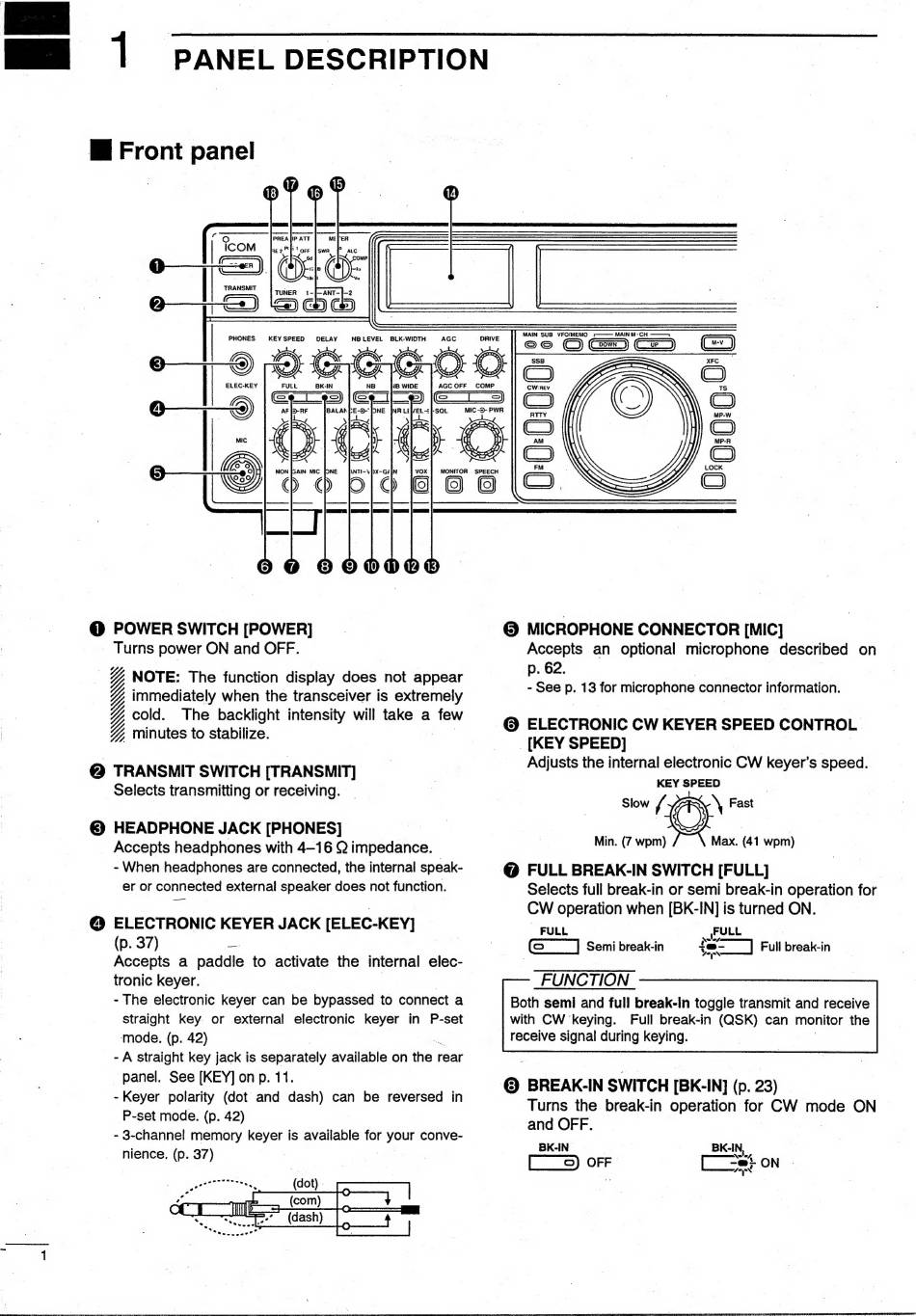

Panel Description - Icom IC-775DSP Instruction Manual

L
Wa |
E Front panel
eo— 9
ELEC-KEY
@ POWER SWITCH [POWER]
ie power ON and OFF.
NOTE: The function display does not appear
immediately when the transceiver is extremely
cold. The backlight intensity will take a few
Z, minutes to stabilize. WG
@ TRANSMIT SWITCH [TRANSMIT]
Selects transmitting or receiving.
© HEADPHONE JACK [PHONES]
Accepts headphones with 4-16 Q impedance.
- When headphones are connected, the internal speak-
er or connected external speaker does not function.
_—
@ ELECTRONIC KEYER JACK [ELEC-KEY]
(p. 37) —
Accepts a paddle to activate the internal elec-
tronic keyer.
- The electronic keyer can be bypassed to connect a
straight key. or external electronic keyer in P-set
mode, (p. 42)
- A straight key jack is separately available on the r rear
panel. See [KEY] on p. 11.
- Keyer polarity (dot and dash) can be reversed in
P-set mode. (p. 42)
- 3-channel memory keyer is available for ae conve-
nience. (p. 37)
PANEL DESCRIPTION
AGC OFF COMP
MIC- PWR
MAIN SUB VFO/MEMO r——— MAINM:-CH ——4
ee E (<a)
© MICROPHONE CONNECTOR [MIC]
Accepts an optional microphone described on
p. 62.
- See p. 13 for microphone connector information.
@ ELECTRONIC CW KEYER SPEED CONTROL
[KEY SPEED]
Adjusts the internal electronic CW keyer's speed.
KEY SPEED
Slow d N Fast
Min. (7 wpm) Max. (41 wpm)
@ FULL BREAK-IN SWITCH [FULL]
Selects full break-in or semi break-in operation for
CW operation when [BK-IN] is turned ON.
FULL FULL
Le "TI Semi break-in | Full break-in
FUNCTION
Both semi and full break-in toggle transmit and receive
with CW keying. Full break-in (QSK) can monitor the
receive signal during keying.
© BREAK-IN SWITCH [BK-IN] (p. 23)
Turns the break-in operation for CW mode ON
and OFF.
BK-IN BK-IN,
ei OFF ==} ON `
