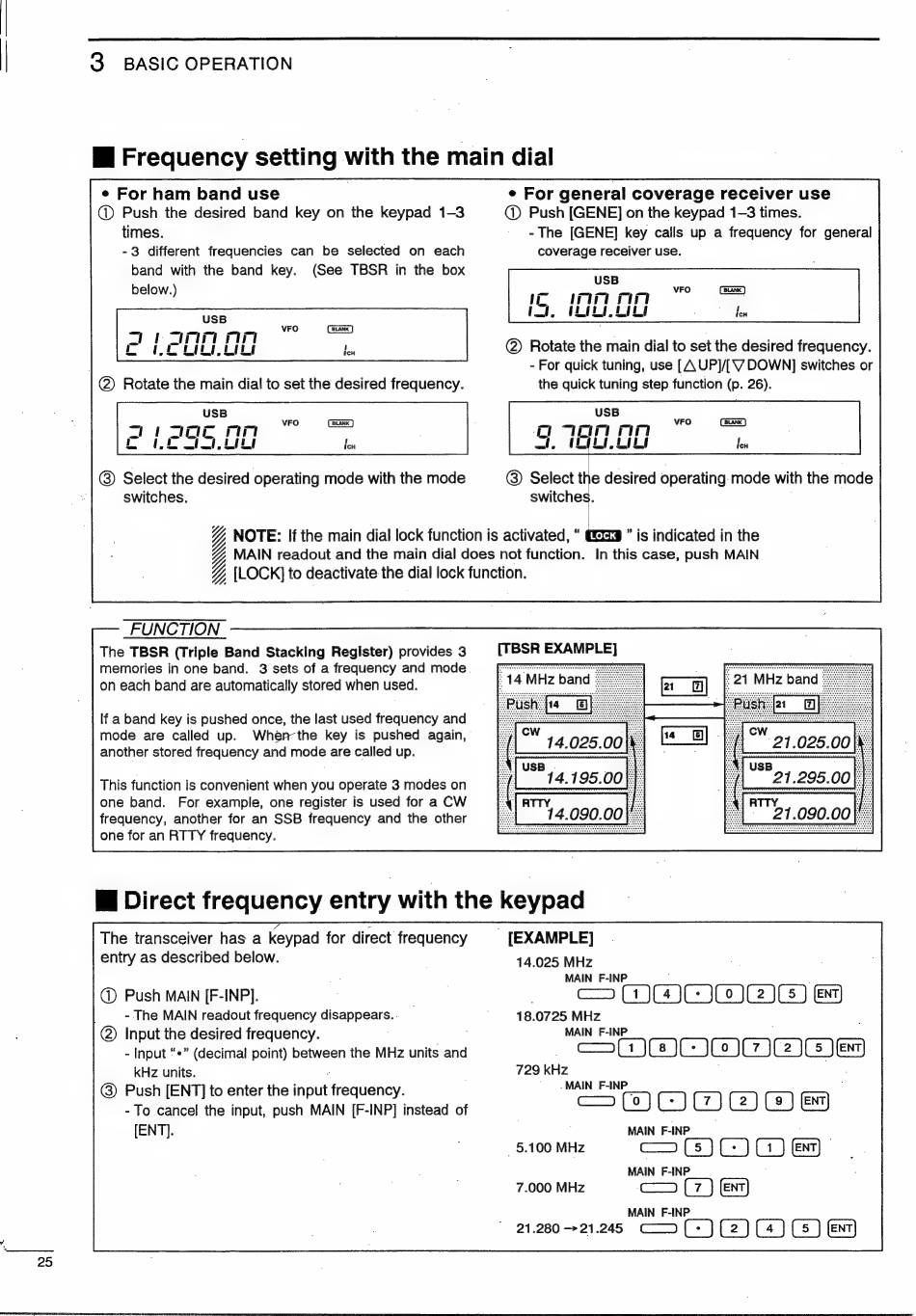

Icom IC-775DSP Instruction Manual page 28

3 BASIC OPERATION
a Frequency setting with the main dial
e For ham band use
@ Push the desired band key on the keypad 1-3
times.
-3 different frequencies can be selected on each
band with the band key. (See TBSR in the box
Select the desired operating mode with the mode
switches.
NOTE: If the main dial lock function is activated, "
e For general coverage receiver use
@ Push [GENE] on the keypad 1-3 times.
- The [GENE] key calls up a frequency for general
coverage receiver use.
@) Rotate the main dial to set the desired frequency.
- For quick tuning, use [A UP]/[ V DOWN] switches or
the quick tuning step function (p. 26).
@ Select t e desired operating. mode with the mode
" is indicated in the
MAIN readout and the main dial does not function. In this case, push MAIN
[LOCK] to deactivate the dial lock function.
FUNCTION
The TBSR (Triple Band Stacking Register) provides 3
memories in one band. 2 sets of a frequency and mode.
on each band are automatically stored when used.
If a band key is pushed once, the last used frequency and
mode are called up. Wherthe key is pushed again,
another stored frequency and mode are called up.
This function is convenient when you operate 3 modes on
one band. For example, one register is used for a CW
frequency, another for an SSB frequency and the other
one for an RTTY frequency.
[TBSR EXAMPLE]
W Direct frequency entry with the keypad
The transceiver has a keypad for direct' frequency
entry as described below.
@ Push MAIN [F-INP].
- The MAIN readout frequency disappears..
| (2) Input the desired frequency.
- Input "+" (decimal point) between the MHz units and
kHz units.
© Push [ENT] to enter the input EEN
- To cancel the input, push MAIN [F-INP] instead of
[ENT].
5.100 MHZ
[EXAMPLE]
14.025 MHz
MAIN F-INP
S EOOToo m
18.0725 MHz
MAIN F-INP
| "SOTTA
729 kHz
. MAIN F-INP
=—MOOOOS
MAIN F-INP SOOO
MAIN F-INP
> ee
MAIN F-INP
21.280 > 21.245 C—(-)(2)(4)(5)
7.000 MHz
