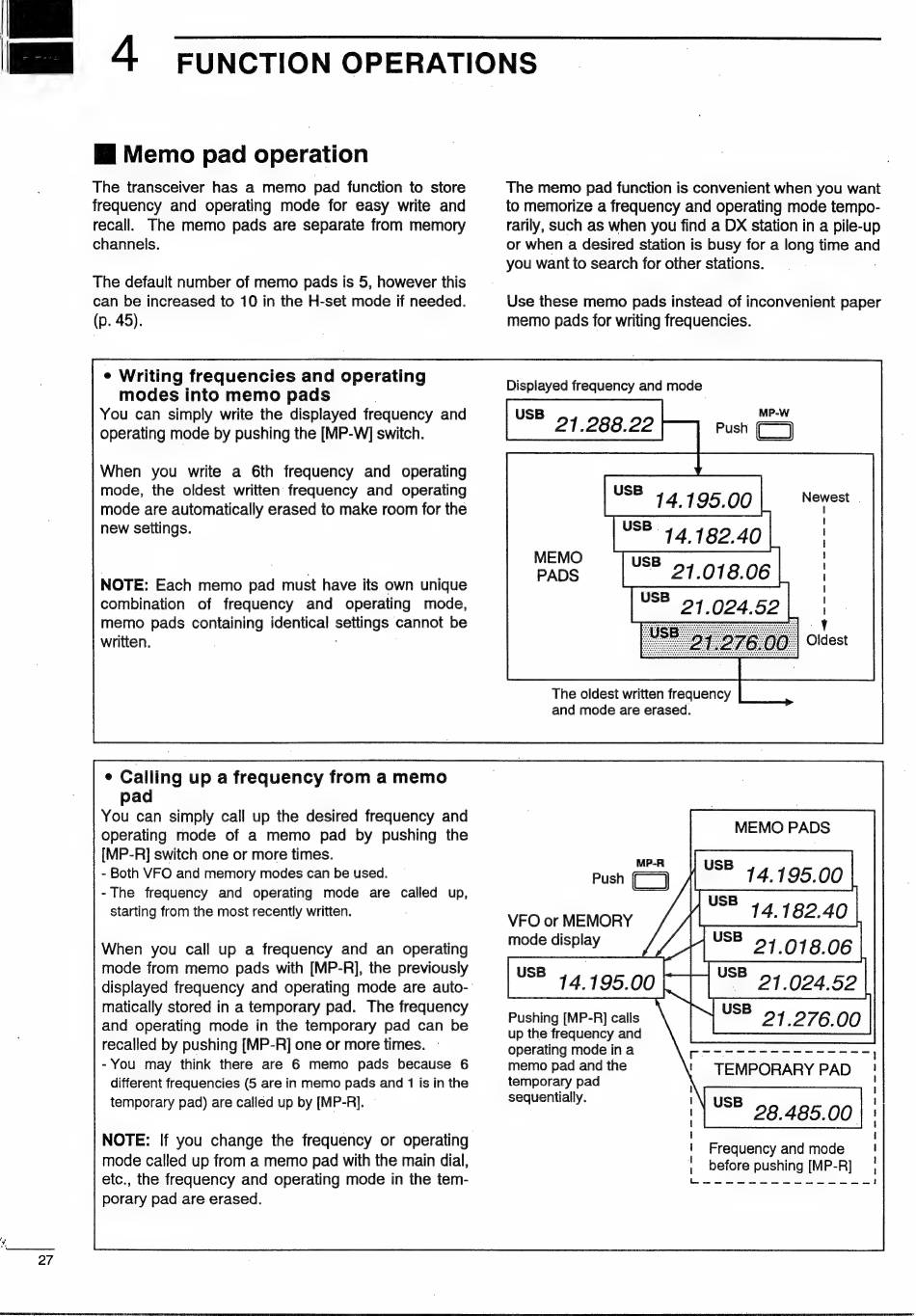

4 FUNCTION OPERATIONS
E Memo pad operation
The transceiver has a memo pad function to store
frequency and operating mode for easy write and
recall. The memo pads are separate from memory
channels.
The default number of memo pads is 5, however this
can be increased to 10 in the H-set mode if needed.
(p. 45).
e Writing frequencies and operating
modes into memo pads
You can simply write the displayed frequency and
operating mode by pushing the [MP-W] switch.
When you write a 6th frequency and operating
mode, the oldest written frequency and operating
mode are automatically erased to make room for the
new settings.
NOTE: Each memo pad must have its own unique
combination of frequency and operating mode,
memo pads containing identical settings cannot be
written. i
e Calling up a frequency from a memo
pad
You can simply call up the desired frequency and
operating mode of a memo pad by pushing the
[MP-R] switch one or more times.
- Both VFO and memory modes can be used.
- The frequency and operating mode are called up,
starting from the most recently written.
When you call up a frequency and an operating
mode from memo pads with [MP-R], the previously
displayed frequency and operating mode are auto-
matically stored in a temporary pad. The frequency
and operating mode in the temporary pad can be
recalled by pushing [MP-R] one or more times. -
- You may think there are 6 memo pads because 6
different frequencies (5 are in memo pads and 1 is in the
temporary pad) are called up by [MP-R]. `
NOTE: If you change the frequency or operating
mode called up from a memo pad with the main dial,
etc., the frequency and operating mode in the tem-
porary pad are erased.
The memo pad function is convenient when you want
to memorize a frequency and operating mode tempo-
rarily, such as when you find a DX station in a pile-up
or when a desired station is busy for a long time and
you want to search for other stations.
Use these memo pads instead of inconvenient paper
memo pads for writing frequencies.
Displayed frequency and mode
USB 21 288.22
USB 14,195.00
USB 14,182.40
Newest
l
USB 21 018.06
US
The oldest written frequency
and mode are erased.
MP-R
Push Il
SB
TEE
É
14.182.40
mode display
LH USB 21.018.06
VSB 14 195.00 <u YS? 21.024.52
Pushing [MP-R] calls JSB 21.276.00
up the frequency and
operating mode na Nr
memo pad and the
temporary pad
sequentially.
USB 14,195.00
U
YSB 268,485.00
Frequency and mode
before pushing [MP-R]
