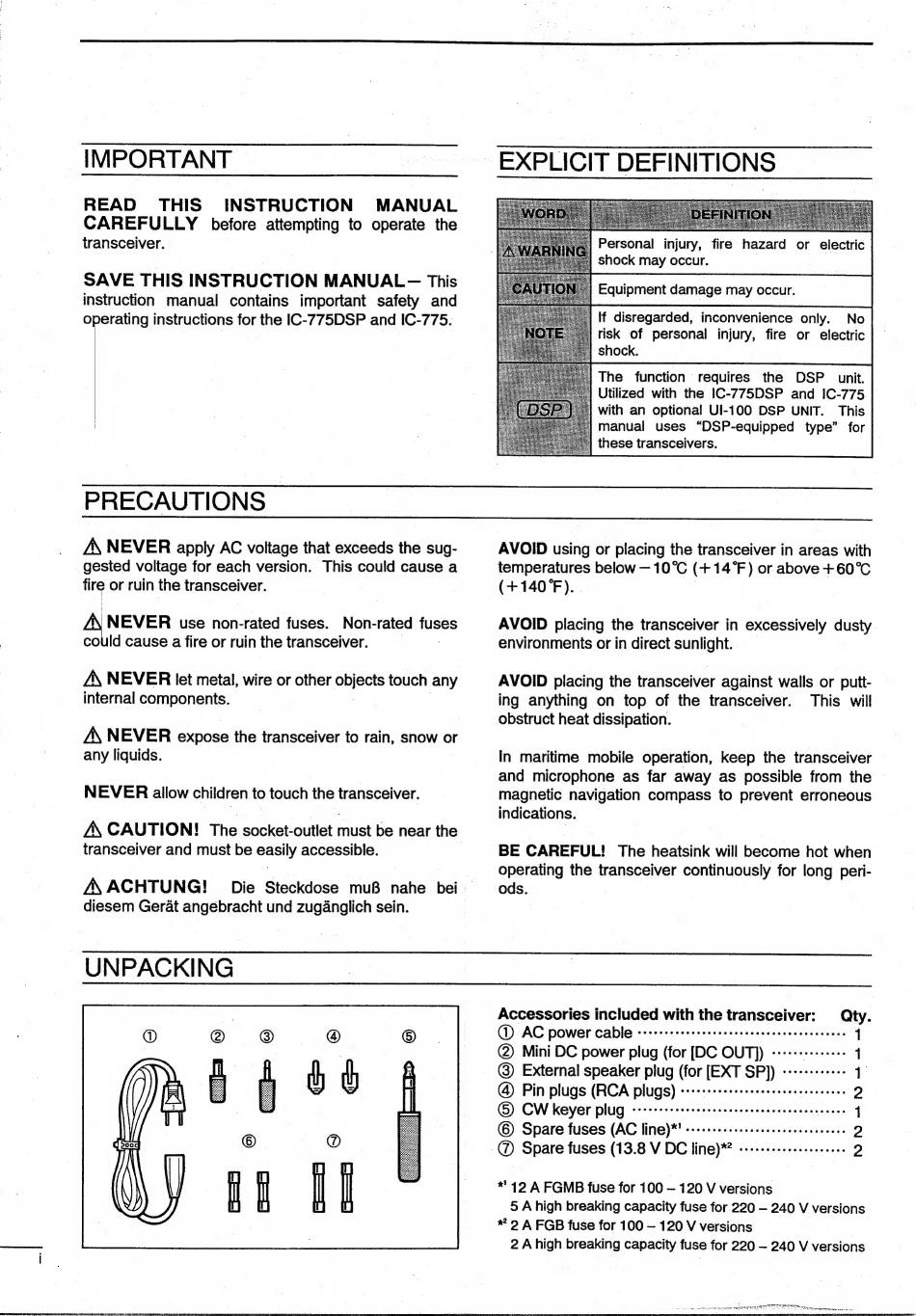

Icom IC-775DSP Instruction Manual page 2

IMPORTANT
READ THIS INSTRUCTION MANUAL
CAREFULLY before attempting to operate the
transceiver.
SAVE THIS INSTRUCTION MANUAL — This
instruction manual contains important safety and
operating instructions for the IC-775DSP and IC-775.
PRECAUTIONS
EXPLICIT DEFINITIONS
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
H disregarded, inconvenience only. No
risk of personal injury, fire or electric
d The function requires the DSP unit.
| Utilized with the IC-775DSP and IC-775
with an optional UI-100 DSP UNIT. This
manual uses "DSP-equipped type" for
| these transceivers.
AA NEVER apply AC voltage that exceeds the sug-
gested voltage for each version. This could cause a
fire or ruin the transceiver.
| NEVER use non-rated fuses. Non-rated fuses
ould cause a fire or ruin the transceiver.
 NEVER let metal, wire or other Si touch any
internal components.
AA NEVER expose the transceiver to rain, snow or
any liquids.
NEVER allow children to touch the transceiver.
ÁA CAUTION! The socket-outlet must be near the
transceiver and must be easily accessible.
AA ACHTUNG! Die Steckdose muß nahe bei
diesem Gerät angebracht und zugänglich sein.
UNPACKING
AVOID using or placing the transceiver in areas with
temperatures below — 10°C (+14°F) or above +60°C
(+140 °F).
AVOID placing the transceiver in excessively dusty
environments or in direct sunlight.
AVOID placing the transceiver against walls or putt-
ing anything on top of the transceiver. This will
obstruct heat dissipation.
In maritime mobile operation, keep the transceiver
and microphone as far away as possible from the
magnetic navigation compass to prevent erroneous
indications.
BE CAREFUL! The heatsink will become hot when
operating the transceiver continuously for long peri-
ods.
Accessories included with the transceiver: Qty.
©) AC power cable socesossocsosososocossesoceccesoeoossoo 1
@ Mini DC power plug (for [DC OUT]) ———— NAH 1
@ External speaker plug (for [EXT SP]) © 1
Gi Pin plugs (RCA plugs) KEENT KEE ECKE 2
© OW keyer plug ---rreseeeeeeeeeseeeeeeeceeeseeeeeeeeees 1
O) Spare fuses (AC line)*' EE 2
CO Spare fuses (13.8 V DC line)*? ee 2
*' 12 A FGMB fuse for 100 — 120 V versions
5 A high breaking capacity fuse for 220 — 240 V versions
* 2 A FGB fuse for 100 — 120 V versions
