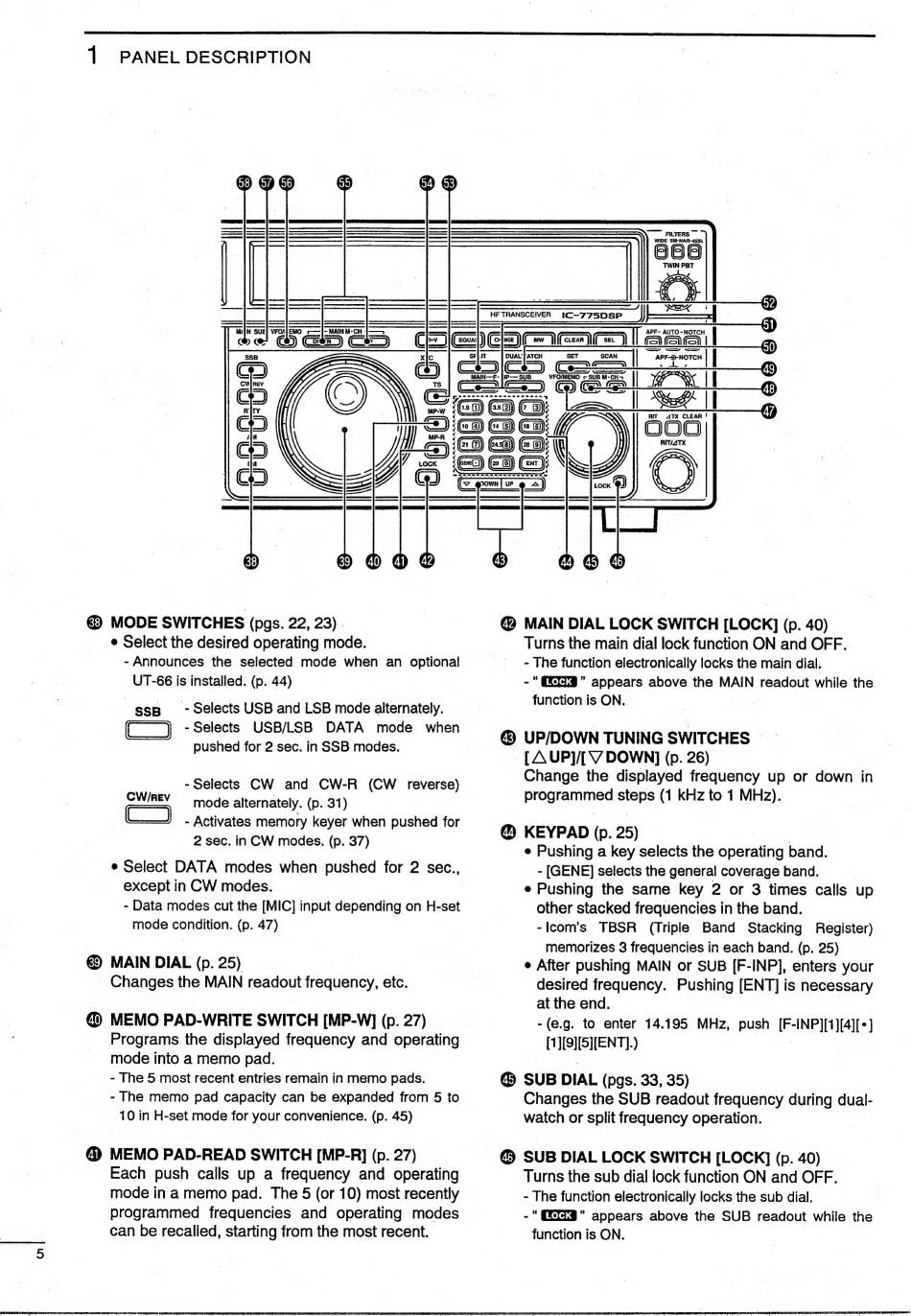

1 PANEL DESCRIPTION
€ MODE SWITCHES (pgs. 22, 23) .
e Select the desired operating mode.
- Announces the selected mode when an optional
UT-66 is installed. (p. 44)
-ssp - Selects USB and LSB mode alternately.
- Selects USB/LSB DATA mode when
pushed for 2 sec. in SSB modes.
- Selects CW and CW-R (CW reverse)
mode alternately. (p. 31)
- Activates memory keyer when pushed for
2 sec. in CW modes. (p. 37)
CW/REV
e Select DATA modes when pushed for 2 sec.,
except in CW modes.
- Data modes cut the [MIC] input depending on H-set
mode condition. (p. 47)
€ MAIN DIAL (p. 25)
Changes the MAIN readout frequency, etc.
@ MEMO PAD-WRITE SWITCH [MP-W] (p. 27)
Programs. the displayed frequency and operating
mode into a memo pad.
- The 5 most recent entries remain in memo pads.
- The memo pad capacity can be expanded from 5 to
10 in H-set mode for your convenience. (p. 45)
@ MEMO PAD-READ SWITCH [MP-R] (p. 27)
Each push calls up a frequency and operating
mode in a memo pad. The 5 (or 10) most recently
programmed frequencies and operating modes
can be recalled, starting from the most recent.
SEET EC
ae les
SS Se
GIE EIER
Ire
oren |
( ) |e)
Cs SH SG || DER
5 a Sls St
eje JO
APF- AUTO -NOTCH
ANAI
'[ATCH eeng = | APF-2-NOTCH
RIT ATX CLEAR
RITIATX
SH
@ MAIN DIAL LOCK SWITCH [LOCK] (p. 40)
Turns the main dial lock function ON and OFF.
- The function electronically locks the main dial.
"DD" appears above the MAIN readout while the
function is ON.
@ UP/DOWN TUNING SWITCHES `
[ AUP]/[V DOWN] (p. 26)
Change the displayed frequency up or down in
programmed steps (1 kHz to 1 MHz).
@ KEYPAD (p. 25) .
e Pushing a key selects the operating band.
- [GENE] selects the general coverage band.
e Pushing the same key 2 or 3 times calls up
other stacked frequencies in the band.
-Icom's TBSR (Triple Band Stacking Register)
memorizes 3 frequencies in each band. (p. 25)
e After pushing MAIN or SUB [F-INP], enters your
desired frequency. Pushing [ENT] is necessary
at the end..
- (e.g. to enter 14.195 MHz, push PEI ]
[9] [5}[ENT].)
@ SUB DIAL (pgs. 33, 35)
Changes the SUB readout frequency during dual-
watch or split frequency operation.
@ SUB DIAL LOCK SWITCH [LOCK] (p. 40)
Turns the sub dial lock function ON and OFF.
- The function electronically locks the sub dial.
- " Œ" appears above the SUB readout while the
function is ON.
