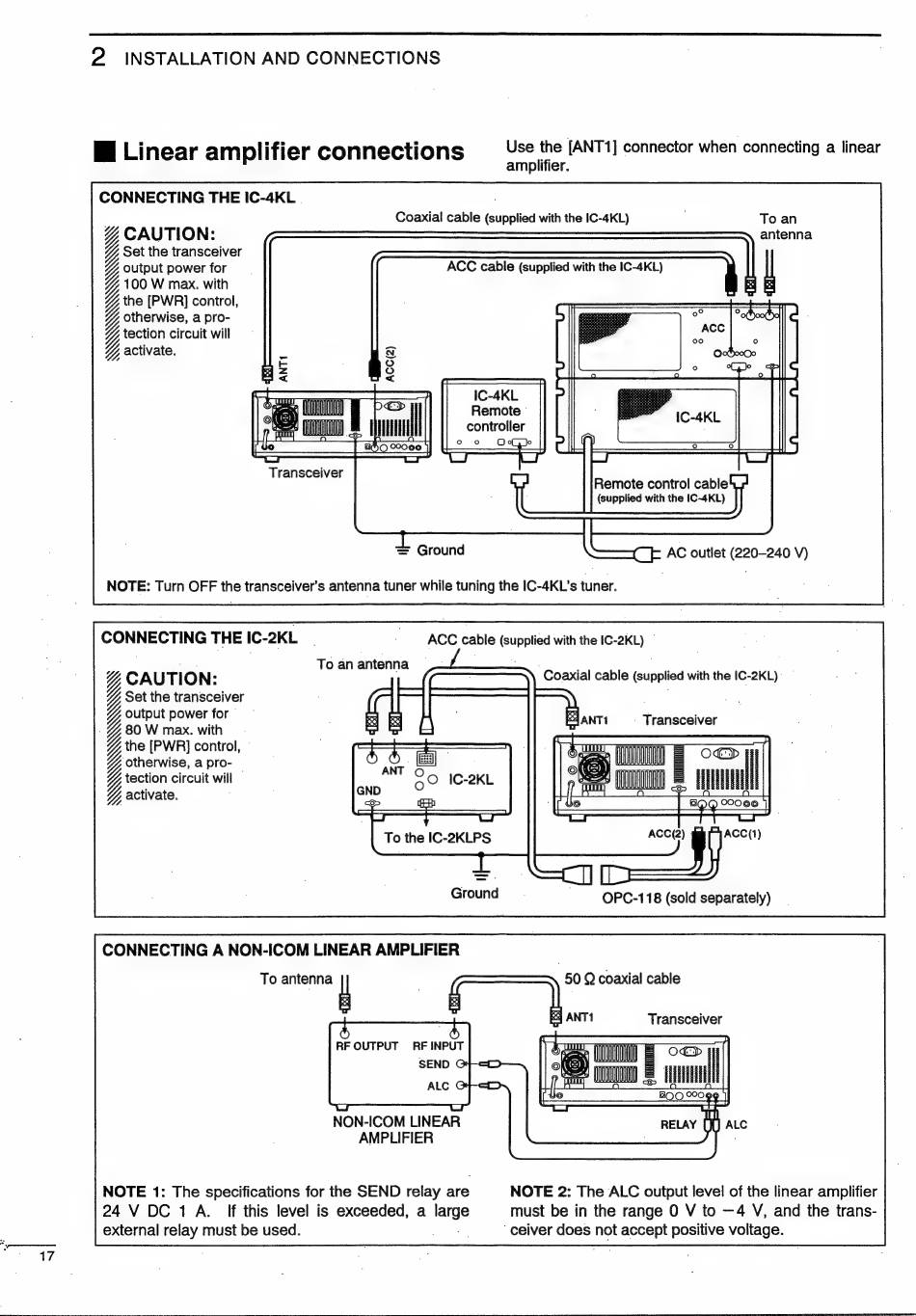

2 INSTALLATION AND CONNECTIONS
E Linear amplifier connections Use the [ANT1] connector when connecting a linear
amplifier.
CONNECTING THE IC-4KL |
Coaxial cable (supplied with the IC-4KL) | To an
% CAUTION: antenna
GY :
Y Set the transceiver: |
ZY output power for ACC cable (supplied with the IC-4KL)
E 100 W max. with
p GZ the [PWR] control,
p otherwise, a pro-
Yy tection circuit will
% activate.
IC-4KL
ec omy pej Remote `
ea Wi ml controller
IT N 2
(supplied with the IC-4KL)
(C E AC outlet (220-240 V)
NOTE: Turn OFF the transceiver's antenna tuner while tuning the IC-4KL's tuner.
CONNECTING THE IC-2KL | | ACC cable (supplied with the 1C-2KL)
To an antenna
Y, output power for
p 80 W max. with
Y the [PWR] control,
'otherwise, a pro- —
tection circuit will
, activate. i GND
O O
SH 5° IC-2KL
SC WM
LL C)
©
E —— SE n pod
ACC(2) i
Ground OPC-118 (sold separately)
CONNECTING A NON-ICOM LINEAR AMPLIFIER |
To antenna l 50Q coaxial cable
æ d
RF OUTPUT RF INPUT
NON-ICOM LINEAR
AMPLIFIER
NOTE 1: The specifications for the SEND relay are NOTE 2: The ALC output level of the linear amplifier
24 V DC 1A. If this level is exceeded, a large must be in the range 0 V to —4 V, and the trans-
external relay must be used. l ` ceiver does not accept positive voltage.
