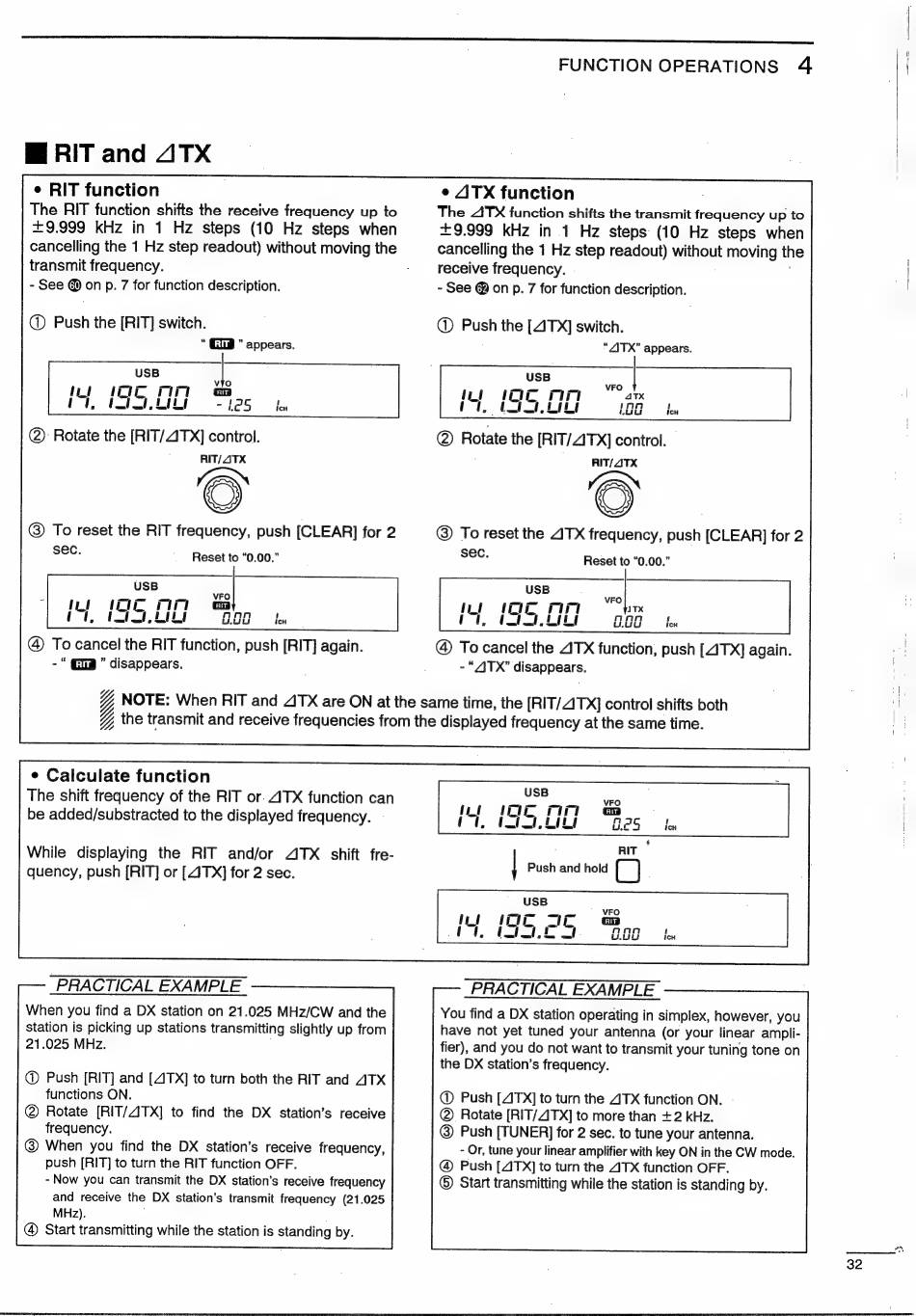

Icom IC-775DSP Instruction Manual page 37

W RIT and ATX
e RIT function
The RIT function shifts the receive frequency up to
+9.999 kHz in 1 Hz steps (10 Hz steps when
cancelling the 1 Hz step readout) without moving the
transmit frequency.
- See @ on p. 7 for function description.
@ Push the [RIT] switch.
"E" appears.
D Rotate the [RIT/ ATX] control.
RIT/ ATX
@) To reset the RIT frequency, push [CLEAR] for 2
sec. Reset to "0.00."
USB
VFO
IO IOC yr
(H. LAAL HUDD do
@® To cancel the RIT function, push [RIT] again.
- " Gig " disappears.
e Calculate function
The shift frequency of the RIT or- ATX function can
be added/substracted to the displayed frequency. |
While displaying the RIT and/or ATX shift fre-
quency, push [RIT] or [ATX] for 2 sec.
"PRACTICAL EXAMPLE
When you find a DX station on 21.025 MHz/CW and the
station is picking up stations transmitting slightly up from
21.025 MHz.
@ Push [RIT] and [ATX] to turn both the RIT and ATX
functions ON.
@ Rotate [RIT/ATX] to find the DX station's receive
frequency.
@ Start transmitting while the station is standing by.
FUNCTION OPERATIONS 4
e ATX function i
The ATX function shifts the transmit frequency up to
+9.999
kHz in 1 Hz steps (10 Hz steps when
cancelling the 1 Hz step readout) without moving th
receive frequency.
- See @ on p. 7 for function description.
@ Push the [ATX] switch.
i " ATX" appears.
II IOC nm ATX
Qt, fa fr LILI LIDD Ak
@ Rotate the [RIT/ ATX] control.
RIT/ ATX
Reset to "0.00."
| Push and hold (J |
PRACTICAL EXAMPLE
- Or, tune your linear amplifier with key ON in the CW mode.
@ Push [ATX] to turn the ATX function OFF.
© Start transmitting while the station is standing by.
32
