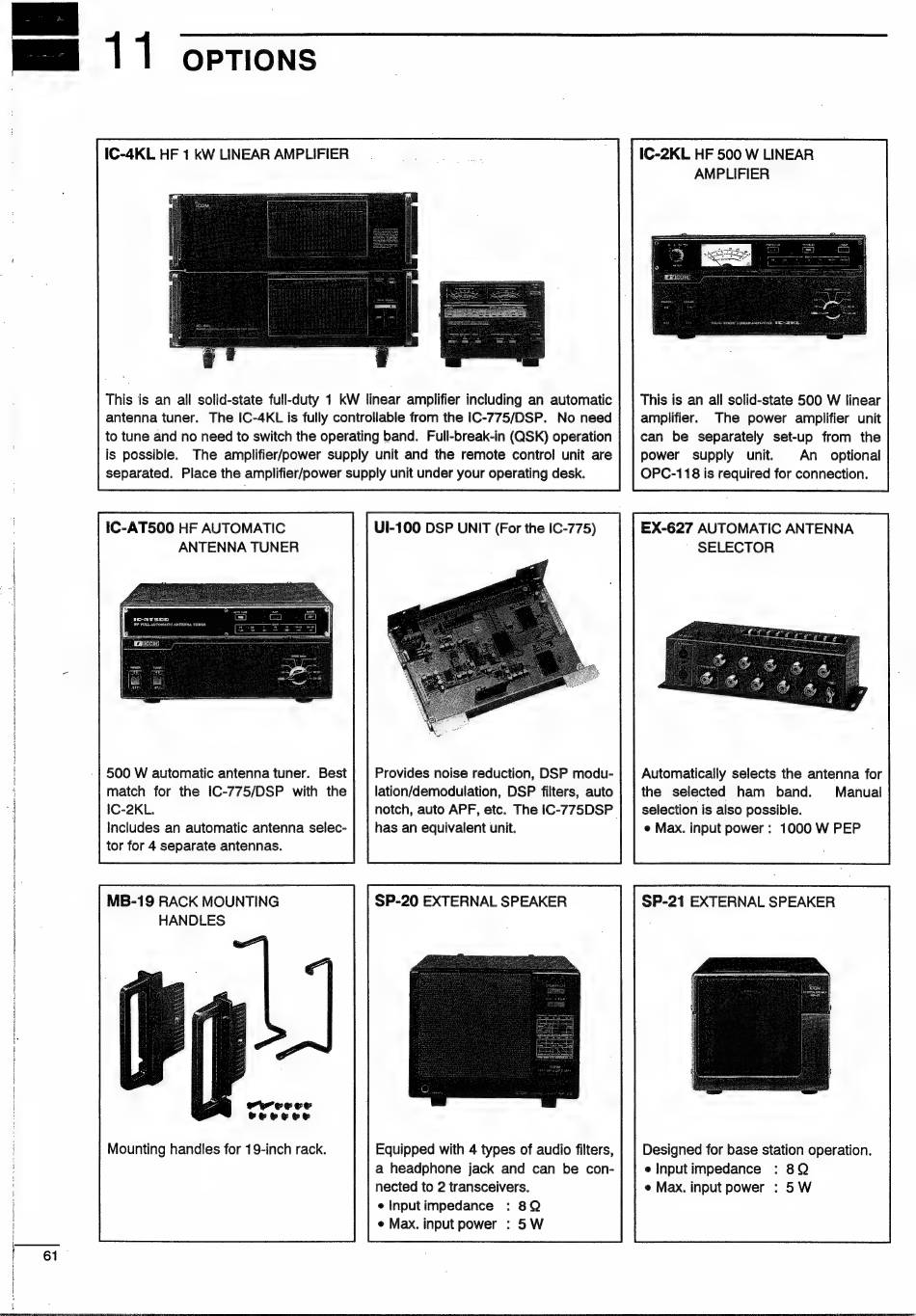

OPTIONS
IC-4KL HF 1 kW LINEAR AMPLIFIER
IC-AT500 HF AUTOMATIC
ANTENNA TUNER
500 W automatic antenna tuner. Best
match for the IC-775/DSP with the
IC-2KL.
Includes an automatic antenna selec-
tor for 4 separate antennas.
MB-19 RACK MOUNTING
HANDLES
Mounting handles for 19-inch rack.
This is an all solid-state full-duty 1 kW linear amplifier including an automatic
antenna tuner. The IC-4KL is fully controllable from the IC-775/DSP. No need
to tune and no need to switch the operating band. Full-break-in (QSK) operation
is possible. The amplifier/power supply unit and the remote contro! unit are
separated. Place the amplifier/power supply unit under your operating desk.
UI-100 DSP UNIT (For the IC-775)
Provides noise reduction, DSP modu-
lation/demodulation, DSP filters, auto
notch, auto APF, etc. The IC-775DSP
has an equivalent unit.
SP-20 EXTERNAL SPEAKER
Equipped with 4 types of audio filters,
a headphone jack and can be con-
nected to 2 transceivers.
e Input impedance : 8Q
e Max. input power ` DW
IC-2KL HF 500 W LINEAR
AMPLIFIER
This is an all solid-state 500 W linear
amplifier. The power amplifier unit
can be separately set-up from the
power supply unit. An optional
OPC-118 is required for connection.
EX-627 AUTOMATIC ANTENNA
SELECTOR
Automatically selects the antenna for
the selected ham band. Manual
selection is also possible.
e Max. input power ` 1000 W PEP
SP-21 EXTERNAL SPEAKER
Designed for base station operation.
e Input impedance : 8Q
e Max. input power ` 5 W
