3G-SC200 Data-Voice-Video Power Solutions Installation Guide

Typical Data-Voice-Video Power Solutions DC Power Systems

Typical system
(rectifiers only)
DC distribution section.
Input/Output (I/O) board (on back of door). See details on
page 4.
System controller. See details on page 4. (For more details
refer to the relevant system controller handbook listed
under Related Information on page i.)
AC distribution with isolator switch and surge protection
(located behind door on some models).
Rectifier magazine(s)* for up to 10 Access Power Rectifiers
(APR24-3G, APR48-3G) per magazine. See details of
rectifiers on page 3.

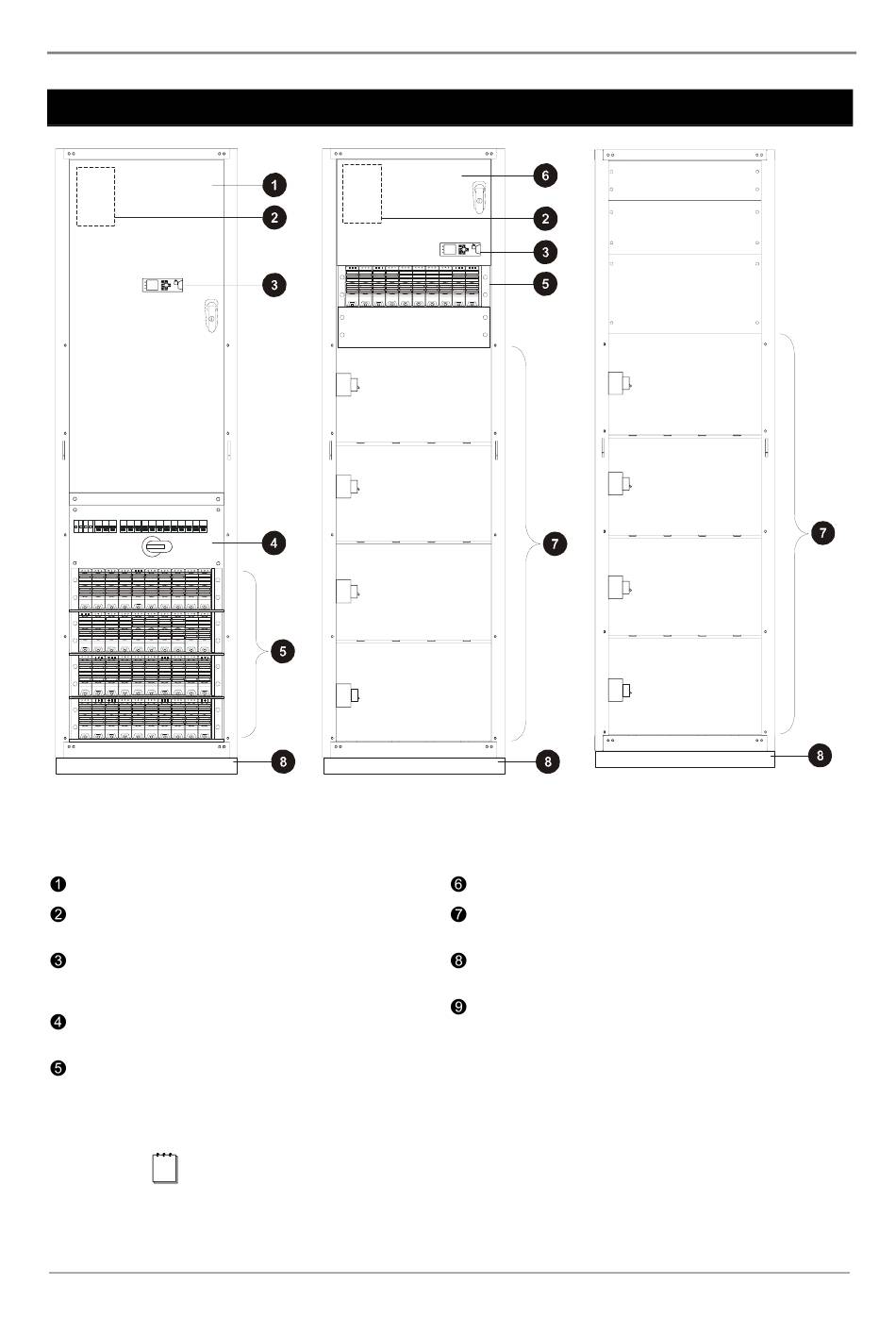

These diagrams show typical layouts of 43U high racks. Actual system configuration may vary
from that shown.
2
Typical system with
integrated batteries
Copyright © 2005-2007 Eaton Corporation. All Rights Reserved.
IPN 997-00012-54A
Battery rack (option)
Combined AC and DC distribution section.
Battery shelves with battery MCBs. (A battery shelf front
cover is also supplied, but is not shown.)
Optional plinth for use with raised floors (Eaton part
number: PLINIR-A00). Refer to details on page 18.
An optional security door (not shown) is also available.
July 2007
