Step 1 – CS04-A11 placement and orientation
Step 2 – Drill the mounting holes
70
CS04-A11 current sensors must always be mounted onto the LIVE bus bar.
(See following diagram.)
Wherever possible, do not mount the CS04-A11 current sensor closer than
150mm (6") from:
•
A bus bar joint
•
Termination bolts
•
Bolts joining laminated bus bars

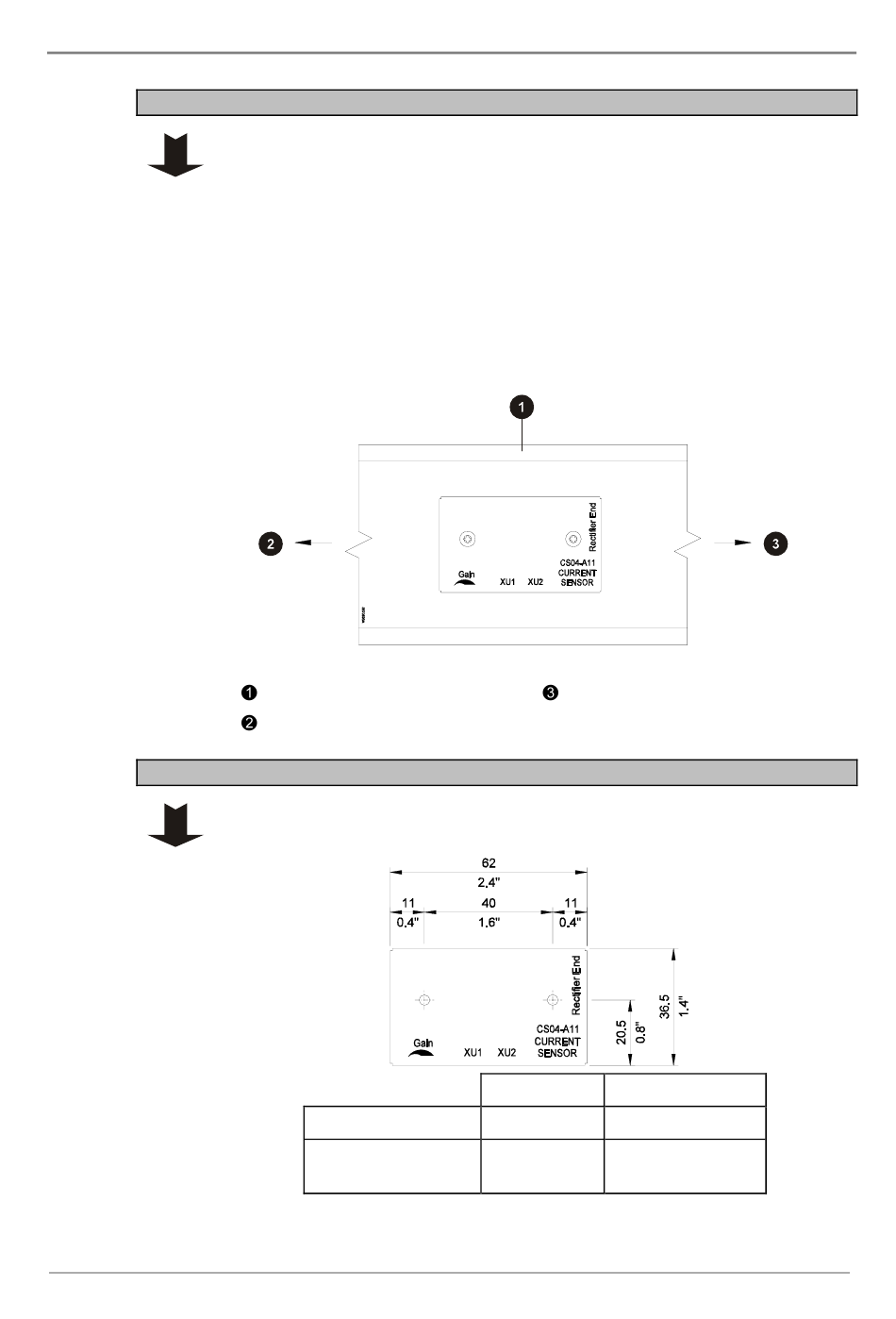

Ensure correct orientation of the CS04-A11 current sensor before drilling the
mounting holes into the bus bar. (See following diagram.)
Live bus
To load or battery
Drill two mounting holes according to the template below and tap if the
threaded-hole mounting option is used.
Drill size
Thread size and pitch
