3G-SC200 Data-Voice-Video Power Solutions Installation Guide

SC200 System Controller

The SC200 system controller is an advanced control and monitoring solution for the
Powerware 3G range of DC power systems.
The SC200 provides a full suite of advanced communications options, including built-in
Ethernet interface, Web server, and SNMP agent.
Alarm notifications may be by SNMP traps, SMS text messaging, dial-out to PowerManagerII
remote monitoring software, or relay contact closures.
The SC200 is supplied pre-configured with either a default configuration file, or with one
factory customized for a particular application. Some configuration file changes can be made
with the keypad, or all settings can be changed via a PC connected to the USB interface. For
details refer to the SC200 Operation Handbook (see Related Information on page i).
See Troubleshooting on page 44 for details of SC200 alarms. For connector pin-outs refer to
the SC200 Operation Handbook (see Related Information on page i).

Input/Output Board

The input/output (I/O) board provides the I/O interfaces and connections for the SC200
system controller.
The I/O board includes a range of sense inputs for DC power system control and
monitoring. It also allows real time data collection from building services and other external
devices, and relay outputs for alarm signals or control of external devices.
4
Copyright © 2005-2007 Eaton Corporation. All Rights Reserved.
IPN 997-00012-54A

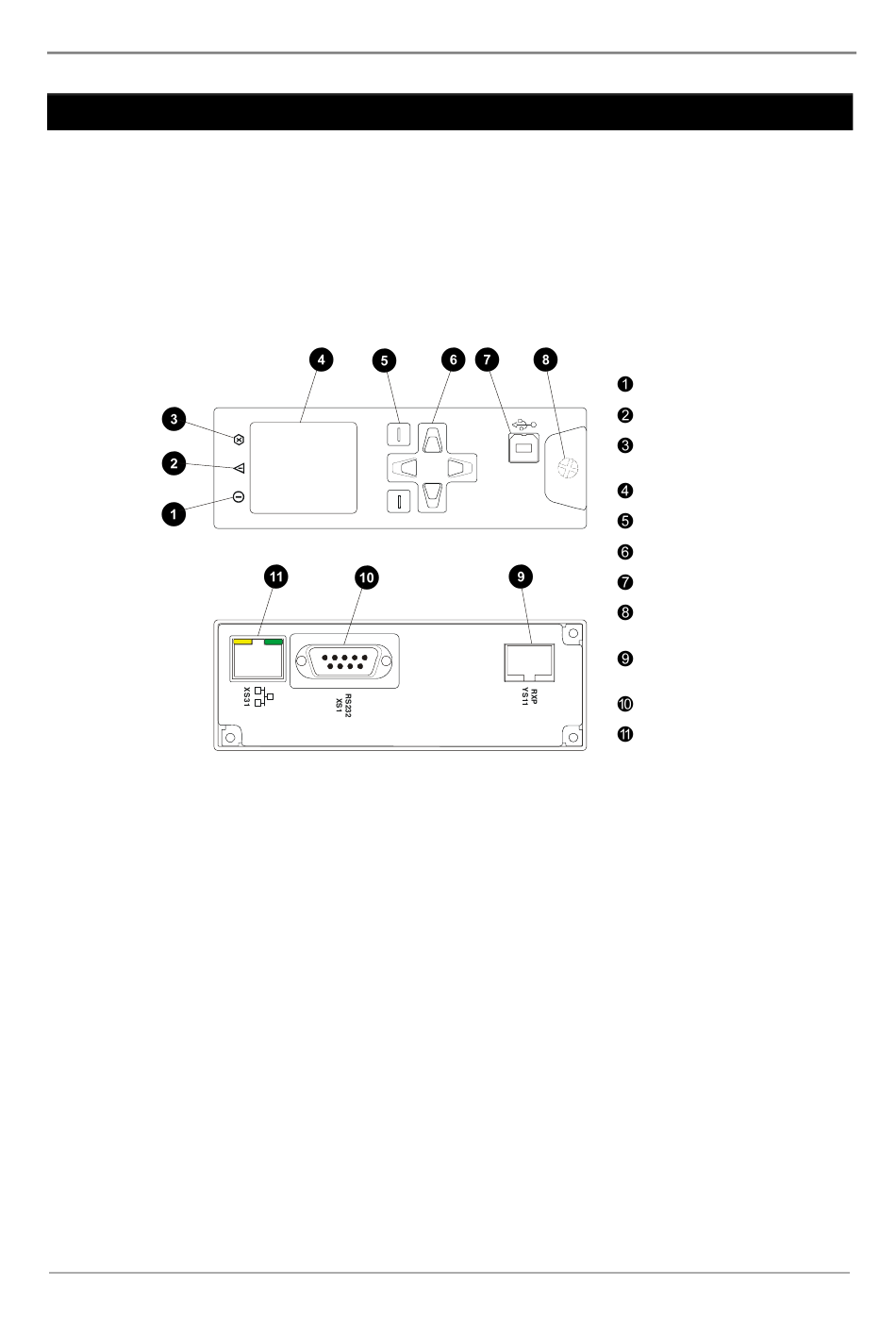

Power on LED (green)
Minor alarm LED (yellow)
Critical/Major alarm LED
(red)
Color LCD display
Soft keys (2)
Navigation keys (4)
USB 1.1 connector (12Mb/s)
Retaining screw (under
cover)
Ethernet connector and
status LEDs
RS232 connector
Power and system
communications connector
