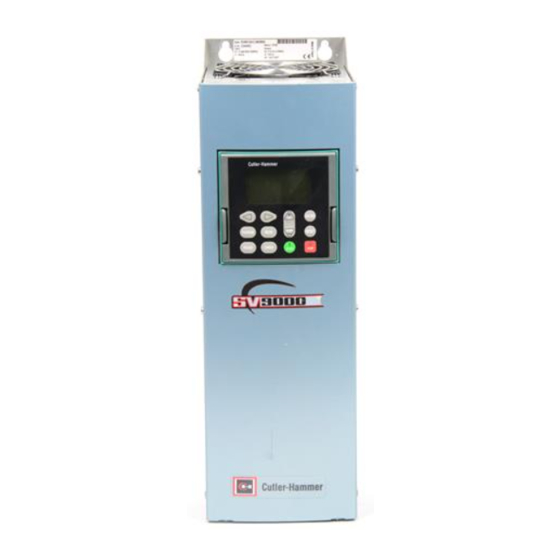

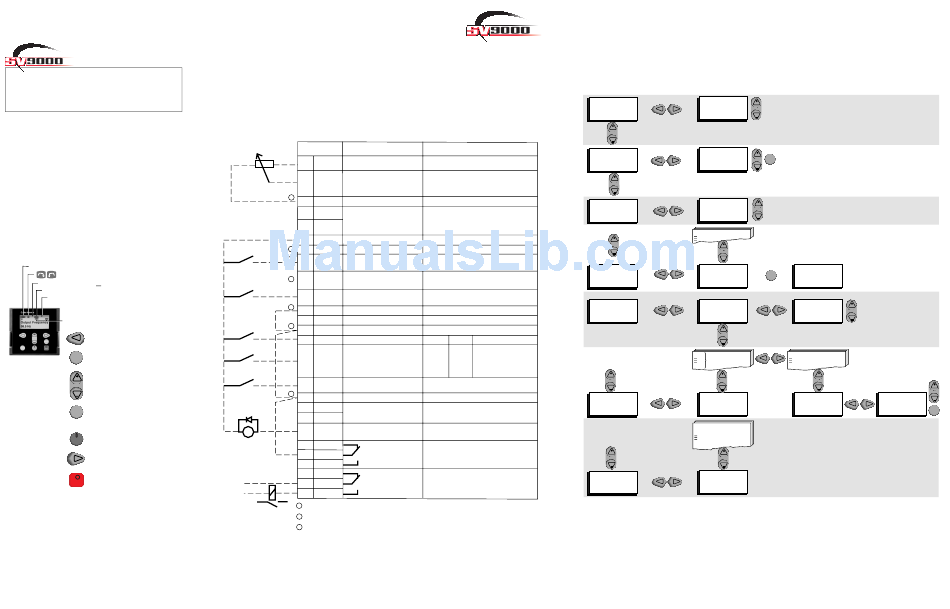

QUICK REFERENCE GUIDE
Important: This guide is intended to provide a quick reference to
the SV9000's BASIC and STANDARD features for startup,
programming and service. It does not replace the need to thoroughly
read and understand the User Manual and SVReady™ Application
Manual.
Shipped from the factory, the SV9000 drive has (7) SVReady
Applications, with the drive's default set to BASIC Application. This
guide is based on the use of the BASIC or STANDARD Application
outlined in the User Manual and SVReady Application Manual.
For the BASIC Application –
Control I/O signals are fixed and not programmable.
For the STANDARD Application –
DIA1-DIA3, Control I/O signals as well as output signals R01-R02 are
programmable.
Other applications have different terminal block assignments and
different parameter numbers or functions. These may be selected from
System Parameter Group 0, parameter P0.1. Refer to the SV9000 User
Manual for detailed information.
1
SVMulti-line™ CONTROL PANEL OPERATION
RESET
UP
DOWN
ENTER
START
2
• Go to menu screen M4.
Shipped from the factory the SV9000 is set to run forward from a contact closure at input DIA1, and to run in reverse from a contact closure at input
DIA2. To Run from a Keypad Setting –
• Press the UP/DOWN BROWSER button to go to application
screen B2.
• Press the ENTER button to switch from remote control to panel
control.
• Press the START button to start the drive.
Reference Potentiometer
Terminal
Signal
Ω
1-10 k
1
+10V
Reference Output
ref
Analog Input Voltage
2
V
+
in
(range = 0-10V DC)
3
GND
I/O Ground
I
+
4
in
Analog Input Current
(range 0-20mA)
I
5
in
6
+24V
Control Voltage Output¿
7
GND
I/O Ground
Start Forward
DIA1
8
(programmable in STANDARD)
Start Reverse
9
DIA2
(programmable in STANDARD)
Start Reverse
10
DIA3
(programmable in STANDARD)
CMA
D1A1-D1A3 Common
11
+24V
Control Voltage Output
12
GND
13
I/O Ground
14
DIB4
Multi-Step Speed Select 1
15
DIB5
Multi-Step Speed Select 2
16
DIB6
Fault Reset
CMB
Common
17
I
+
18
Output Frequency
out
READY
Analog Output
19
I
out
Digital Output
20
D01
READY
(50mA)
21
R01
Relay Output 1
22
R01
RUN
23
R01
24
R02
FAULT
Relay Output 2
25
R02
220V AC
FAULT
Max.
26
R02
GND terminals 3, 7 and 13 are internally connected.
For the STANDARD Application, input signals at D1A1 and D1A2 are programmed as a pair using parameter 2.1.
Connect CMA/CMB inputs to either logic high or logic low depending upon your application. Refer
to the SV9000 User Manual and SVReady Application Manual for additional information.
• Go to menu screen M3.
• Press the RIGHT MENU button until R1 starts to blink.
• Press the UP BROWSER button to the desired motor frequency.
• Go to menu screen M1 and view the output motor frequency.
Description
Potentiometer Voltage, etc.
Frequency reference activated when
terminals 14
15 are open and
&
parameter 1.17 = 0 (default value)
Reference and Control GND
Frequency reference activated when
terminals 14
15 are closed or
&
If parameter 1.17 = 1, when terminals
14
15 are open.
&
Switch Voltage, etc. (0.1A max.)
Reference and Control Ground
Contact Closed = Start Forward
Contact Closed = Start Reverse
Contact Open = No Fault
Contact Closed = Fault
Connect to GND or +24V
Switch Voltage, etc. (0.1A max.)
Reference and Control Ground
D1B4
D1B5
Freq. Ref
open
open
Ref. V
(parameter 1.17=0)
in
open
closed
Multi-Step Ref. 1
open
closed
Multi-Step Ref. 2
closed
closed
Ref. I
(Terms. 4
5)
&
in
Contact Open = No Action
Contact Closed = Fault Reset
Connect to GND or +24V
Programmable in STANDARD (parameter 3.1)
(range 0-20mA/R
max. 500Ohm)
L
Programmable in STANDARD (parameter 3.6)
Open Collector (I
≤
50mA, V
≤
48V DC)
Programmable in STANDARD (parameter 3.7)
Programmable in STANDARD (parameter 3.8)
3
Use the LEFT and RIGHT MENU buttons to enter the desired menu, then the UP and DOWN BROWSER button to access the desired
item.
MENU SCREENS
SUB-MENU SCREENS
UP
C1
M7
Contrast
Contrast
DOWN
15
15
UP
DOWN
H1
M6
Fault History
2. Overvoltage
F 1-9
DOWN
UP
DOWN
F1
M5
1. Overcurrent
Active Faults
DOWN
F 1-9
B2 Panel Control
UP
UP
DOWN
DOWN
M4
B1
Reverse
Buttons
1
B 1-4
M3
R1
Freq. Reference
Reference
R1
58.5 Hz
UP
DOWN
G2
Special Param.
G12
UP
UP
DOWN
DOWN
M2
G1
Basic Param.
Parameter
P 1-15
G 1-12
V2 Motor Speed
V3 Motor Current
V20 MotorTemp. Rise
UP
UP
DOWN
DOWN
M1
V1
Output Frequency
Monitor
58.5 Hz
V 1-20
UP
ENTER
Fault History Reset
UP
Scroll the Active Fault List
B1
ENTER
Reverse
0
UP
R1
Freq. Reference
58.5 Hz
DOWN
P1.2
P12.x
UP
DOWN
UP
DOWN
P1.1
P1.1
Min. Frequency
Min. Frequency
ENTER
12.34 Hz
12.34 Hz
