Step 2 - Unpack the power system
Before the DC power system is unpacked, ensure that:
1
•
The site has been thoroughly cleaned and is dust free. (It is
strongly recommended that you do NOT unpack the power system
until all building work at the site has been completed. If building
work is still in progress, store the power system in its original
packaging in a dry and level location inside the building.)
•
Lifting equipment and at least two people are available. (Without
lifting equipment four people are required to move the power
system safely.)
When the site is clean and dust free, remove the packaging from the
2
power system and stand the rack upright.
Carefully inspect the power system for possible damage that may have
3
occurred while in transit. Report any damage immediately, using a
copy of the Equipment Incident Report on page 91.
Step 3 - Fix the cabinet(s) directly to the floor (if required)
Ignore this step if the site has a raised floor.

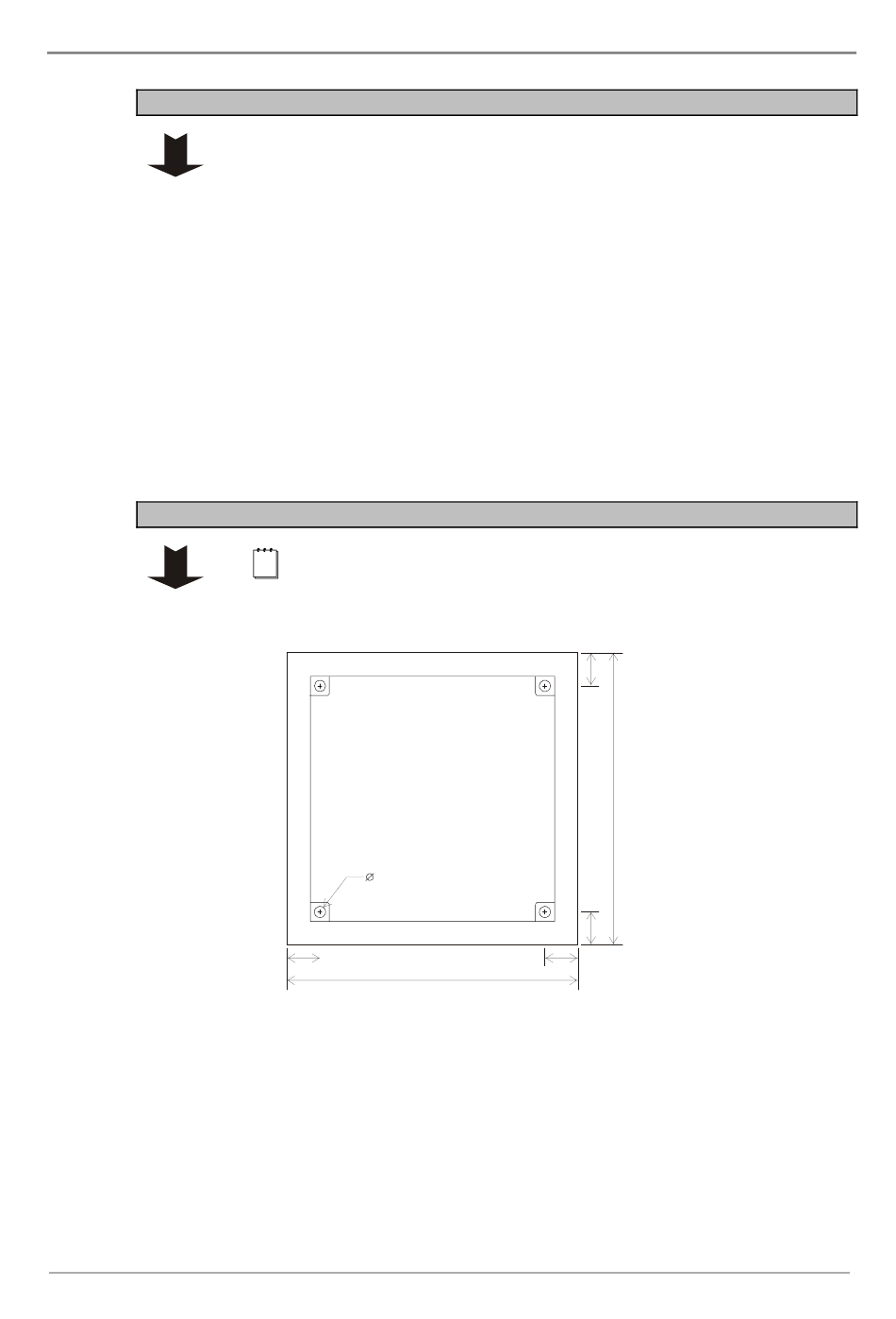

Mark the positions of fixing holes on the floor using the following
1
template. Allow for the required clearances (see Step 1).
Drill the mounting holes. Remove any shavings and dust.
2
Before moving the cabinet(s), ensure that:
3
•
protective floor coverings are in place (if required)
•
the floor can support the weight of the power system.
Copyright © 2005-2007 Eaton Corporation. All Rights Reserved.
23mm (0.9")
68mm (2.7")
68mm (2.7")
600mm (23.6")
IPN 997-00012-54A
July 2007
68mm
(2.7")
600mm
(23.6")
68mm
(2.7")
Installation
19
