Summary of Contents for Eaton SCD24

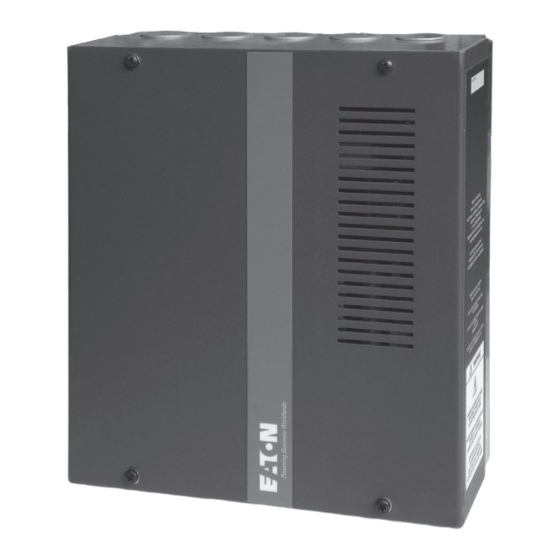

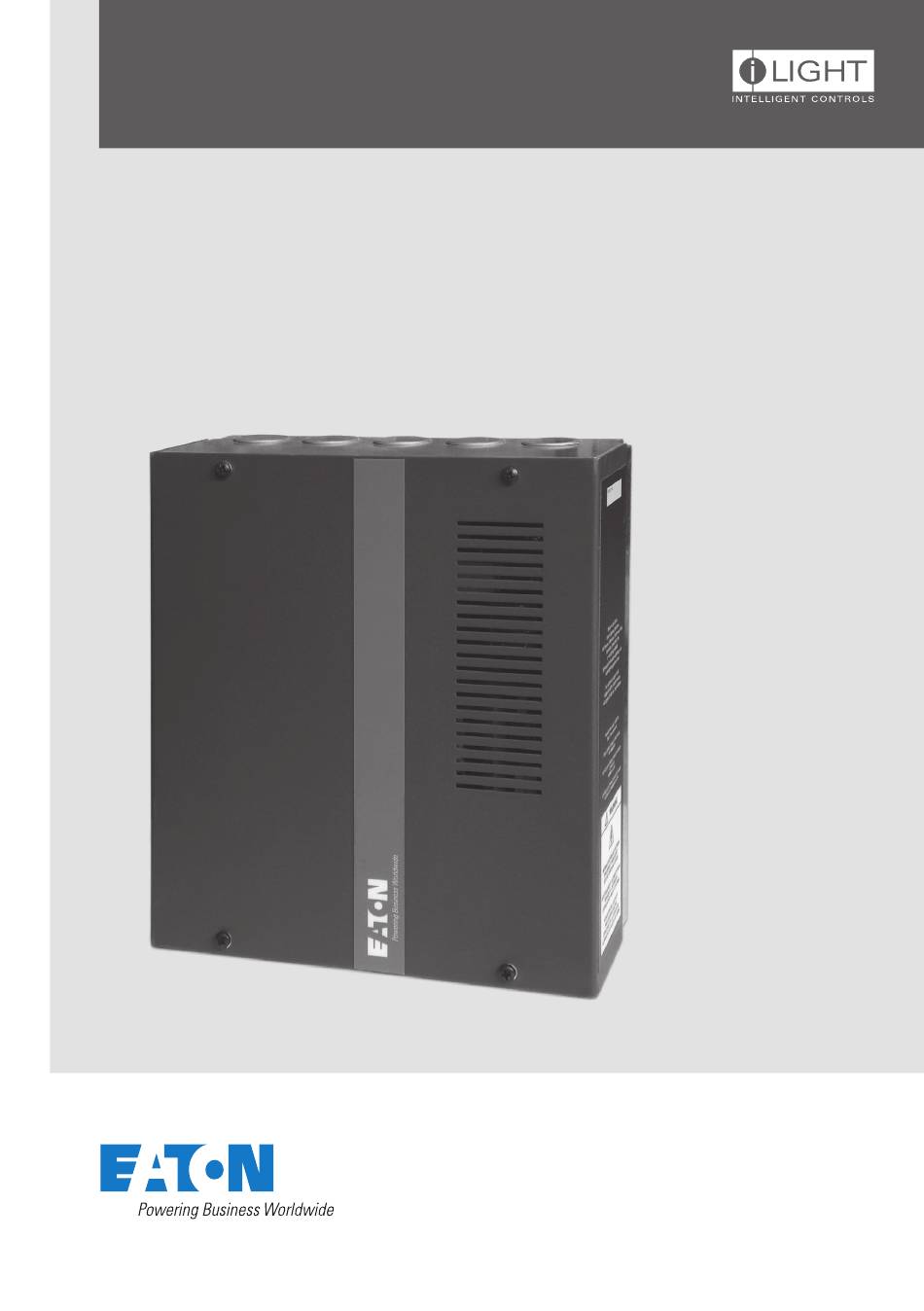

- Page 1 Installation guide SCD24 24 Channel DMX Source Controller...
-
Page 2: Table Of Contents
Contents Introduction Dimensions Technical Data Mounting DMX Connections Connecting to the Mains Network Connections Network Termination Service Switches and LEDs Eaton Lighting Systems iLight Product Series - SCD24 IM7524 iss 4... -
Page 3: Introduction
FLASH memory to be able to upgrade software EEPROM for 128 scene memory Fade Times: 0.1 seconds to 60 minutes Environmental Data Temperature: 0 C to 40 Humidity: 0 to 95% non-condensing Dimensions Eaton Lighting Systems iLight Product Series - SCD24 IM7524 iss 4... -
Page 4: Mounting
Recommended minimum clearance around the unit is 100mm each side of the unit and 50mm above and below the unit if trunking with a depth greater than 50mm is used. DMX Connections The SCD24 has 24 channels of DMX that can be configured via the iLight programming software. -
Page 5: Network Connections
Termination On = Jumper across upper pins Termination Off = Jumper across lower pins IMPORTANT: Ensure jumper is in the off position for all devices other than those at the the end-of-line. Eaton Lighting Systems iLight Product Series - SCD24 IM7524 iss 4... -
Page 6: Service Switches And Leds
It is still possible to enter Diagnostic mode if a Source Controller is in iCAN network error status. Eaton Lighting Systems iLight Product Series - SCD24 IM7524 iss 4... -
Page 7: Eaton Lighting Systems Ilight Product Series - Scd24 Im7524 Iss 4
If power is cycled to the Source Controller then this will also take the unit out of override mode and it will start up in the default running status. Eaton Lighting Systems iLight Product Series - SCD24 IM7524 iss 4... - Page 8 Email: TechSupportCC@eaton.com Web: www.iLight.info All products manufactured by Eaton Lighting Systems and identified with the iLight product series mark are warranted to be free from defects in material and workmanship and shall conform to and perform in accordance with Seller’s written specifications. For detailed warranty information, contact Eaton Lighting Systems.
