3G-SC200 Data-Voice-Video Power Solutions Installation Guide
Step 3 - Connect battery cables to battery fuses (if required)
24
If the DC distribution does not have battery fuses then ignore this step. See
the diagram on page 2 for location of the DC distribution.
Remove all battery fuse links.
1
Ensure that the fuse fail detection boards are fitted as shown.
(When a fuse link is replaced ensure the board is removed from the
blown fuse and re-fitted to a new striker type fuse link).
Terminate the battery live cable(s) at the battery fuse(s).
2
Terminate the battery common cable(s) at the DC common bar.
3
Copyright © 2005-2007 Eaton Corporation. All Rights Reserved.
IPN 997-00012-54A

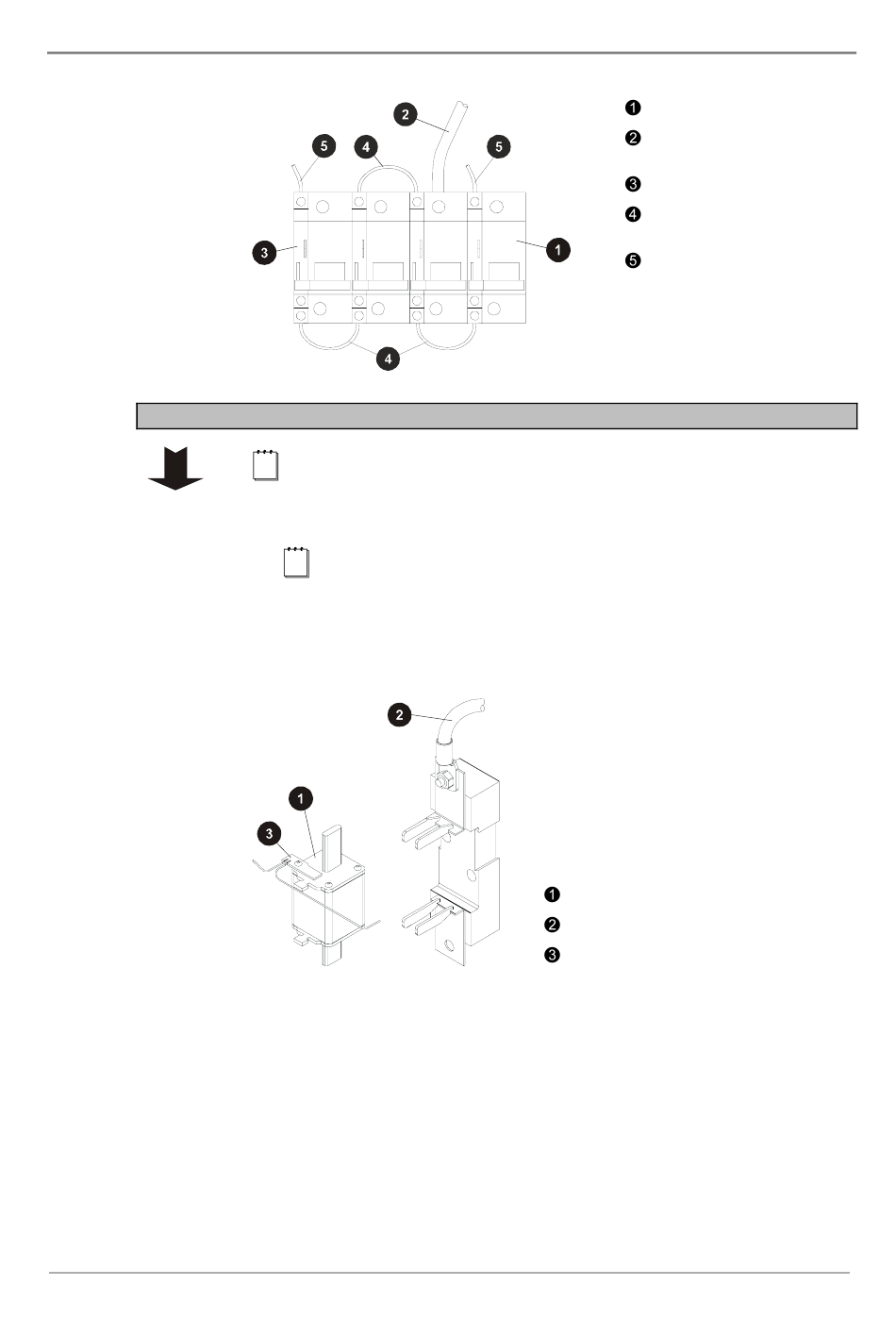

Battery MCBs
Battery live cable (one only
shown)
Auxiliary switches
Fuse fail detection links
between auxiliary switches
Fuse fail detection wires to
fuse fail detection board
Battery fuse link (striker type)
Battery live cable
Fuse fail detection board
July 2007
