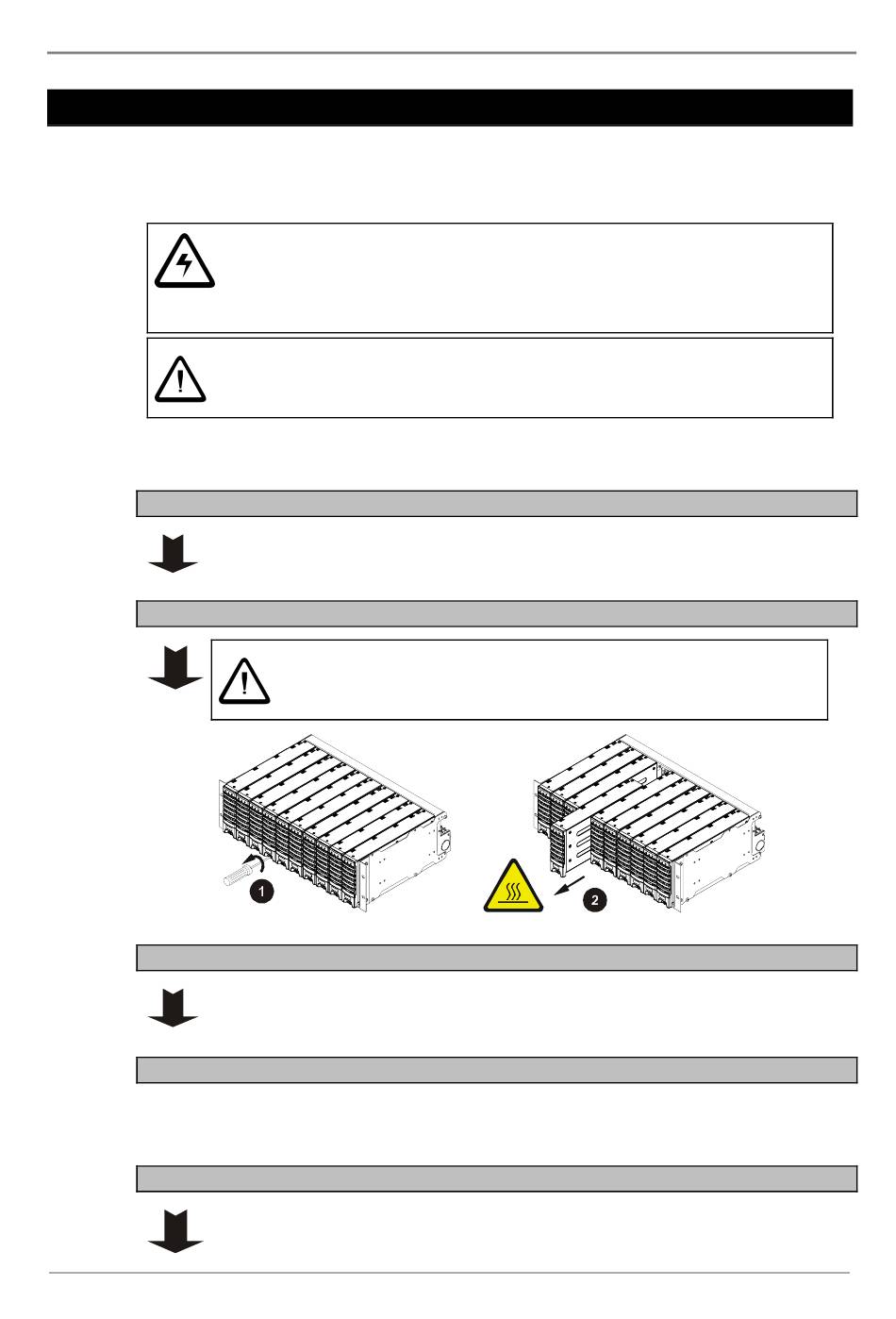

Replacing a Rectifier

Rectifiers can be replaced without switching off the DC power system and disconnecting the
equipment it powers.
Removing a Rectifier
Step 1 - Undo the rectifier retaining screw
This will release the rectifier from its rear connector.
Step 2 - Pull out the rectifier
Step 3 - Replace rectifier or fit blank panel
Insert a replacement rectifier into the empty slot (see details in following
section), or fit a blank panel (RMB1U-00).
Procedure complete
Installing a Replacement Rectifier
Step 1 - Align the rectifier with the guides
48
•
To reduce the risk of electric shock and maintain optimum system cooling, always
cover empty rectifier slots with blanking panels.
•
To avoid electric shock do not place hands inside the rectifier shelf.
•
Do not attempt to disassemble faulty rectifiers. Return them (in their original
packaging) with a copy of the Equipment Incident Report on page 91.
•
The rectifier may be hot, especially after prolonged operation. Use suitable
gloves.
•
To avoid damage do not rest the rectifier on its connector.
•
The rectifier may be hot, especially after prolonged operation. Use
suitable gloves.
•
To avoid damage do not rest the rectifier on its connector.
