3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the M20 router and its components. This in-
formation includes:

• Components

• Information on installation
• Power supply
• RST button
• Data connection
3.1 Components

3.1.1 Front panel

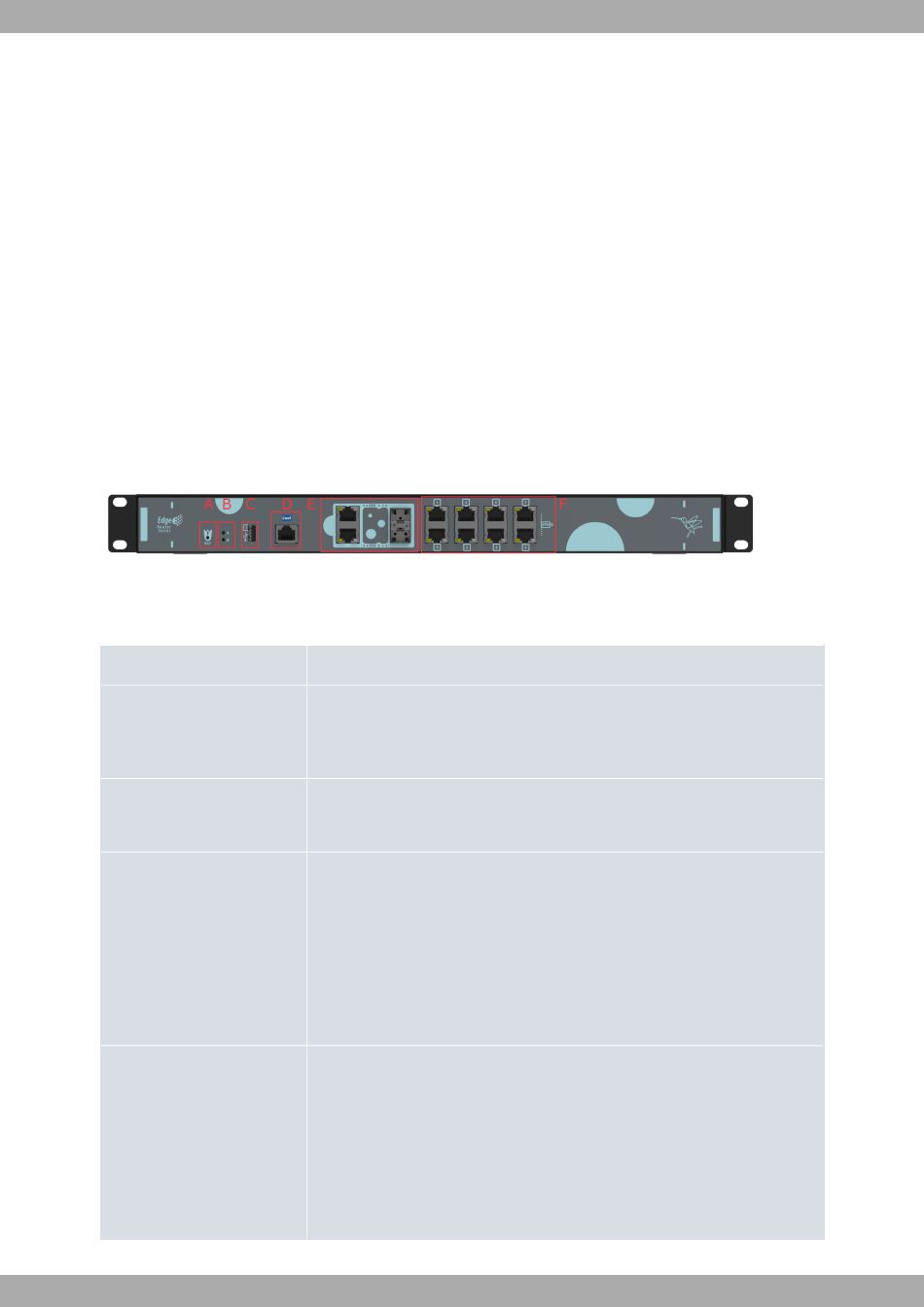

The following figure shows the front panel. Here you will find the majority of the M20 router connectors.
Front Panel
Fig. 2:
The front panel components are as follows:
Front panel components
Item
A
B
C
D
4
Description
RST. Reset button.
For further information on how the reset button works, please see
page 10.
LED panel.
For detailed information on the LEDs, refer to
USB 3.0 (Super Speed) Port.
The USB Port does not provide data connections and are intended for mainten-
ance use only.
For more information on the USB connector, refer to:
- USB 3.0 connector on page 20
- USB interface on page 21
Conf.
Provides access to the M20 local console for configuring and monitoring pur-
poses. For more information, refer to:
- Connecting for configuration
- Configuration connector on page 20
- Configuration interface on page 21
LEDs on page 5
on page 12
Windbit
RST button on
M20 Edge Router
