A.3 Updating the software
The M20 router family can be updated to new versions. Please contact your dealer for further details on new re-
leases.
There are several ways to update a Windbit router. For further information, please see OSDX documentation
(https://support.teldat.com/osdx-doc), System Administration, Upgrade section.
Example:
Log into the M20 CLI via the local console, or using SSH or Telnet on any interface if either of these services are en-
abled. You will need a user (admin) and a password (admin)
Issue the command image add <imagefile> to upload the new image:
admin@osdx$ image add http://madrid.storage.id.teldat.com/osdx_images/ci_builds/master-latest/ares/os_ares.img
using firmware update url: http://madrid.storage.id.teldat.com/osdx_images/ci_builds/master-latest/are/os_ares.img
% Total
100 161M 100
Signature OK
Starting upgrade to Windbit OSDx 202306081215.7a9c446-master-snapshot
Size check
Copying files
Copying current configuration
Setting up bootloader
Bootloader upgrade check
Updating environment...
Bootloader update NOT needed
Execute additional upgrade steps from new version
Cleaning up
Successful upgrade to Windbit OSDx 202306081215.7a9c446-master-snapshot
Run "reboot now" to boot from new version
A.4 Connectors

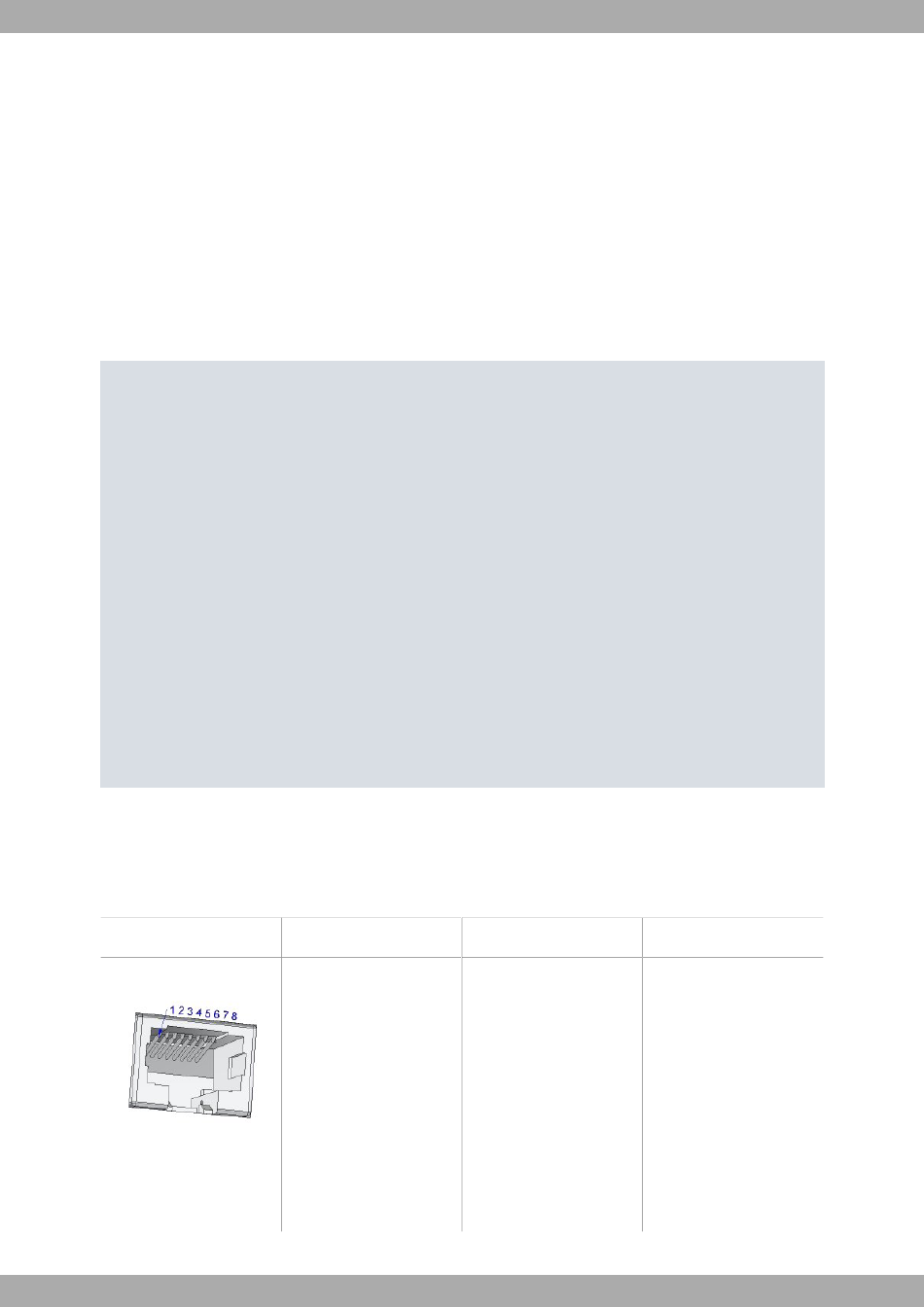

A.4.1 Ethernet RJ45 connector
RJ45 LAN
M20 Edge Router
% Received % Xferd Average Speed
Dload
161M 0 0 53.8M
RJ45 PIN
1
2
3
4
5
6
7
8
Time Time Time
Upload Total Spent Left
0 0:00:03 0:00:03 --:--:-- 53.8M
FE Signals
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
Current
Speed
GE Signals
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
Technical Information
