3 Components and Power Supply
Warning
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
We recommend connecting all data devices to the same power source regardless of whether the work-
place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other
power supplies (such as lighting, etc.). This will help prevent malfunctions and premature aging of the
drivers and other components.

3.4 RST button

The different RST button features are described below.

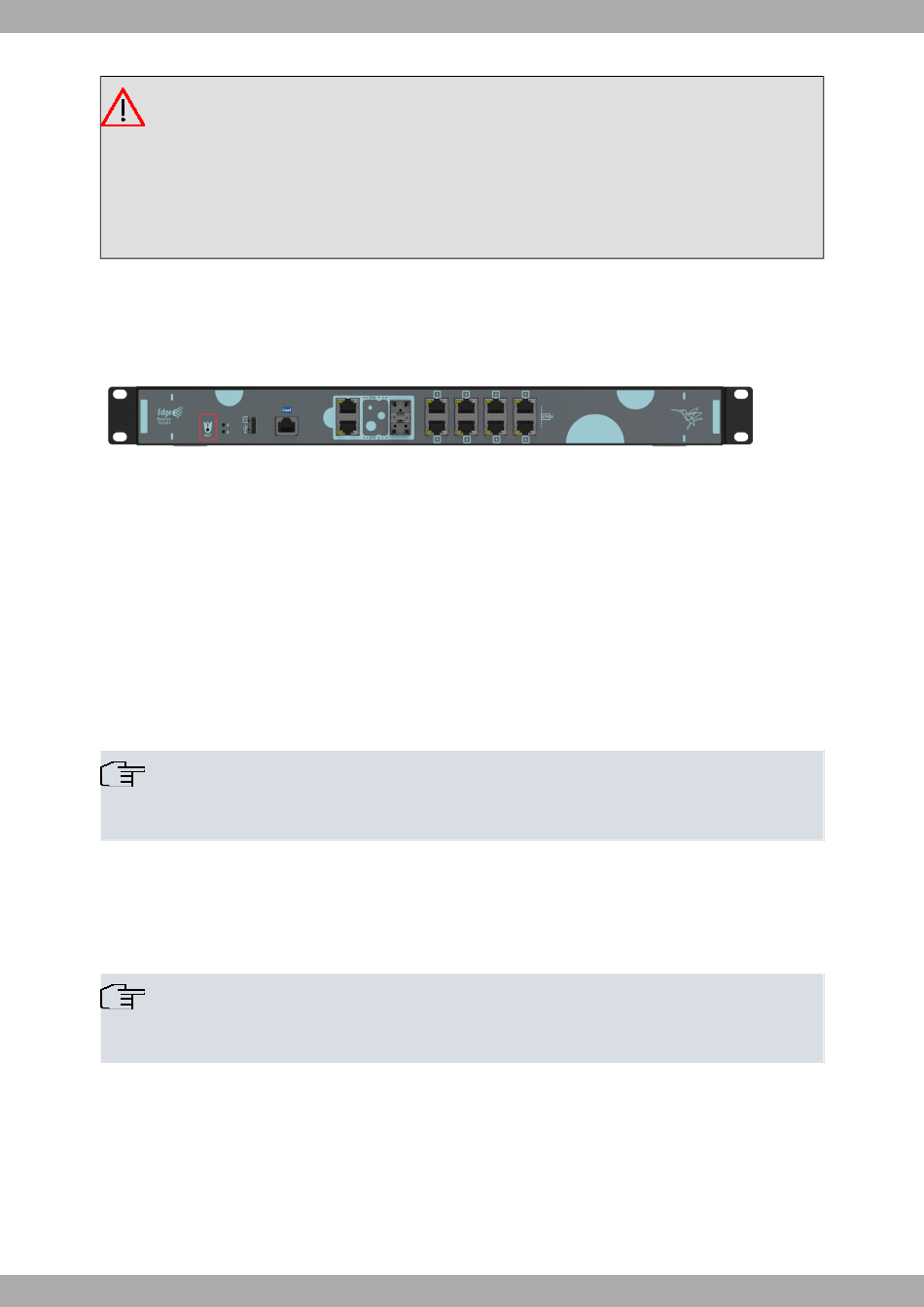

RST button
Fig. 11:

3.4.1 Rebooting the device

Once the device is operating normally, pressing the RST button will force a restart.

3.4.2 Default configuration

The RST button allows you to boot the device with its default configuration following these steps:
• With the device switched off, keep the RESET button pressed until the device switches on and the SYS LED blinks
(5 times per second).
• For the device to boot with the default configuration, release the Reset button while the SYS LED is blinking.
Note
This operation is destructive. The previous data and configuration will be deleted and replaced when
the default one.
Once the default configuration is running, the router's default configuration establishes the following access IP and
mask address:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization means your router's de-
fault configuration may be different from the one shown above.

3.5 Connecting the data

The M20 router has the following data connections.
10
