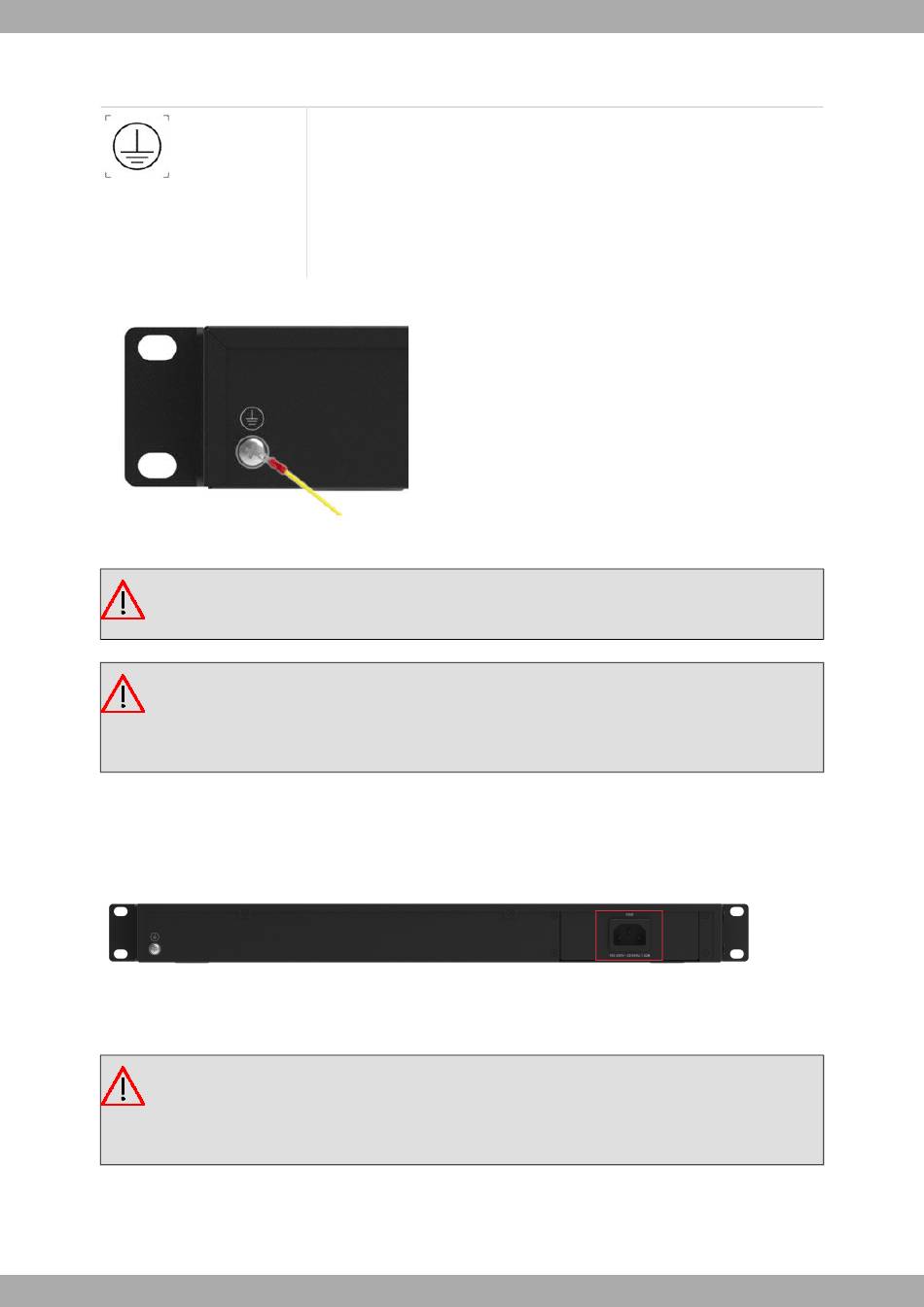

3.2.3.1 Ground the router
Ground connection
Fig. 9:
Warning
The earth connection must not be removed unless all supply connections have been disconnected.
Warning
The device must be installed in a restricted-access location. Its protective earthing terminal on the rear
side of the chassis must be permanently connected to earth to adequately ground the chassis and pro-
tect the operator from electrical hazards.

3.3 Power source

The M20 router is powered through one internal AC/DC source.
Fig. 10: Power Supply Connector
The electrical rating is printed below the power connector of the Power Connector.
Warning
Safety regulations require that the location where the equipment is installed must incorporate a discon-
nection device (thermal circuit breaker), that is duly approved and whose nominal current is equal to or
less than 10 A.
To avoid electric shocks, residual current circulation, and other unwanted effects that also affect communications, the
following is recommended:
M20 Edge Router
Ensure the rack on which the M20 is to be mounted is properly grounded in com-
pliance with ETSI ETS 300 253. Verify that there is a good electrical connection to
the grounding point on the rack (no paint or isolation surface treatment).
Attach an eye ring (not provided) to a #18 AWG minimum grounding wire (not
provided), and connect it to the grounding point on the rear panel of the M20 using
a 3.5 mm screw and washer. Then connect the other end of the wire to the rack
ground.
