STC micro STC8A8K64D4 Series Reference Manual page 855

STC8A8K64D4 Series Manual
2. Select the serial port number, set the same serial port baud rate as the lower computer
3. Open the source data file to be downloaded, either in Bin or Intel hex format
4. Click the "download data" button to start downloading data
The sixth step, how to use the firmware of the lower computer
The target file of the lower computer has two "IAPISP.hex" and "AP.hex". For a new single-chip computer, for the

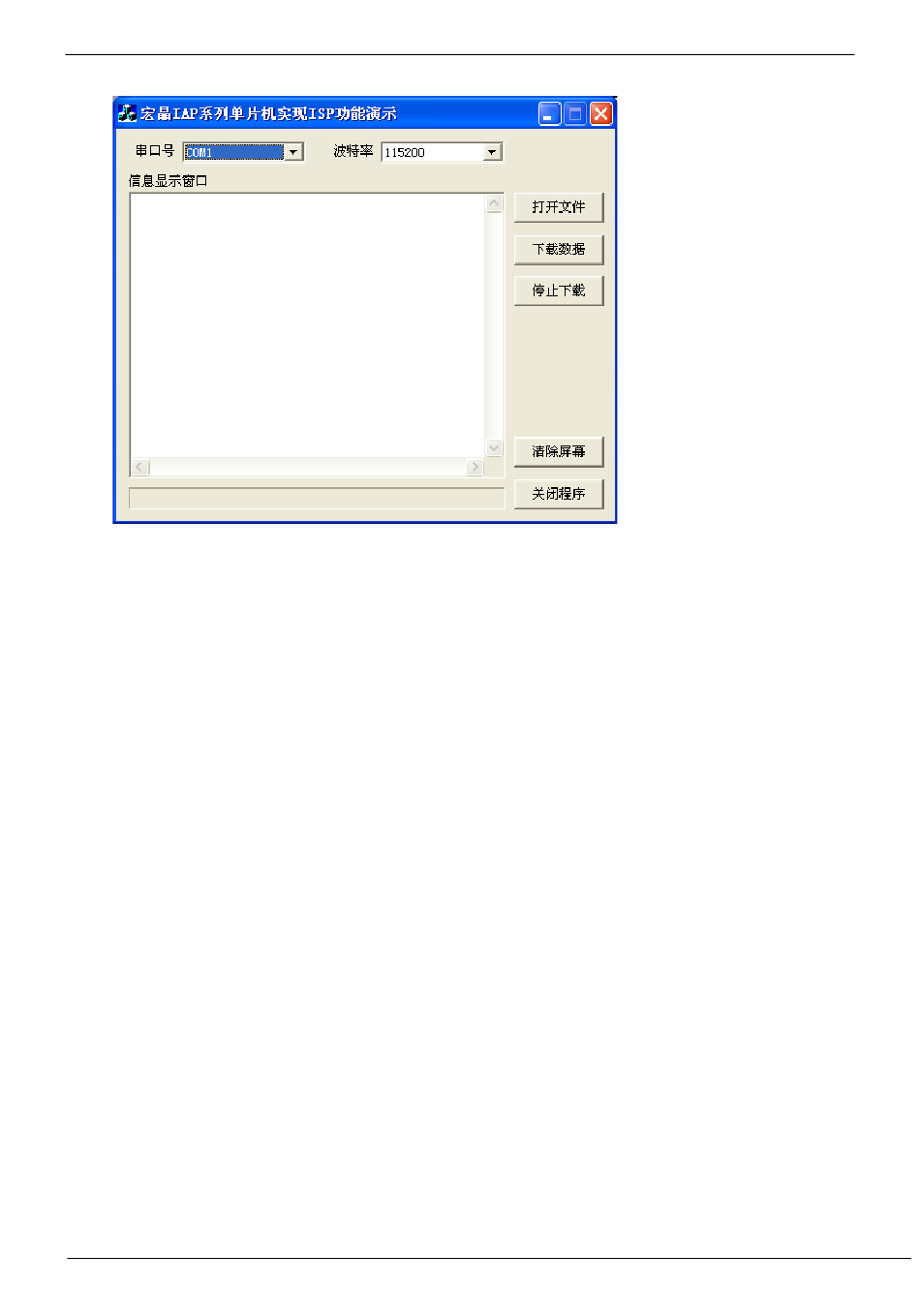

first time, you must use the ISP download tool of Acer Technology to write "IAPISP.hex" into the chip. As shown below.
No need to write after updating "IAPISP.hex" is the file. The "AP.hex" in the attachment is just a template for the user
program. When the download conditions are met, the user only needs to jump the PC value to the address of FA00H to
update the code.
- 839 -
