During the downloading process, the 4 LEDs on the U8W download tool will be displayed in marquee mode. After the
download is complete, if the download is successful, the 4 LEDs will be on and off at the same time; if the download
fails, all the 4 LEDs will be off.
The target chip is connected to U8W by the user system lead, and the user system supplies power to U8W for
offline download

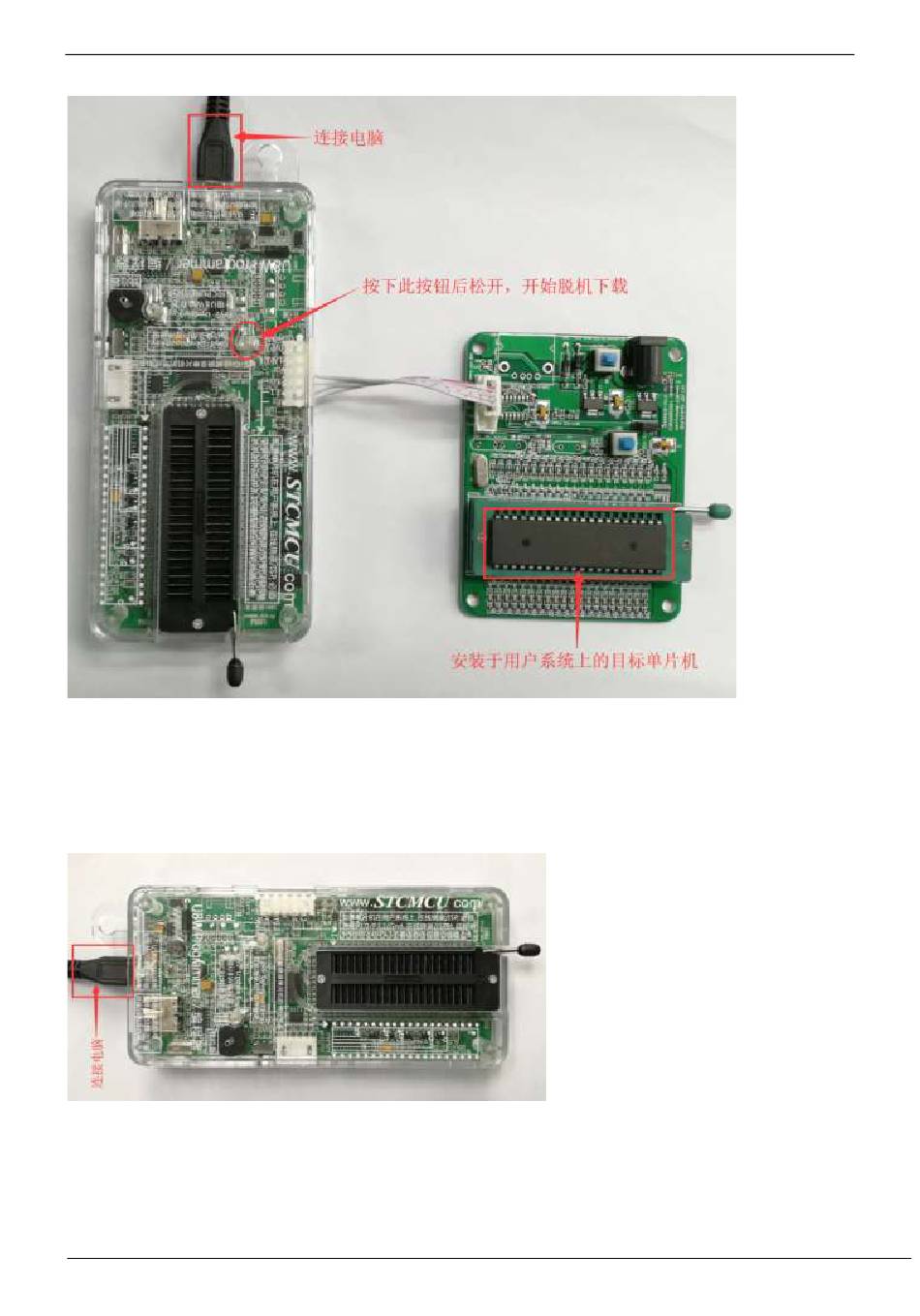

(1) Firstly, use the USB cable provided by STC to connect the U8W download board to the computer, as shown below:
(2) Set up in the STC-ISP download software according to the steps shown in the figure below:
It is recommended that users use the latest version of STC-ISP to download the software (please always pay
attention to the updates
http://www.STCMCUDATA.com. It is strongly recommended that users download the software from the official
website http://www.STCMCUDATA.com).
of the STC-ISP download software on the STC official website
