STC8A8K64D4 Series Manual

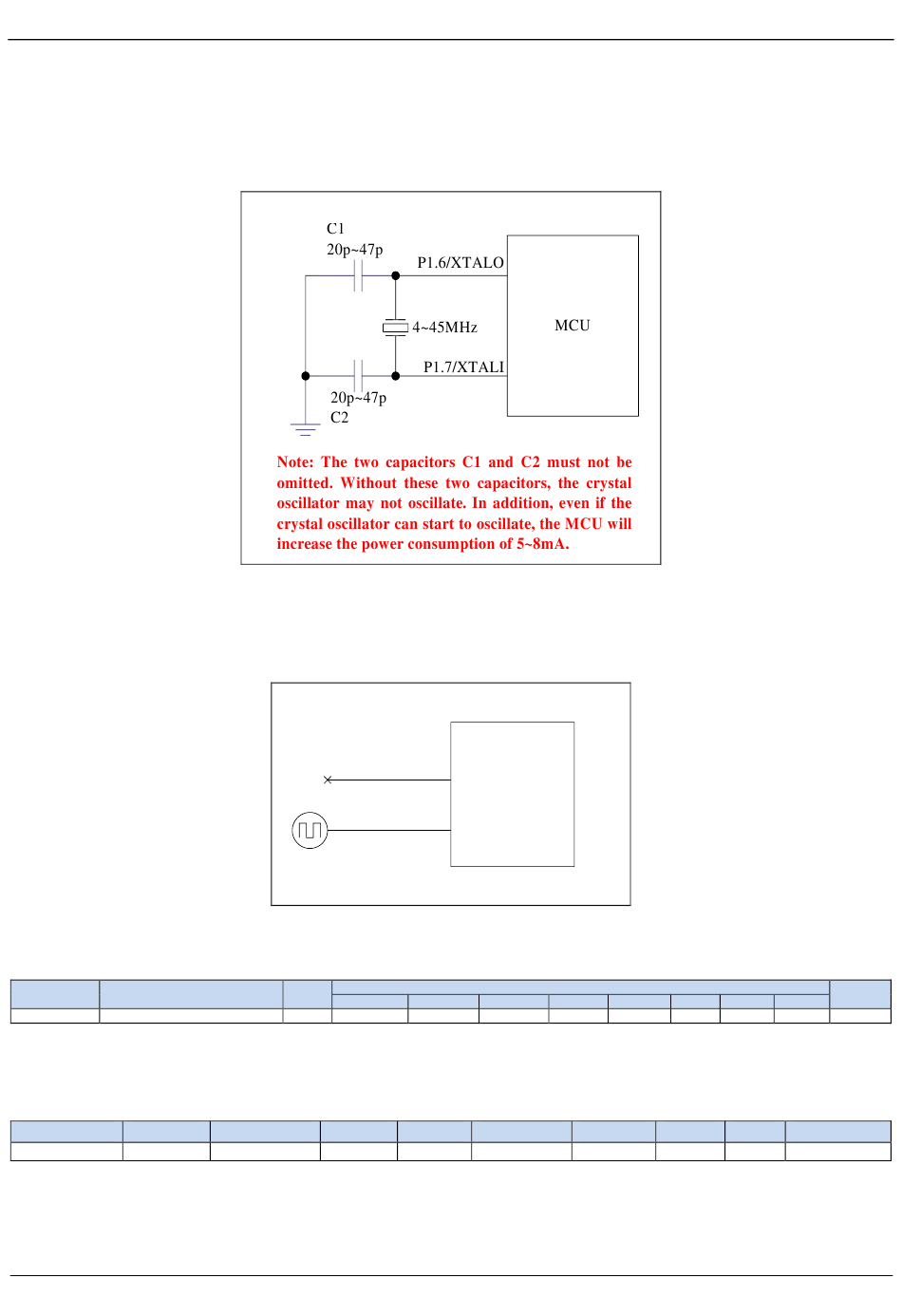

6.4 External crystal oscillator and external clock circuit

6.4.1 External crystal input circuit

6.4.2 External clock input circuit (P1.6 cannot be used as general I/O)

6.5 Clock stop / Power Saving Mode and System Power Management

Symbol Description
PCON Power control register

6.5.1 Power control register (PCON)

Symbol Address
PCON 87H
LVDF: Low voltage detection flag. When the system detects a low-voltage event, it is set by the hardware automatically and
an interrupt request to the CPU ocuurs. It should be cleared by user software.
POF: Power-On reset flag. It is set by the hardware automatically when power-off-on action occurs.
PD: Clock stop mode / Power-Down mode / Power stop mode control bit
0: No operation.
P1.6/XTALO
4~45MHz
P1.7/XTALI
Address
B7
87H SMOD
B7 B6
SMOD SMOD0
MCU
Bit Address and Symbol
B6 B5 B4
SMOD0 LVDF POF
B5 B4
LVDF POF
-
B3 B2 B1
GF1 GF0 PD
B3 B2 B1
GF1 GF0 PD
Reset
value
B0
IDL 0011,0000
B0
IDL
- 63 -
