Uscita alimentazione
motore Autocap
R2
4,7ohm 25W 5%
Autocap motor with resistor
CPS COLOR TITLE of SHEET:
Equipment S.p.A.
PROJECT:
Via dell'Agricoltura, 103
41038 S. Felice s/P
DWG no.:
MODENA - ITALY
CBShelf (electrical diagram page3.A2)
Proximity Input
"autocap Chiuso"
CNF1.7
T0233
CNM1
CNF1
M
ATT2
Close Autocap sensor

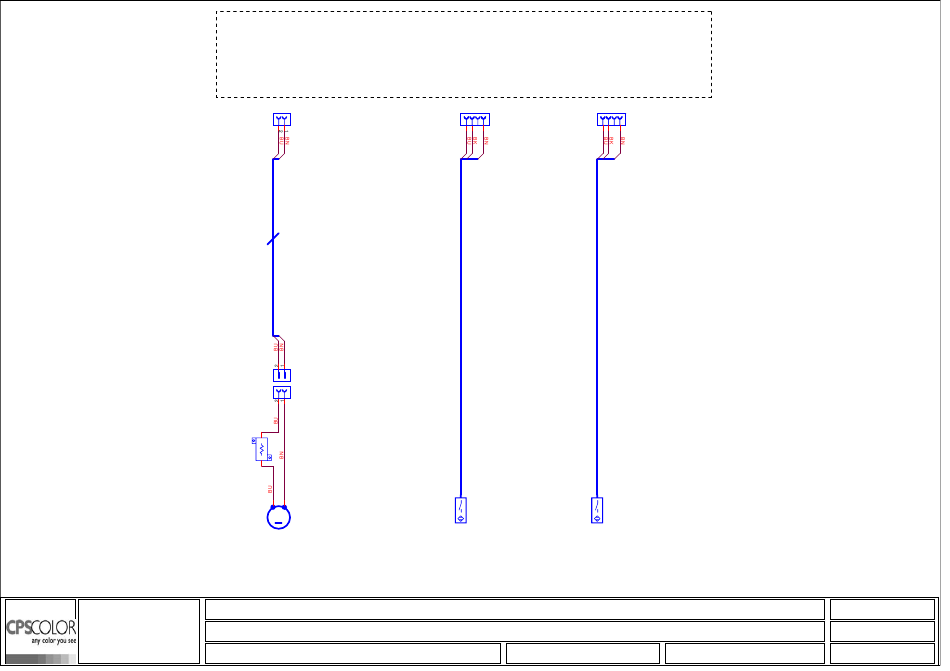

OPTION CONFIGURATION - Automatic Cap System
D400
BANCO.dsn
Proximity Input
"Autocap Aperto"
J11.7 J12.7
4 1 4 1
PX11 PX12
Open Autocap sensor
