5.3 Machine connection and start-up

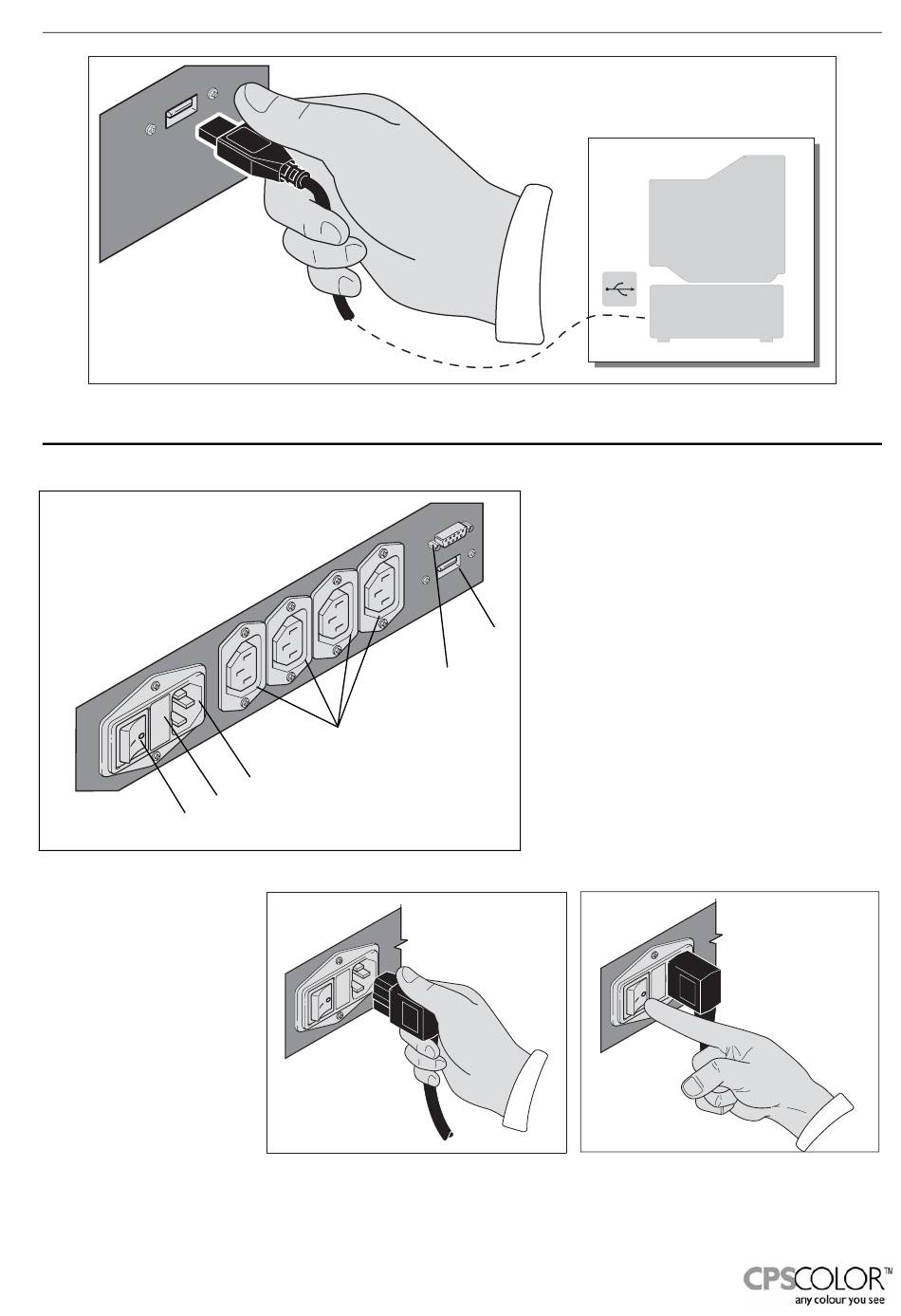

The following are present at the back of the machine:
1
To power up and start the machine, proceed as follows:
1. Insert the power
supply cable socket
into the main machine
plug, and the other
end to the mains
socket outlet.
2. Turn the main switch
ON (I).
Version 1.0 - rev0 - May 2006
4
3
2
Machine main switch_____________ (1)
Fuse compartment ______________ (2)
Main plug _____________________ (3)
Auxiliary sockets ________________ (4)
RS232 serial port _______________ (5)
6
USB port ______________________ (6)
5
5-5
