Cbmono - CPS COLOR COROB D200 Technical Manual

3-8

3.3 CBMono

The CBMono board is present when the machine mounts sequential circuits.
The CBMono board is a power peripheral controlled by the CBMaster board.
The purpose of this board is to activate, one at a time, the sequential pumping groups installed on the
machine.
The board is capable of carrying out the following operations:
activating one stepper motor at a time
–
reading one optic switch at a time
–
activating one stirring motor at a time
–
Connectors
J1 ÷ J16
Connectors to connect with the pumping groups.
(CBMono 16)
circuit 2 connected to J2, and so on...)
J1 ÷ J24
(CBMono 24)
J19
connection CBMaster - CBMono (input/output)
J100
input for power supplies +5, +24, +42

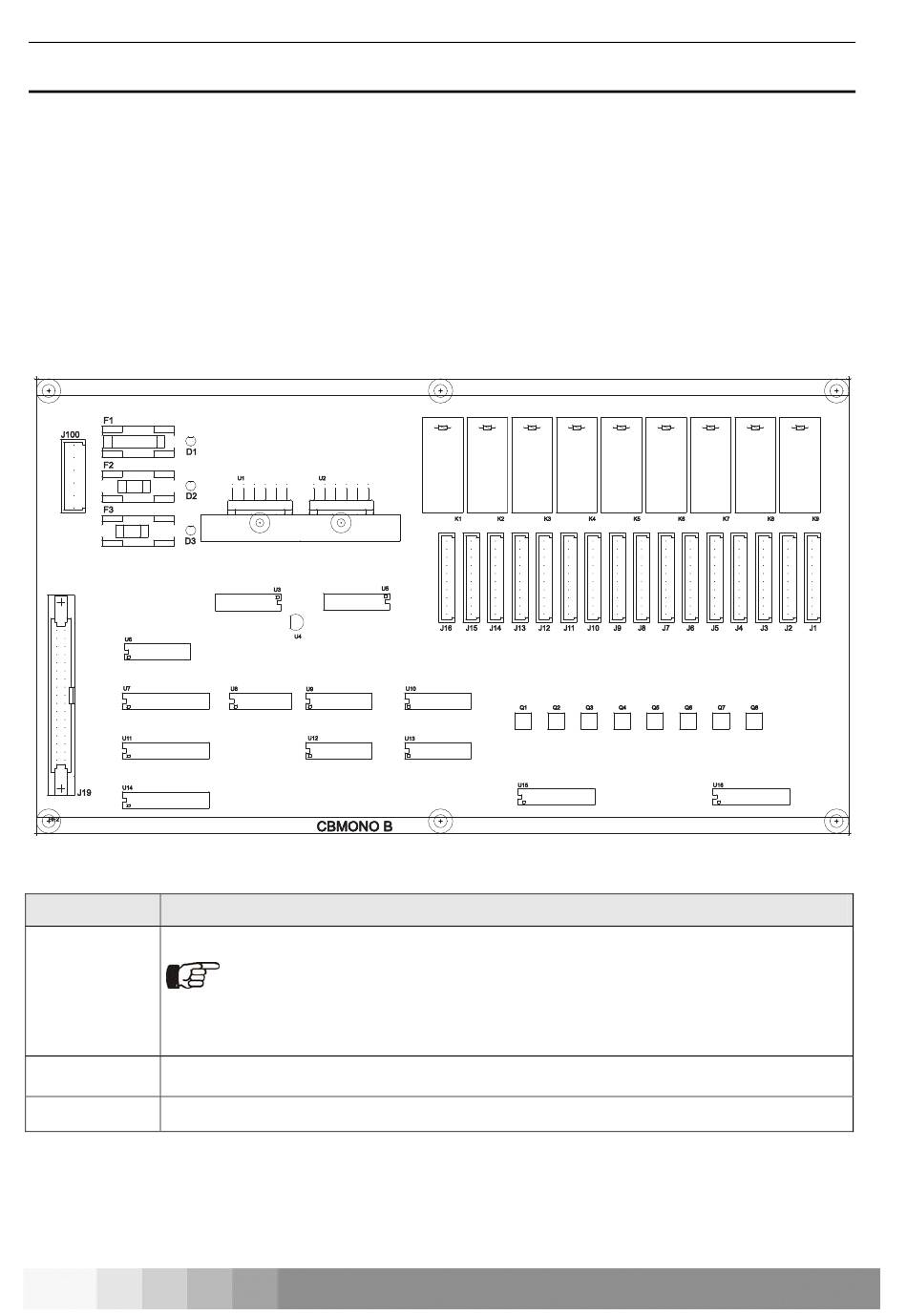

CBMono - 16 circuit version
Connector number must correspond to circuit number (circuit 1 connected to J1,
