3.2 CBMaster

The CBMaster board is the interface between the computer and the machine and generates the signals
necessary for the built-in machine electronics to execute commands.
The board receives the commands from the computer via serial port. The commands are interpreted by the
management firmware. A 16-character LCD Display mounted on the board displays messages related to the
firmware functions.
This board is loaded with a firmware. See chapter 3.11 to know the firmware version installed on this board.

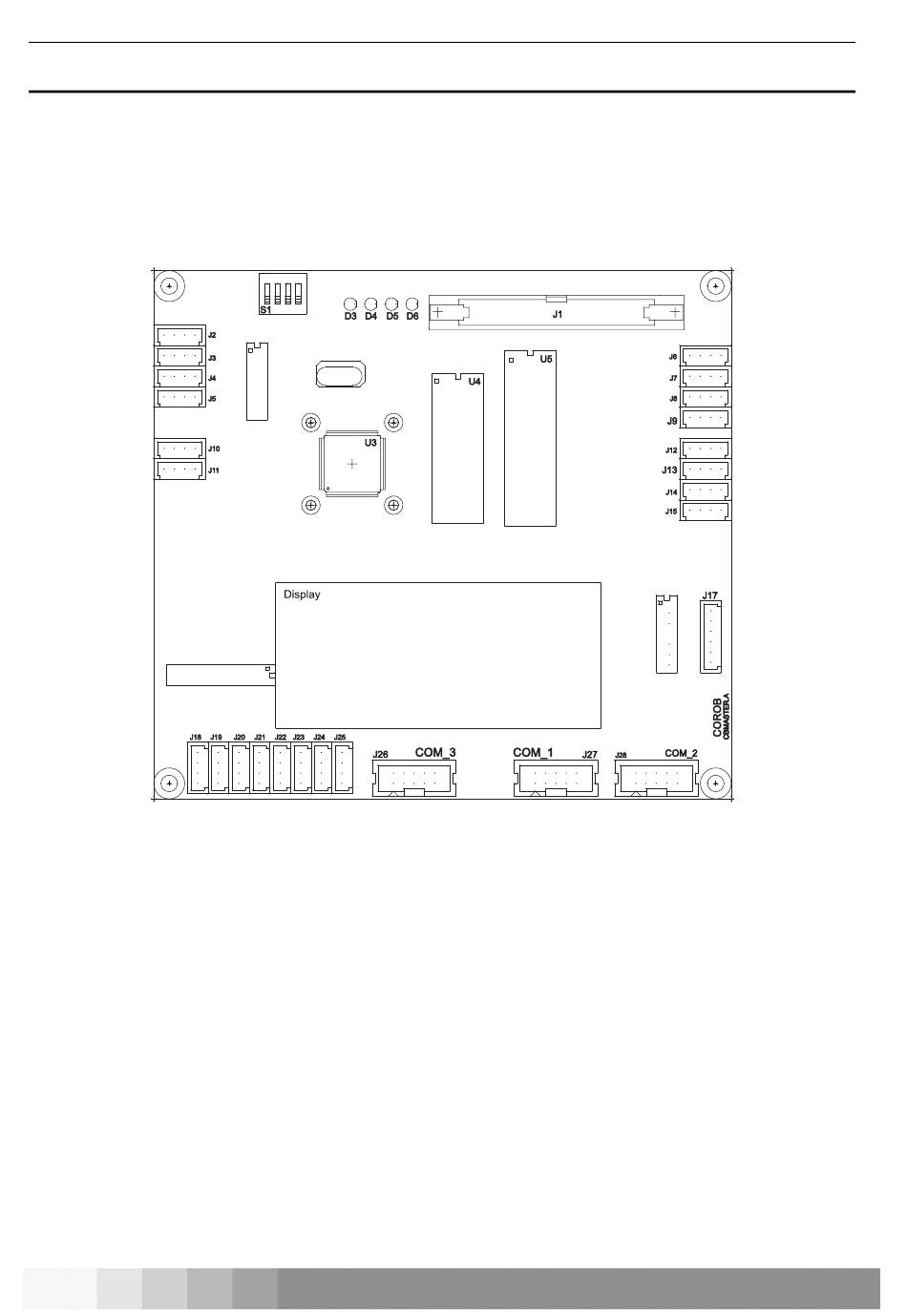

CBMaster_A
